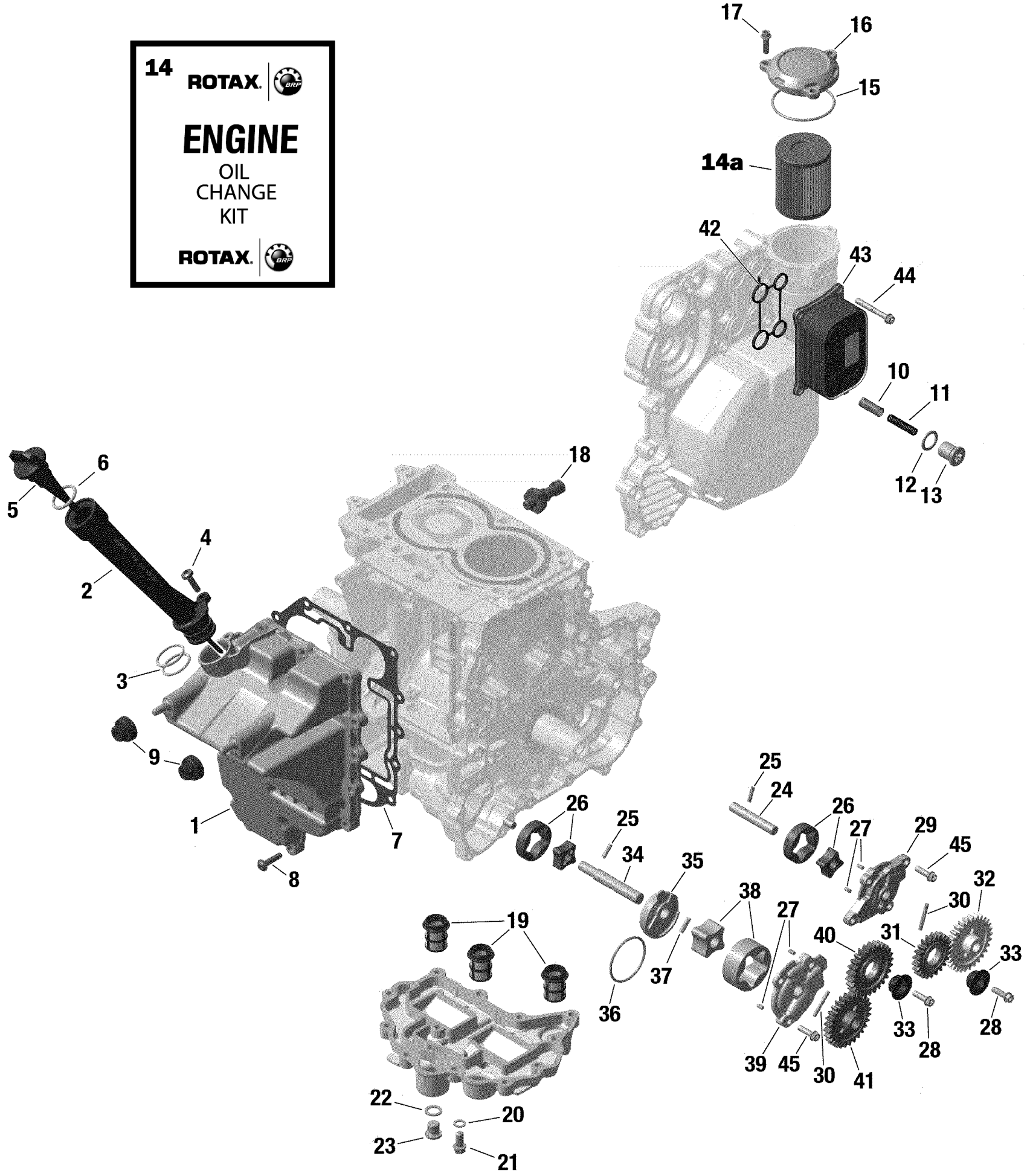

Ski-Doo EXPEDITION SPORT 600 ACE - 2022 Rotax - Lubrication Diagram

#

Description
Price

1

Oil Pump Cover

420956210

$93.49

2

Oil Filler Tube

420656901

$9.02

3

O-Ring

420430440

$3.43

4

Torx Flange Screw M6 X 20

420441386

$2.11

5

Oil Dipstick | Includes no. 5-6

420856670

$15.36

6

O-Ring

420631642

$2.11

7

Gasket

420431770

$17.53

8

Torx Flange Screw M6 X 25

420841549

$2.00

9

Rubber Grommet

420860150

$5.39

10

Pressure Regulating Piston

420256591

$14.22

11

Spring

420239445

$14.22

12

Gasket Ring

420430624

$1.89

13

Plug Screw

420441372

$10.33

14

Ski-Doo Oil Change Kit 0W40 600 ACE

9779253

$77.99

14a

Oil Filter

420956124

$20.99

15

O-Ring

420230923

$3.17

16

Oil Filter cover

420612135

$11.63

17

Torx Flange Screw M6 X 20

420440207

$3.06

18

Oil Pressure Switch

420256915

$40.99

19

Oil Sieve

420656680

$11.60

20

Sealing Ring

420950141

$2.00

21

Torx Flange Screw M8 X 16

420440852

$4.12

22

Copper Washer

420250640

$0.98

23

Plug Screw M12 x 1,5

420241701

$12.63

24

Oil Pump Shaft

420820120

$13.16

25

Needle Pin

420232731

$4.01

26

Oil Pump Rotor

420256348

$77.99

27

Needle Pin

420929075

$2.11

28

Torx Flange Screw M6 X 20

420440207

$3.06

29

Oil Pump Cover

420911080

$28.49

30

Needle Pin

420232431

$4.39

31

Gear 22 Teeths

420835400

$20.49

32

Oil Pump Gear, 29 Teeth

420834882

$11.60

33

Spacer

420947394

$24.99

34

Oil Pump Shaft

420837916

$24.99

35

Oil Pump Cover

420611950

$56.99

36

O-Ring

420631830

$2.11

37

Needle Pin

420632221

$4.44

38

Oil Pump Rotor

420256836

$75.99

39

Oil Pump Cover

420611980

$36.99

40

Idle Gear, 26 Teeth

420835321

$24.99

41

Oil Pump Gear, 28 Teeth

420834887

$11.60

42

Gasket

420431871

$11.60

43

Oil Water Heat Exchanger

420656698

$116.49

44

Torx Flange Screw M6 X 45

420440324

$0.98

45

Torx Flange Screw M6 X 20

420440207

$3.06
