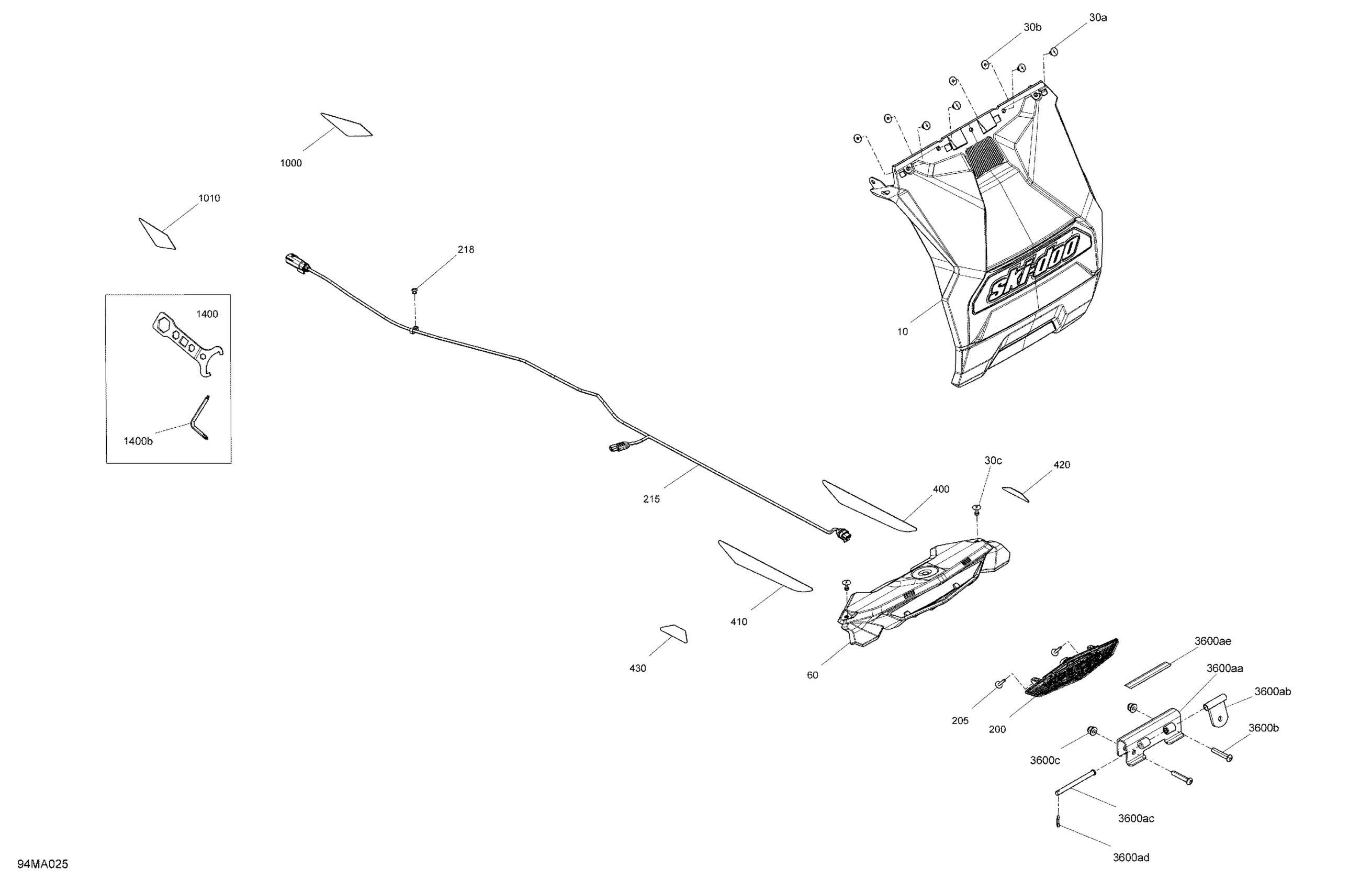

Ski-Doo EXPEDITION SPORT 600 ACE - 2021 Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001863

$128.33

30a

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

30b

Washer

517124300

$0.18

30c

Pop Rivet 3/16"

293150100

$1.04

Light Fairing

520001487

$18.63

200

Rear Light

520001143

$74.60

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

215

Rear Light Harness

515178822

$55.19

218

Pop Rivet 3/16"

390402200

$0.30

400

Red, RH Rear Reflector

520001900

$16.39

410

Red, LH Rear Reflector

520001901

$16.39

420

Red, RH Rear Reflector

520001842

$4.51

430

Red, LH Rear Reflector

520001860

$4.51

1000

RH Front Reflector

520002343

$7.72

1010

LH Front Reflector

520002344

$9.67

1400

Tool Kit | Includes 1400 to 1400b

520001767

$51.99

1400b

Key

520001815

$11.99

3600aa

Support

511000768

$28.33

3600ab

Hitch Plate Welded

511000521

$14.10

3600ac

Lock Pin

511001451

$8.31

3600ad

Cotter Pin

371800200

$0.49

3600ae

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600b

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.01

3600c

Elastic Flange Nut M8

233281466

$0.96
