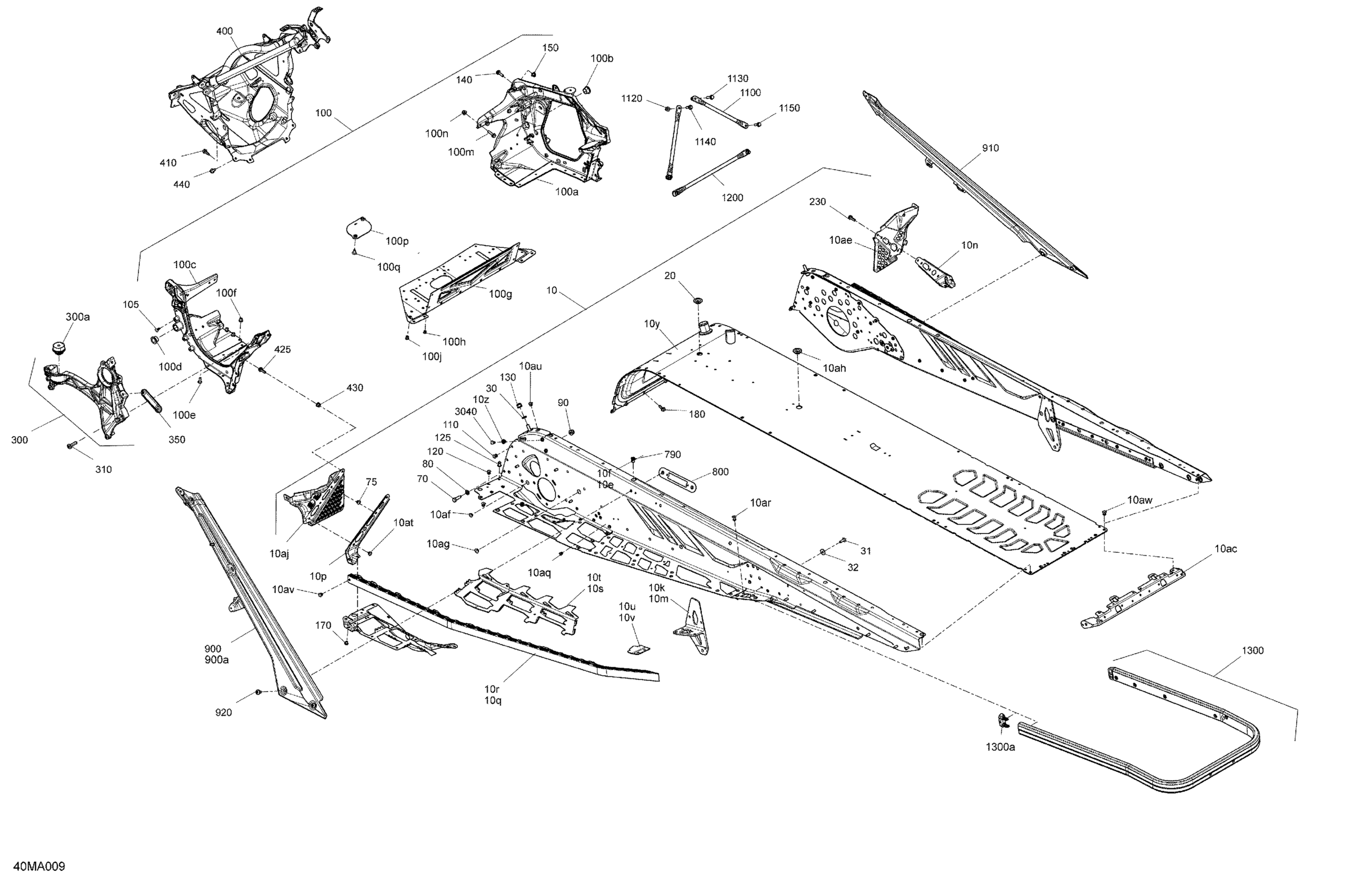

Ski-Doo EXPEDITION SPORT 600 ACE - 2021 Frame - System - Sport Diagram

Chassis Tunnel Module 154 | Includes 10 to 10a39

415130857

$3,139.52

RH Footrest Reinforcement

518332578

$79.07

LH Footrest Reinforcement

518332577

$79.07

RH Rear Suspension Support

518334407

$37.28

LH Bracket

518329632

$64.15

Stirrup Reinforcement

518331253

$17.88

Deep Black, LH Chasssis Reinforcement

518331560

$17.88

RH Roller

518328451

$175.34

LH Roller

518328452

$175.34

RH Central Tunnel Reinforcement

518331564

$32.06

LH Central Tunnel Reinforcement

518331565

$32.06

LH Reinforcement Plate

518329088

$2.99

RH Reinforcement Plate

518329089

$4.09

Radiator Tunnel 154 Ass'y

518334491

$658.93

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Rear Cap

518328990

$20.12

RH Footrest

518330691

$20.12

Full Moon Dart 8 mm

293730041

$2.06

Full Moon Dart 10 mm

293730059

$4.28

Black, Plug

293730052

$6.18

LH Foot Protector

518331559

$23.10

Rivet Avibulb 3/16

293150203

$0.28

Rivet

293150183

$2.00

Hemlock Rivet, 6.5 mm

293150096

$3.07

Hemlock Rivet, 6.5 mm

293150119

$3.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Black, Plug

293730052

$6.18

Flat Washer 8 mm

234081410

$0.79

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Flat Washer

224061201

$1.27

Hex Screw M8 X 30

250000942

$1.06

Hemlock Rivet, 6.5 mm

293150096

$3.07

Flat Washer 8 mm

234081410

$0.79

Hex. Flange Elastic Nut M8

233281414

$1.31

Engine Chassis Module Ass'y | Includes 100 to 100m

518332686

$553.70

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$181.31

Leg Bushing

505072690

$5.75

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$181.31

Leg Bushing

505072690

$5.75

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

Collar Huck Magna-Grip 6.4

293150149

$0.36

Bottom Plate

518332715

$33.55

Rivet Avibulb 3/16

293150203

$0.28

Insert M5 X 0.8

293450268

$1.90

Hex. Flange Screw M6 X 25

250000945

$4.15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Oil Plate

518329454

$14.88

Torx Truss Screw M6 X 12

250000767

$1.91

Dart

293730079

$1.87

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Hemlock Rivet, 6.4 mm

293150174

$6.24

Hemlock Rivet 6.5 mm

293150120

$7.01

Hex. Flange Elastic Nut M8

233281414

$1.31

Hex. Flange Screw M6 X 20

207662046

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Insert M5 - 0.8

293450267

$4.09

Hex. Flange Screw M6 X 16

207661646

$1.15

Hex. Flange Screw M6 X 20

207562056

$2.00

LH Side Member Ass'y | Includes 300 to 300b

518333691

$176.09

Vibration Damper

512061516

$55.94

Screw-Pan HD.Torx M8X30

250001060

$0.75

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$9.40

Chassis Suspension Module

518334461

$633.55

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

Hex. Flange Screw M6 X 20

207562056

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Insert

293450278

$3.97

Member Fixation Plate

518329480

$9.73

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$105.19

RH Rear Diagonal Cross Member

518330885

Unavailable

Black, RH Member Ass'y | Black

518330880

$105.19

Pan Head Torx Screw M8 X 12

250000887

$1.79

Upper Colomn Support

518329370

$20.12

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Hex. Flange Screw M6 X 25

207662556

$4.15

Hex. Flange Screw M6 X 20

207662046

$2.00

Hex. Flange Screw M6 X 20

207562056

$2.00

Center Column Support

518329755

$3.36

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$152.21

Bumper Cap

520001629

$0.93

Dart

293730079

$1.87
