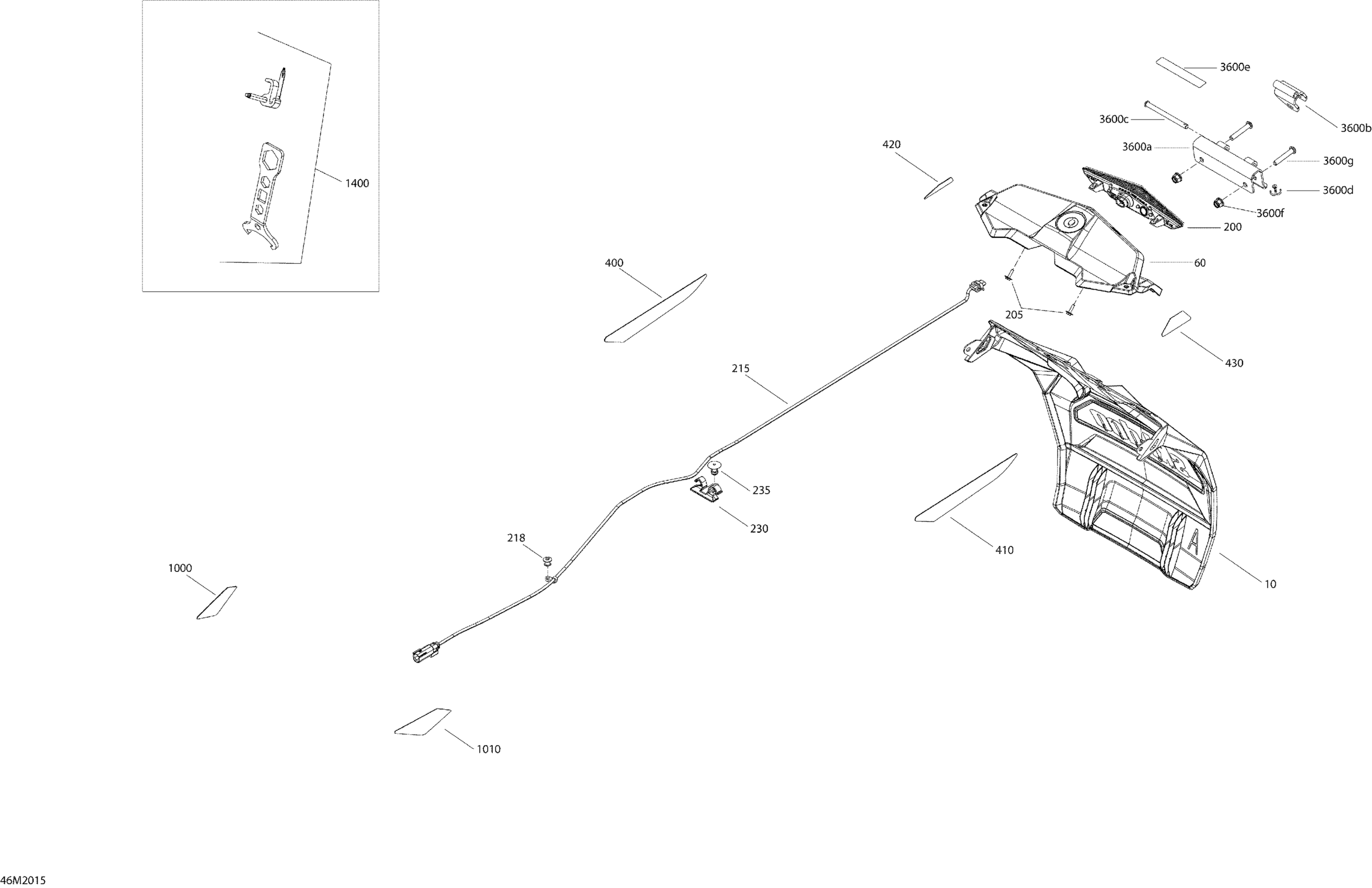

Ski-Doo EXPEDITION SPORT 600 ACE - 2020 Utilities Diagram

Description

Price

Snow Gard Ass'y

520001863

$132.28

Light Fairing

520001487

$19.20

200

Rear Light

520001143

$75.99

205

Screw M4 X 16

250000725

$2.87

215

Rear Light Harness

515178822

$56.89

218

Pop Rivet 3/16"

390402200

$0.26

230

Cap

520001722

$8.91

235

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

400

Red, RH Rear Reflector

520001900

$16.89

410

Red, LH Rear Reflector

520001901

$16.89

420

Red, RH Rear Reflector

520001842

$4.65

430

Red, LH Rear Reflector

520001860

$4.65

1000

RH Front Reflector

520002343

$7.95

1010

LH Front Reflector

520002344

$9.97

1400

Tool Kit | Includes 1400 to 1400b

520001767

$51.99

3600a

Support

511000768

$29.20

3600b

Hitch Plate Welded

511000521

$14.54

3600c

Lock Pin

511001451

$8.57

3600d

Cotter Pin

371800200

$0.51

3600e

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600f

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.23

3600g

Elastic Flange Nut M8

233281466

$0.83
