Description

Price

10a

Fixed Flange Ass'y

417224091

$309.99

10d

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$319.99

10e

Bushing

417222758

$22.49

10f

Circlip

293370037

$3.19

10g

Ramp 716 Ass'y

417223508

$38.99

10h

Thrust Washer

417223255

$2.00

10j

Ramp Axle

417223694

$11.05

10k

Nut-Stop Elastic DIN.985

417224336

$0.87

10m

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.99

10n

Circlip

293370065

$0.98

10p

Seat Spring

417223752

$15.27

10q

Clutch Spring

417223745

$17.39

10r

Torx Screw M6 X 30

250000580

$6.08

10s

Governor Cup Ass'y

417223865

$274.99

10t

Roller

417223767

$11.59

10u

Roller Axle

417223257

$6.99

10v

O-Ring

293300185

$0.98

10w

Slider Shoe

417223919

$6.83

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt

417300432

$41.49

100a

Sheave Driven Pulley Fixed Ass'y | Includes 100a to 100a6

417127751

$459.99

100b

Pulley Roller

417127016

$24.49

100c

Pivot Stud

417127294

$14.49

100d

Lock Washer 8 mm

250200009

$2.11

100f

Spring Pin

250400070

$2.00

100g

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

100h

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100k

Circlip

293370049

$4.99

100m

Cam Driven Pulley Ass'y | Includes 100c to 100c3

417127747

$127.99

100n

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100q

Circlip

293370049

$4.99

100r

Release Spring

417127467

$46.49

100s

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100v

Calibration Ass'y

415129604

$21.49

100w

Socket Screw M5 X 25

250000981

$1.68

100x

Flat Washer M5

234051410

$0.53

100y

Elastic Stop Nut M5

232551414

$0.87

100z

Washer

417127155

$8.26

100aa

Ball Bearing

504152574

$35.99

200

Drive Belt

417300585

$154.99

300

Belt Guard

417300479

$77.99

330

Front Retaining Hook

417300525

$10.49

340

Avex Rivet

390909200

$0.30

360

CVT Cooling Duct

417300557

$28.99

370

Pop Rivet 3/16"

293150103

$0.55

450

Front Guard Support

417300583

$14.49

480

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

500

Rear Guard Support

417300581

$13.99

520

Hair Pin

114045200

$11.11

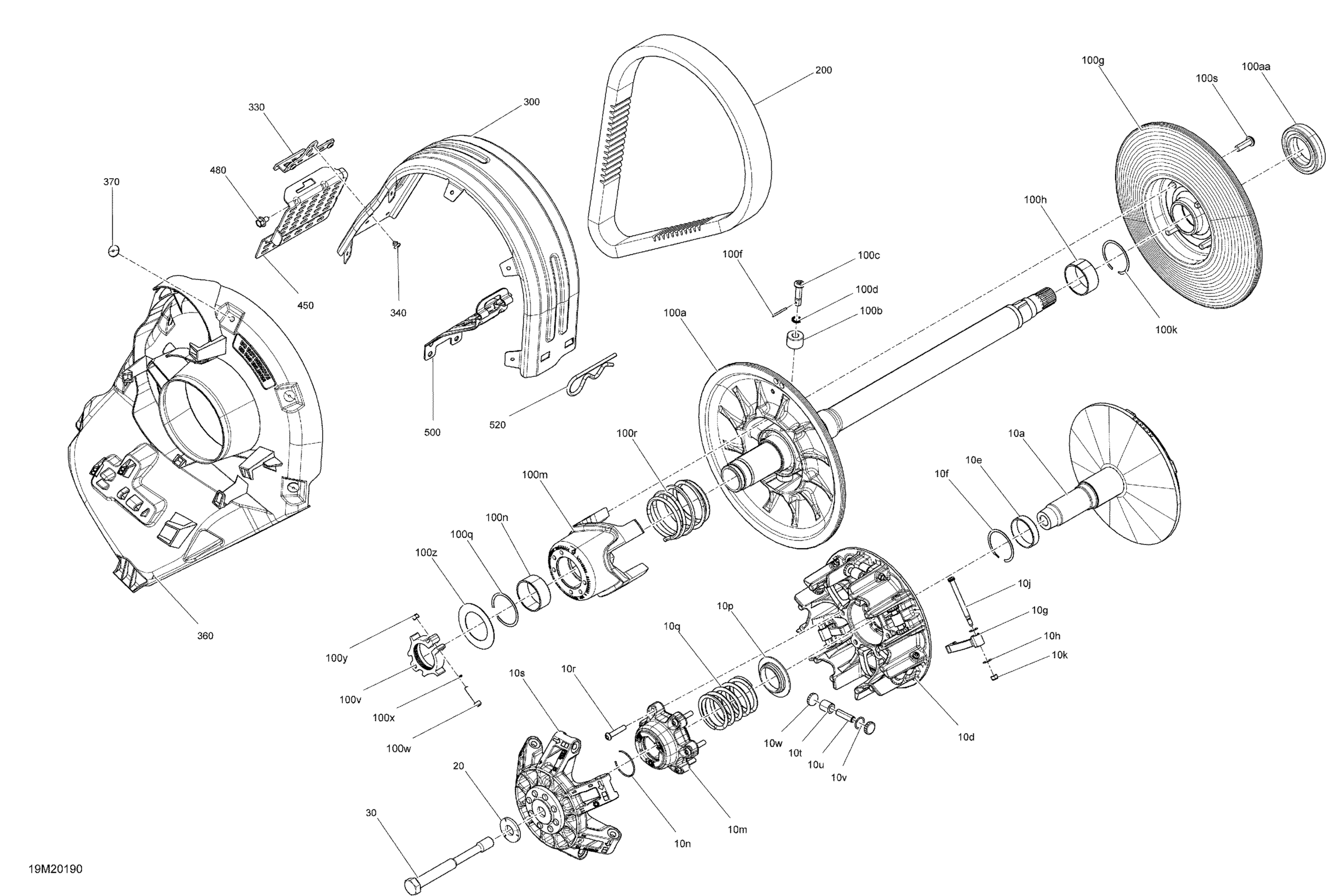

Ski-Doo 002 - EXPEDITION SPORT 600 ACE - North America, 2020 05- Pulley - System Diagram

Fixed Flange Ass'y

Sliding Flange Ass'y | Includes 10b to 10b3

Bushing

Circlip

Ramp 716 Ass'y

Thrust Washer

Ramp Axle

Nut-Stop Elastic DIN.985

Spring Cover Ass'y | Includes 10j to 10j3

Circlip

Seat Spring

Clutch Spring

Torx Screw M6 X 30

Governor Cup Ass'y

Roller

Roller Axle

O-Ring

Slider Shoe

Conical Spring Washer M14

Pulley Drive Bolt

Sheave Driven Pulley Fixed Ass'y | Includes 100a to 100a6

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin

Slider Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Driven Pulley Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Release Spring

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Front Retaining Hook

Avex Rivet

CVT Cooling Duct

Pop Rivet 3/16"

Front Guard Support

Flange Screw M6 X 10, Scotch Grip

Rear Guard Support

Hair Pin
