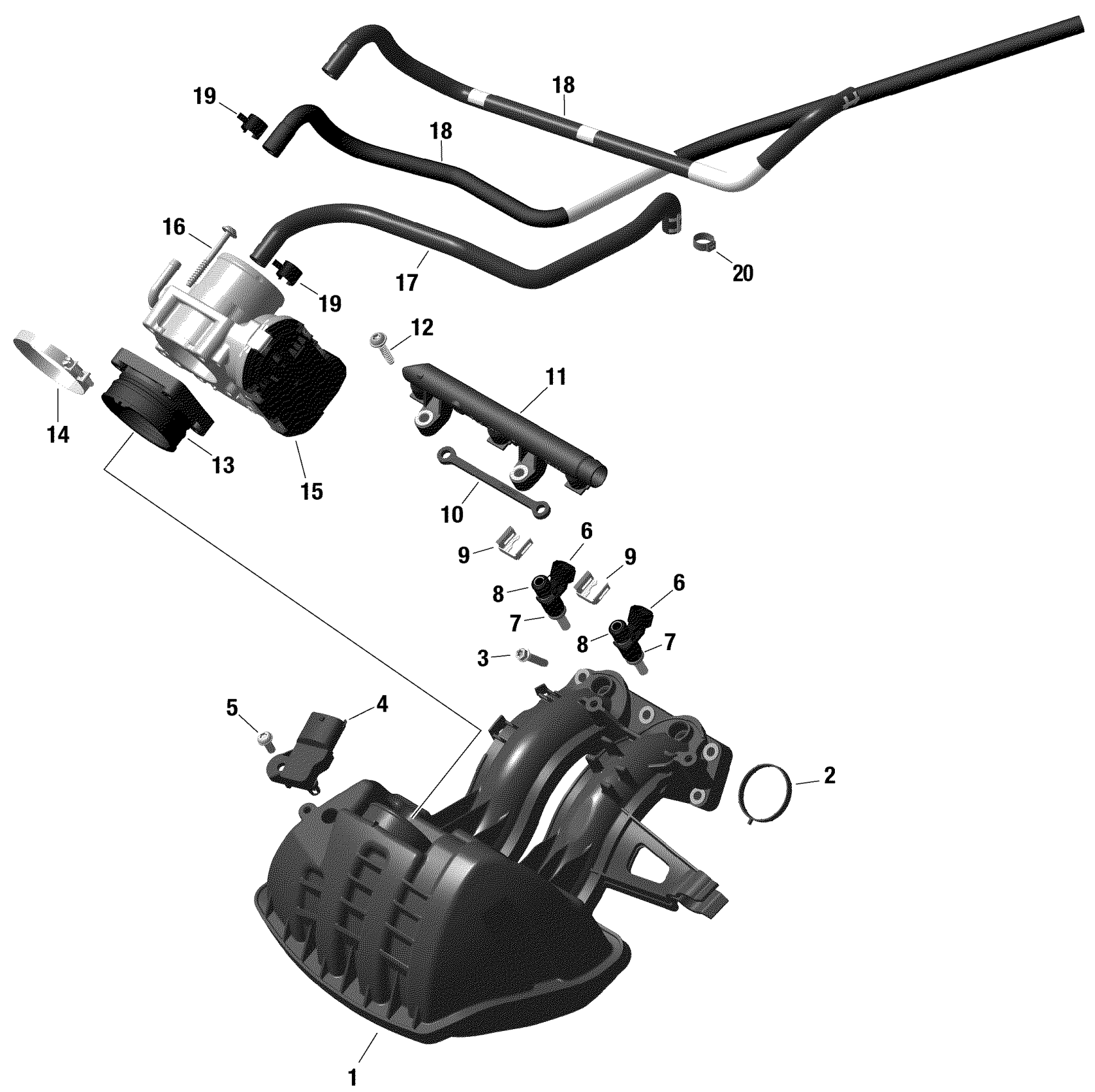

Ski-Doo 002 - EXPEDITION SPORT 600 ACE - North America, 2020 01- Engine - Air Intake Manifold And Throttle Body 1 Diagram

Description

Price

Airbox Ass'y | Includes no. 1-2

420867022

$204.99

Gasket

420431660

$11.60

Torx Flange Screw M6 X 30

420440647

$2.00

Pressure And Temperature Sensor

707000995

$88.99

Torx Flange Screw M6 X 16

420641588

$2.11

Injection Valve

420874855

$169.49

O-Ring

420831050

$20.49

O-Ring

420430775

$4.29

Injector Clip

420853030

$3.09

Not Available As Spare Part - Friction Washer

Unavailable

Fuel Rail

420874961

$16.99

Torx Screw 6X30

420441575

$3.06

Intake Neck

420867110

$35.99

Hose Clamp

420251830

$14.28

Throttle Body

420893148

$381.49

Torx Flange Screw M6 X 50

420441588

$4.44

Molded Hose

420201490

$19.99

Molded Hose

420201506

$30.49

Clamp

420853511

$7.51

Clamp

420853308

$5.39
