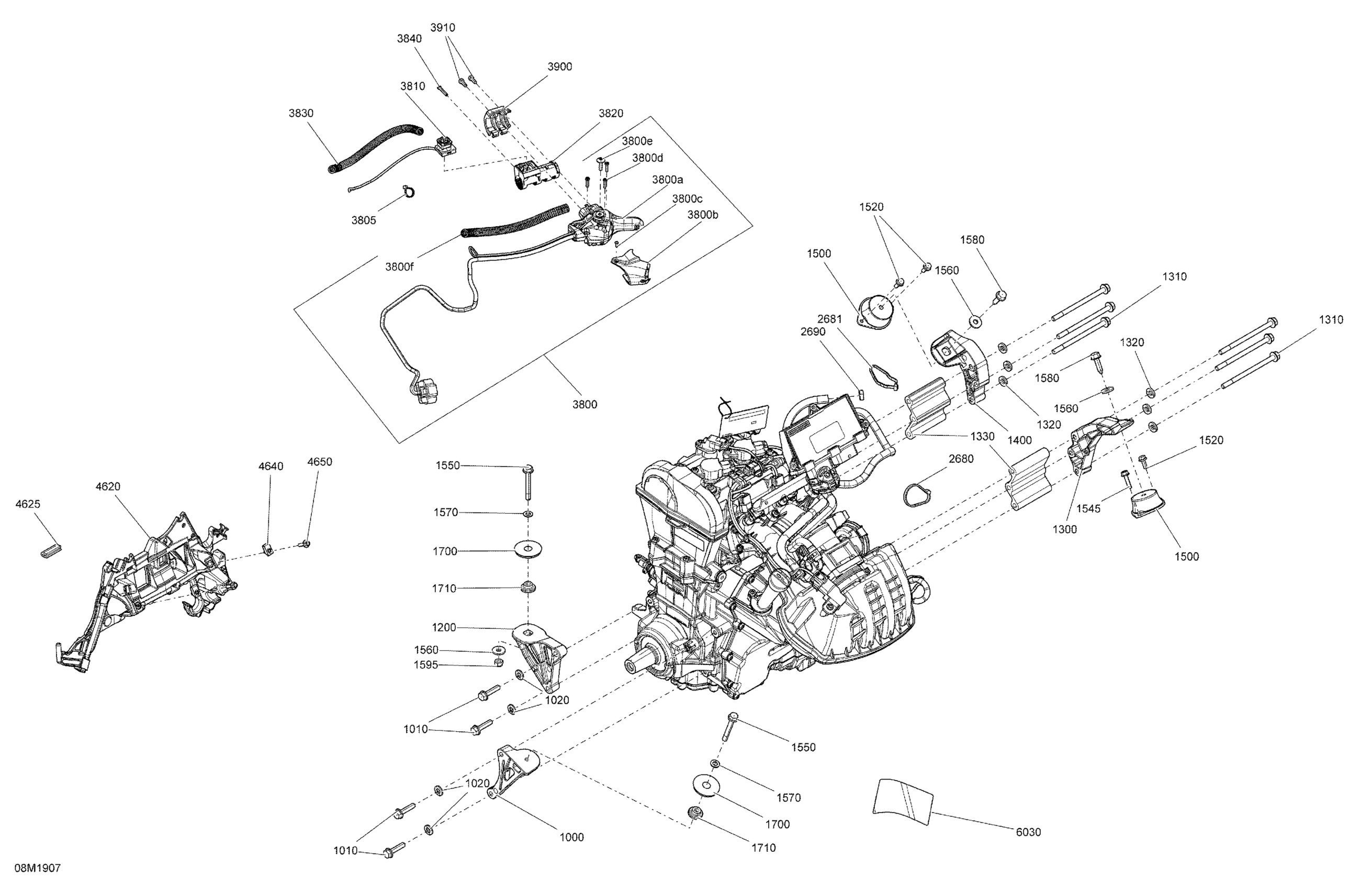

Ski-Doo 002 - EXPEDITION SPORT 600 ACE, 2019 01- Engine - 600 ACE Diagram

#

Description
Price

1000

Rear Support PTO

512061139

$24.99

1010

Hex. Flange Screw M8 X 35

250000986

$2.11

1020

Conical Spring Washer M8

250200146

$1.01

1200

Front Support PTO

512061140

$20.99

1210

Hex. Flange Screw M8 X 35

250000986

$2.11

1220

Conical Spring Washer M8

250200146

$1.01

1300

Rear Support MAG

512061142

$28.99

1310

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$13.16

1320

Conical Spring Washer M8

250200157

$2.11

1330

Shim

512060505

$43.49

1400

Front Support MAG

512061141

$21.99

1410

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$13.16

1420

Conical Spring Washer M8

250200157

$2.11

1500

Rubber Mount

512060729

$65.99

1520

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1540

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1545

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.11

1550

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

1560

Yellow, Washer

503183200

$3.19

1570

Flat Washer With Teflon 8 mm

250200008

$3.80

1580

Cone Screw, M8 X 30

250000257

$1.89

1595

Hex. Elastic Stop Nut M8

232581414

$0.56

1700

Stopper

512061203

$14.22

1710

Spacer

512060285

$19.99

2680

Tie-Rap 180 mm

414115200

$0.11

2681

Tie Wrap 368 mm

293750008

$1.04

2690

Oetiker Gear Clamp

293650025

$3.09

3800

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$339.99

3800a

Handle Ass'y kit

415130047

$104.99

3800b

Cap

512060862

$13.49

3800c

Torx Screw M2.9 x 9.5

250000623

$3.17

3800d

Torx Screw

250000671

$1.01

3800e

Torx Screw M5 X 20

250000528

$2.11

3800f

Protector Tube

515177716

$4.55

3805

Tie Wrap 142 mm

293750002

$1.25

3810

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

3820

Switch Support

512061453

$9.28

3830

Protector Tube

515177716

$4.55

3840

Torx Screw #8-18

250000263

$1.04

3900

Front Housing

512060987

$8.57

3910

Torx Screw M5 X 14

250000632

$7.51

4620

Module Support

512060994

$16.33

4625

Trim 1000Mm Long

219704354

$15.99

4630

Tie Wrap 368 mm

293750008

$1.04

4640

Panel Nut M5 X 0.8

250000958

$4.23

4650

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

6030

Decal Checking Engine Oil

516007500

$11.49
