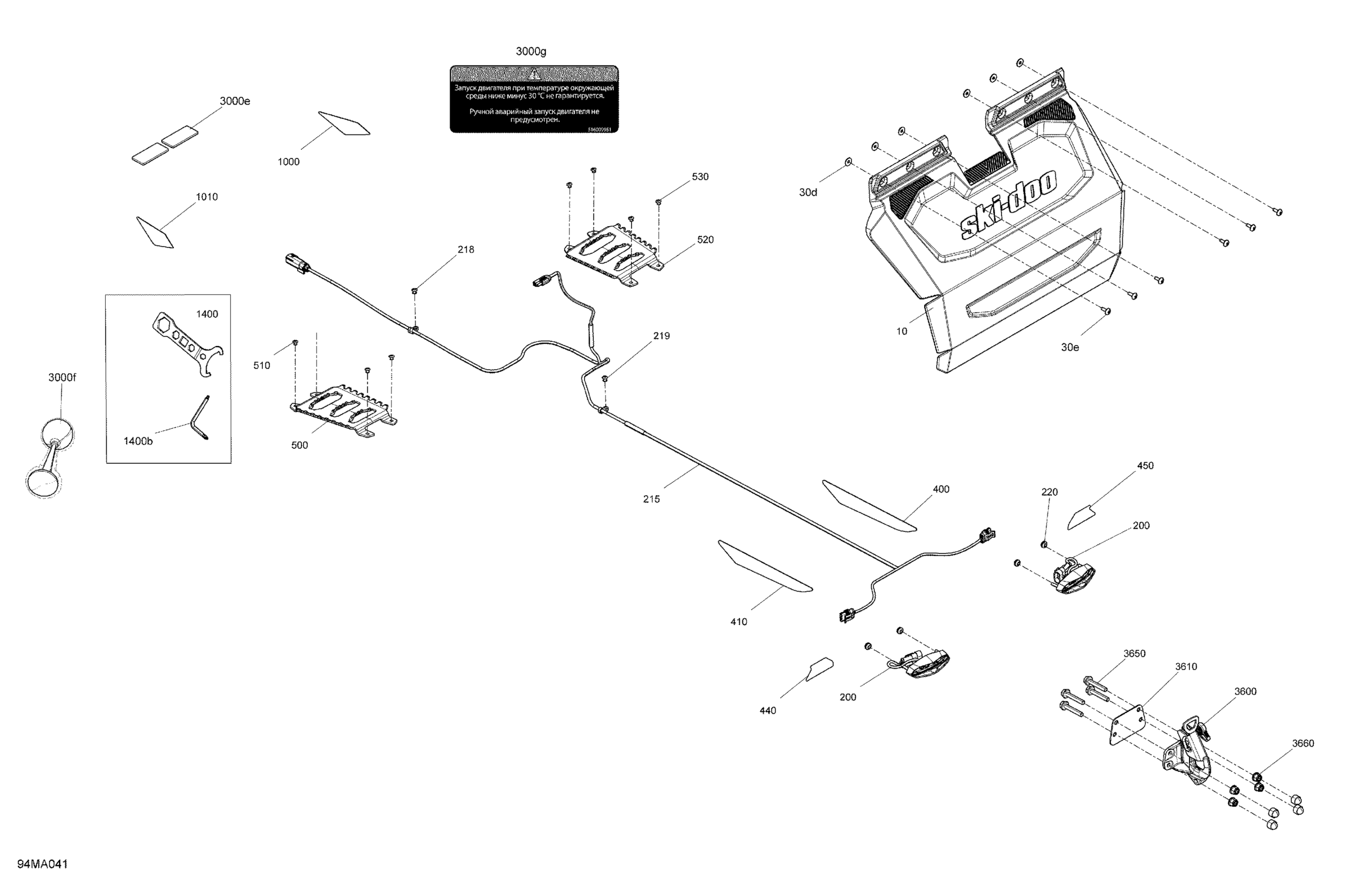

Ski-Doo EXPEDITION LE 900 ACE, Europe, 2021 Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520001712

$106.99

30d

Washer M5

250200025

$0.74

30e

Forming Screw M5 x 16

250000676

$1.01

200

Tail Light

520002636

$105.99

215

Taillight Wiring Harness

515178633

$58.99

218

Pop Rivet 3/16"

390402200

$0.35

219

Pop Rivet 3/16"

390402200

$0.35

220

Grommet

293720101

$0.77

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

440

LH Rear Red Reflector

520001740

$4.99

450

RH Rear Red Reflector

520002016

$4.99

500

Deep Black, Passenger Footrest

520002896

$48.99

510

Rivet 3/16"

293150102

$0.70

520

Deep Black, Passenger Footrest

520002896

$48.99

530

Rivet 3/16"

293150102

$0.70

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

3000d

Red, Reflector

705015551

$9.59

3000e

Amber, Reflector

520000271

$19.99

3000f

Horn

549011291

$35.99

3000g

Warning Decal, Security

516009951

Unavailable

3600

Hitch Ass'y

520001826

$59.49

3610

RH Chassis Reinforcement

511001560

$4.59

3650

Hex. Flange Screw M8 X 45

207684544

$3.80

3660

Hex. Flange Elastic Nut M8

233281414

$1.47
