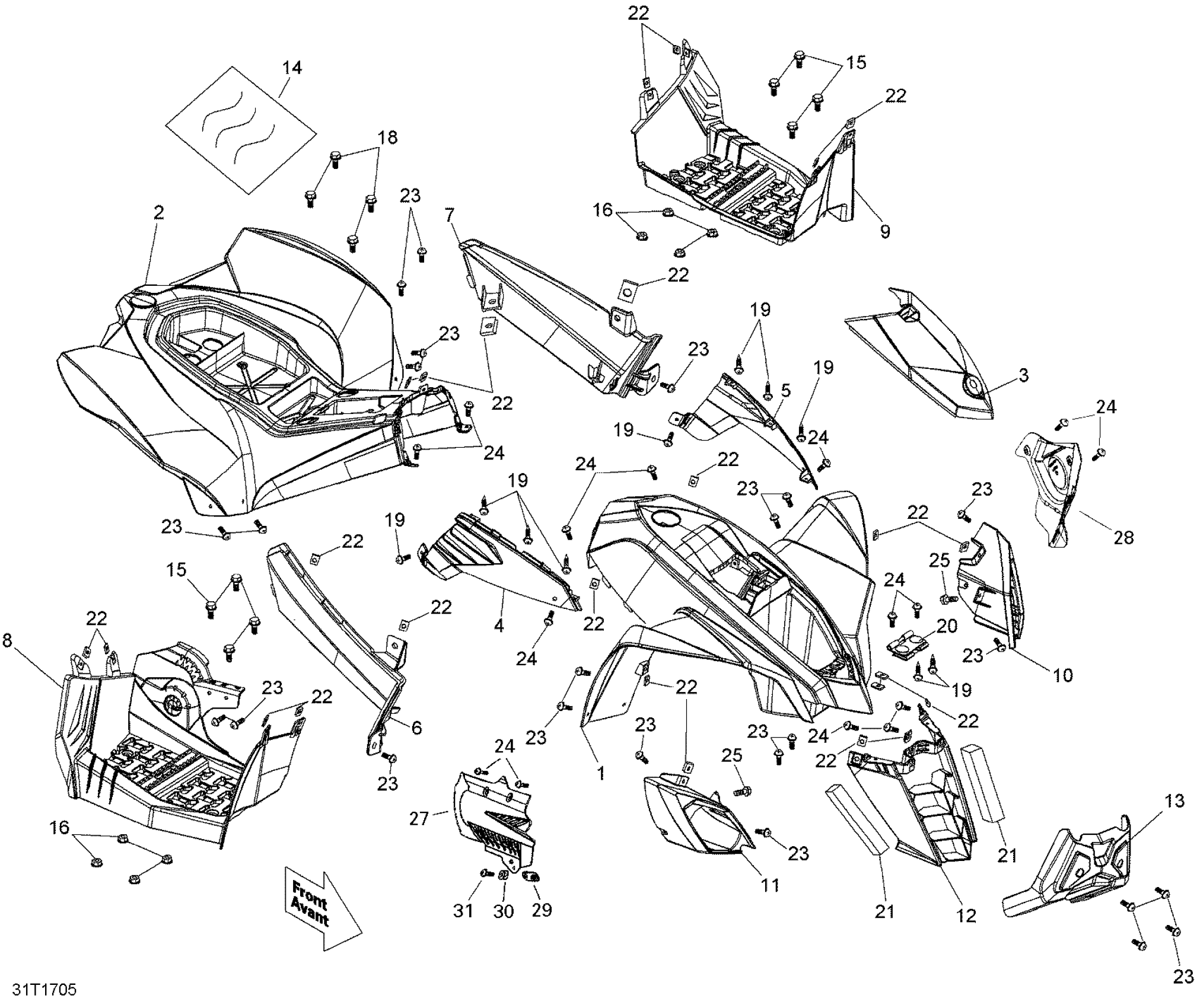

Can-Am 002 - DS 90, 2021 09- Body And Accessories Diagram
#
1
Red Front Fender Ds90Cu | North America, Red Decal
V83003DGF000
Unavailable
1
RED FRONT FENDER DS90 INT - Call your local BRP dealership | International
V83013DGF000
Unavailable
1
Gg051-M02A | North America, Blue Decal
V83006DGF000
Unavailable
2
Red, Rear Fender
V82012DGF030
Unavailable
2
Red Rear Fender Int | International
V83014DGF000
Unavailable
2
White, Rear Fender
V82012DGF040
Unavailable
3
Cargo Cover
V82103DGF00HLL
Unavailable
4
RH Front Side Panel
V80104DGF010BKLL
Unavailable
5
LH Front Side Panel
V80105DGF010BKLL
Unavailable
6
RH Rear Side Panel
V80116DGF000BKLL
Unavailable
7
LH Rear Side Panel
V80117DGF000BKLL
Unavailable
8
RH Footrest
V80106DGF020BKLL
Unavailable
9
LH Footrest
V80107DGF020BKLL
Unavailable
10
RH Headlamp Housing
V80110DGF020BKLL
Unavailable
11
LH Headlamp Housing
V80111DGF020BKLL
Unavailable
12
Front Grille
V80114DGF000BK
Unavailable
13
Skid Plate
V80113DGF010BKLL
Unavailable
14
Heat Insulation Sheet
V18450DGF000LL
Unavailable
15
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
16
Elastic Stop Nut M6
232561414
Unavailable
18
Hex. Flange Screw M6 X 12
207661244
Unavailable
19
Tapping Screw
V9309304012LL
Unavailable
20
Cargo Cover Hinge
V50262DGF030LL
Unavailable
21
Waterproof Strip
V81146DGF020
Unavailable
22
Spring Nut
V9034506000KLL
Unavailable
23
Round Head Screw
V930000601501LL
Unavailable
24
Round Head Screw
V930000601201LL
Unavailable
25
Round Head Screw
V9200006017
Unavailable
27
RH Cover | Black Model
V80118DGF00BK
Unavailable
28
Couvercle*Left Cover | Black Model
V80119DGF01BK
Unavailable
29
Bracket | Black Model
V50302DGF000
Unavailable
30
Cushion Rubber
V15235DGF030LL
Unavailable
31
Round Head Bolt M6 X 20
V9300006020
Unavailable
