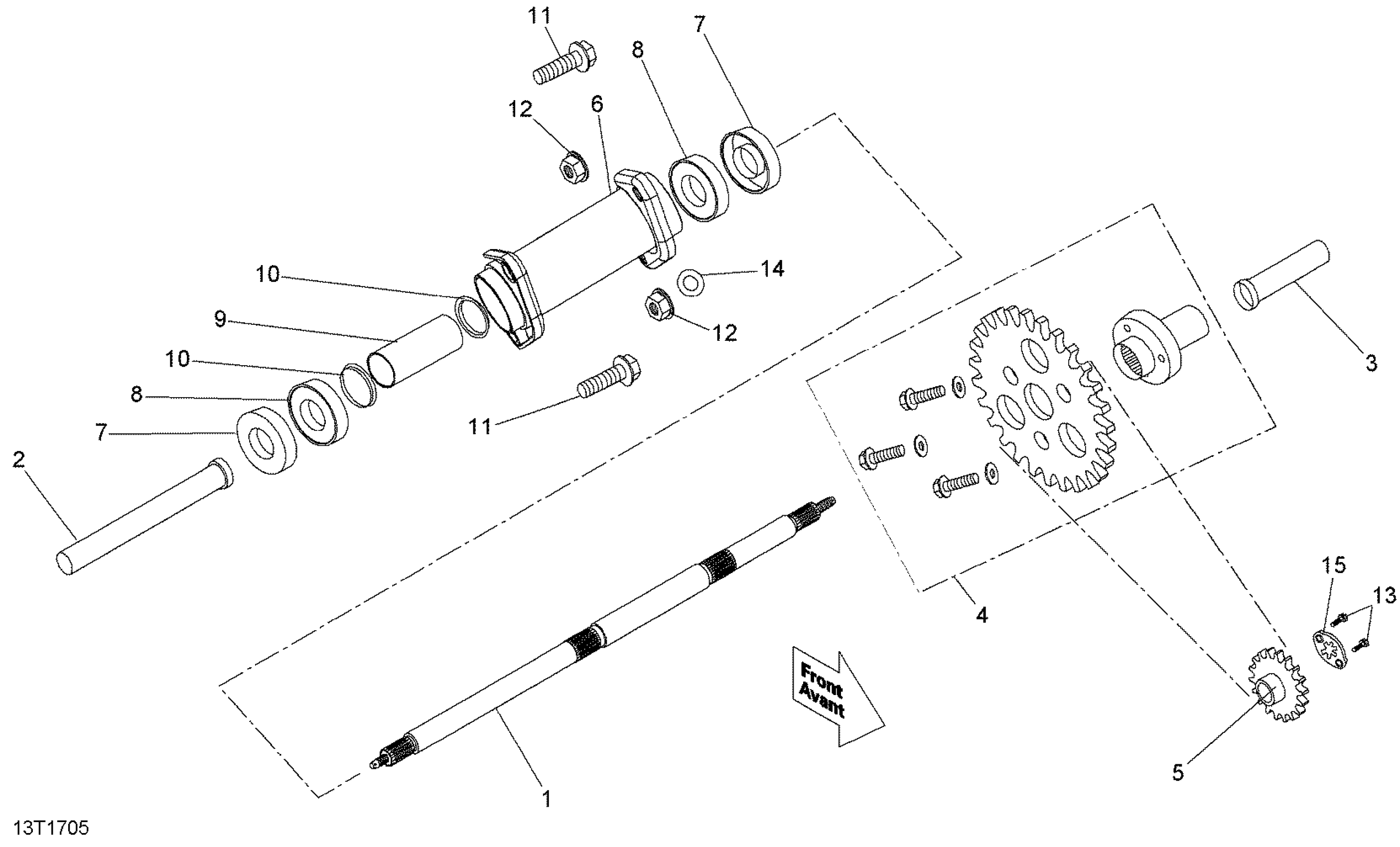

Can-Am DS 90, 2021 Drive System, Rear Diagram

#

Description
Price

1

Rear Wheel Axle

V23511MAA020

$207.66

2

LH Spacer Collar

V44160MAA020BK

$27.66

3

RH Spacer Collar

V44150MAA010BK

$23.05

4

Cam Chain Sprocket 40T

V15239DGF00HLL

$83.05

5

Cam Chain Sprocket 16T

V15237DGF010

$46.12

6

Rear Wheel Axle Seat Ass'y

V52350MAA100BK

$184.58

7

Oil Seal

V91203MAA000

$13.83

8

Radial Ball Bearing

V961006006ZZ

$41.32

9

Spacer

V44620MAA000

$23.05

10

Spacer

V51312MAA010

$6.45

11

Hex. Flange Bolt

V960001202801LL

$6.45

12

Hexagonal Nut M12

A9035012000G

$6.45

13

Screw

V9200006010

$2.31

14

Washer

V941011326020

$7.37

15

Fixing Plate

V128114DM00

$10.14
