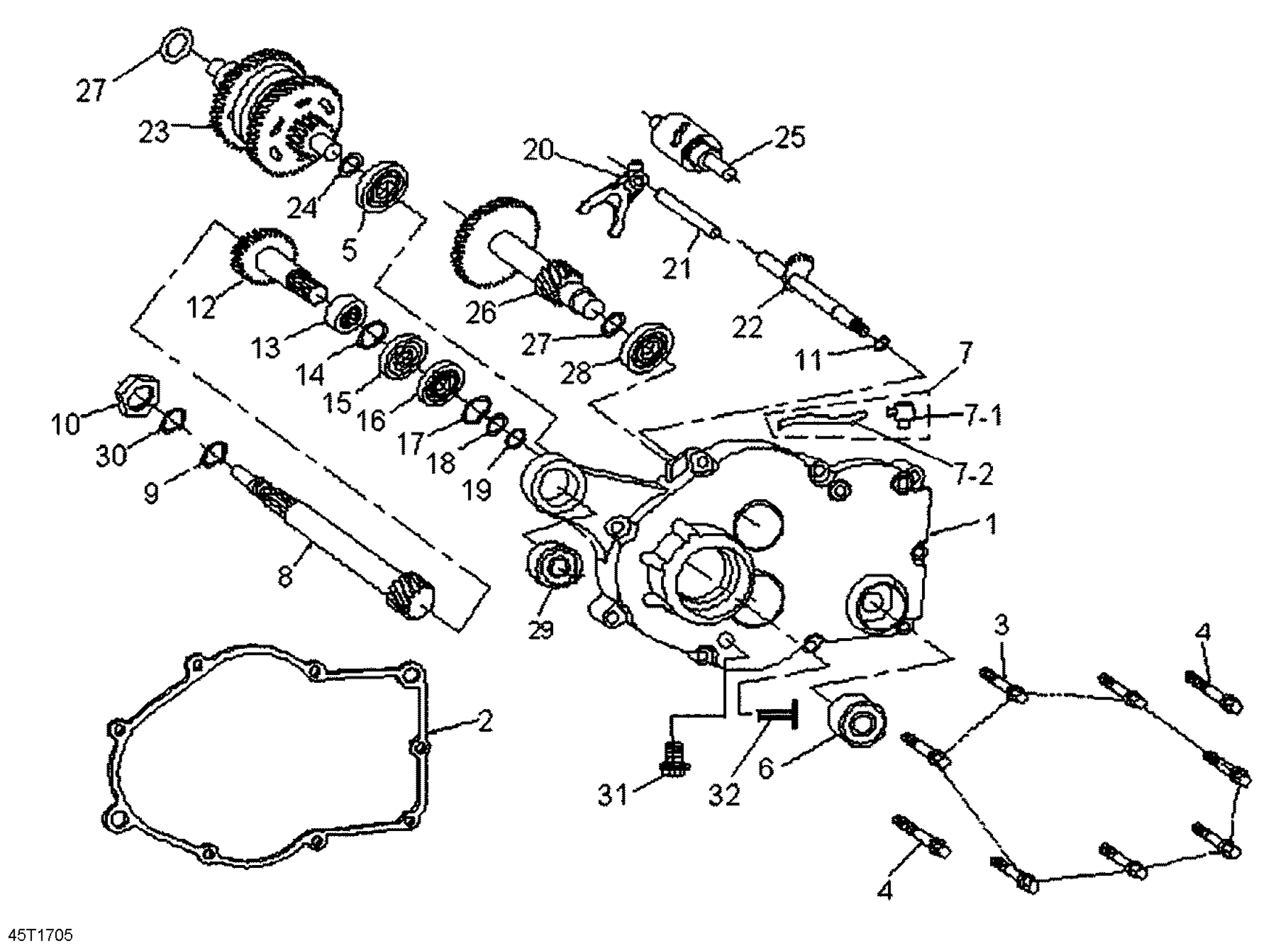

Can-Am DS 90, 2021 Gear Box Diagram

#

Description
Price

1

Cover

V213004DMR030LL

$189.99

2

Transmission Cover Gasket

V213954DMR020

$15.36

3

Hex. Flange Screw M6 X 35

207663544

$0.90

4

Hex. Flange Screw M6 X 40

207664044

$2.22

5

Ball Bearing

V961006202310

$19.99

6

Oil Seal

V92104MAA000

$8.96

7

Breather

V11220CJF020

$21.99

7-1

Not Available As Spare Parts

XXX

Unavailable

7-2

Not Available As Spare Parts

XXX

Unavailable

8

Primary Drive Gear

V234114DMR00

$67.99

9

Circlip

V9451017000

$13.24

10

Nut

V9400310000

$3.50

11

Circlip

V9451013000

$12.18

12

Main Shaft

V234303XGR01

$134.99

13

Needle Bearing

V91130253315

$36.99

14

Circlip

V9453032000

$13.24

15

Oil Seal

V912044DM000

$8.96

16

Bearing

V961506004010

$38.99

17

Circlip

V9453042000

$13.24

18

Flat Washer

V941012028010

$7.73

19

Circlip

V9451019000

$13.24

20

Shifting Fork

V242114DMR000

$57.99

21

Pin

V242414DMR01

$36.99

22

Shift Shaft

V246104DMR000

$49.99

23

Reverse Axle

V234504DMR00

$126.99

24

Flat Washer

V941011522010

$9.69

25

Shift Drum

V243014DMR000

$169.99

26

Reverse Axle

V234204DMR00

$121.49

27

Flat Washer

V941011218010

$9.69

28

Ball Bearing

V961006201310

$19.99

29

Rubber Bushing

V112034DM000

$10.49

30

O-Ring

V91304DGF000

$3.66

31

Hex. Flange Screw

207681244

$0.83

32

Main Shaft

V234303XGR01

$134.99
