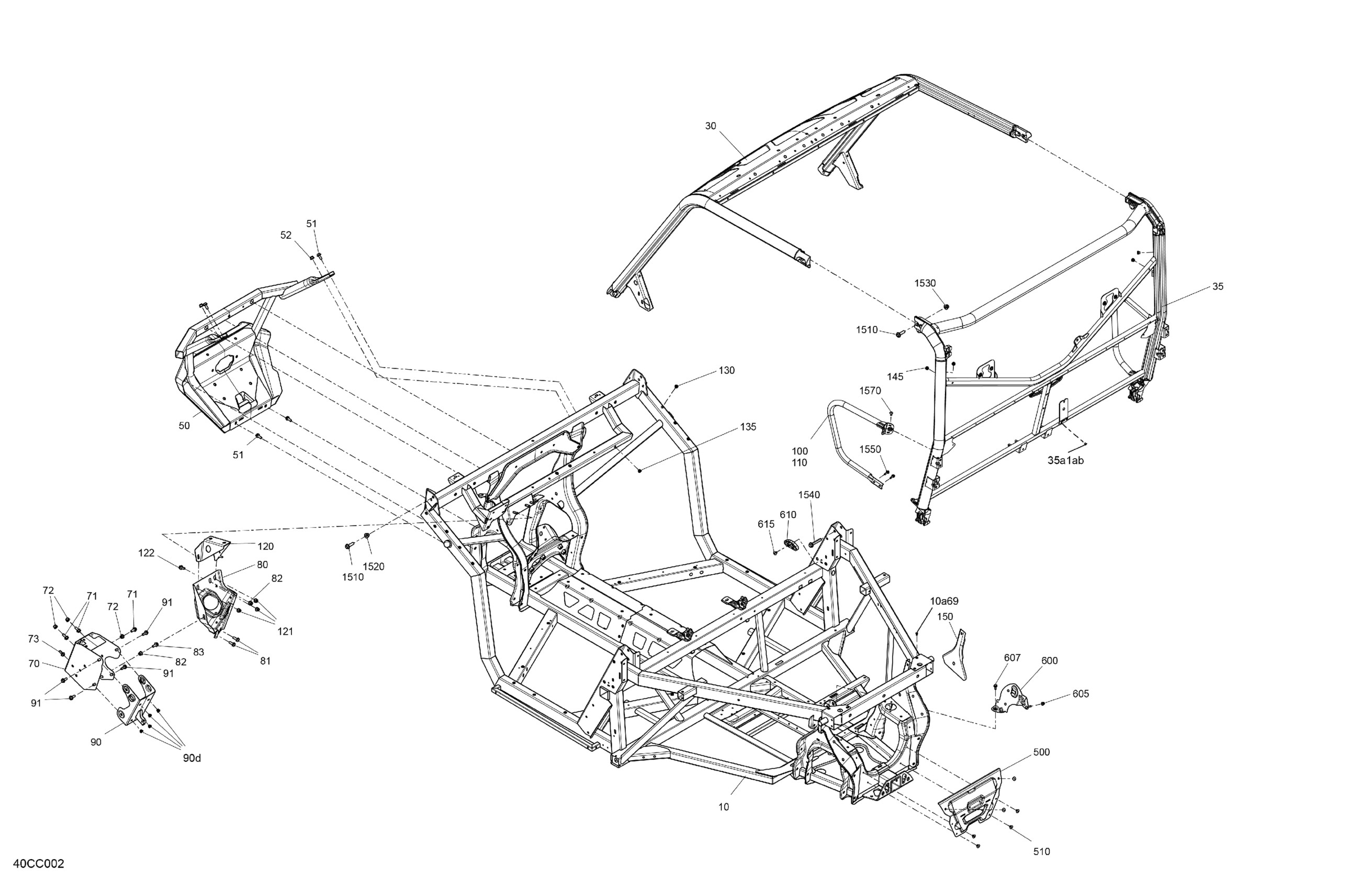

Can-Am 002 - Defender HD7 - DPS - North America, 2023 06- Frame - System Diagram

Deep Black, Chassis Kit

715009069

$3,159.99

Pop Rivet 3/16"

390402200

$0.35

Deep Black, Front Cage Service Kit

715008354

$649.99

Rear Cage Service Kit | Includes 35 to 35a1ab

715009063

$649.99

Pop Rivet 3/16"

390402200

$0.35

Deep Black, Front Bumper

705207588

$499.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Elastic Flange Nut M8

233281416

$1.48

Module Support

705209388

$61.99

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Power Steering Support

705208741

$70.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20

207682044

$1.15

Steering Column Support | Includes 90 to 90d

705209190

$37.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Deep Black, LH Guard

705210921

$43.49

Deep Black, RH Guard

705210930

$44.49

Support

705208742

$30.99

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20

207682044

$1.15

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Heat Shield

705014849

$2.59

Rear Chassis Reinforcement

705207753

$33.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Voltage Regulator Support

710007522

$17.49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Spacer

705208203

$20.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Hex. Flange Screw M10 X 35

250000855

$1.89

Hex. Flange Elastic Nut M10

233201436

$2.11

Flange Elastic Nut M10

233201466

$3.17

Hex. Flange Screw M10 X 6

207606046

$4.12

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Torx Truss M6X14

250000789

$5.39
