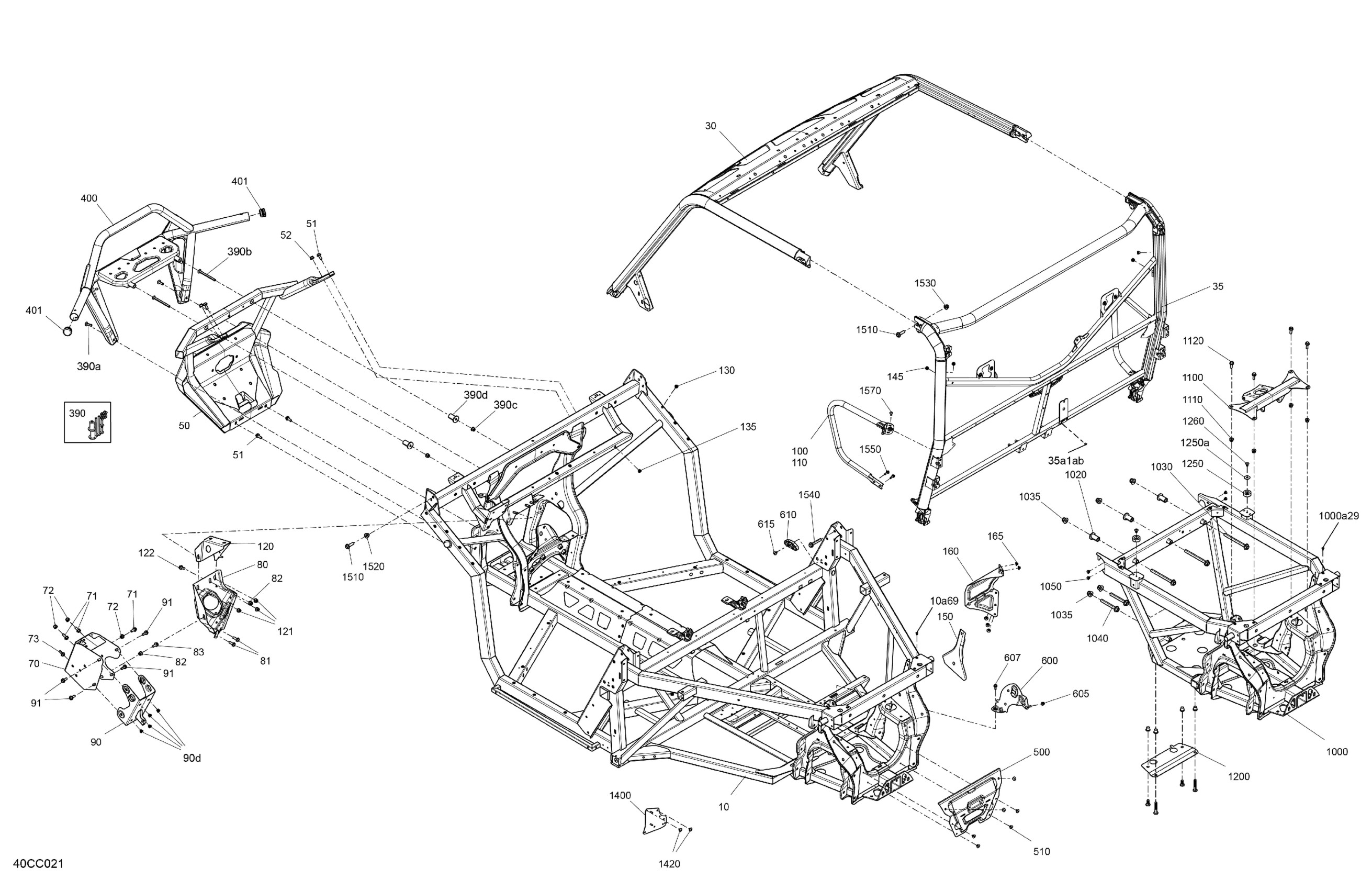

Can-Am Defender 6X6 HD10 - XT - 2023 Frame - System Diagram

Deep Black, Rear Chasis Kit

715009073

$3,239.99

Pop Rivet 3/16"

390402200

$0.26

Deep Black, Front Cage Service Kit

715008354

$649.99

Rear Cage Service Kit | Includes 35 to 35a1ab

715009063

$649.99

Pop Rivet 3/16"

390402200

$0.26

Deep Black, Front Bumper

705207588

$493.25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Elastic Flange Nut M8

233281416

$1.25

Module Support

705209388

$50.72

Hex. Flange Screw M8 X 20

207682044

$0.92

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Power Steering Support

705208741

$63.40

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Screw M8 X 20

207682044

$0.92

Steering Column Support | Includes 90 to 90d

705209190

$33.55

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Deep Black, LH Guard

705210921

$40.27

Deep Black, RH Guard

705210930

$41.01

Support

705208742

$27.58

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Screw M8 X 20

207682044

$0.92

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Heat Shield

705014849

$2.59

Heat Shield

707002709

$46.24

Pop Rivet 3/16"

293150103

$0.52

Bumper Ass'y Kit | Includes 390 to 390d

708200976

$41.01

Torx Screw M8 X 30

250000886

$1.74

Torx Truss M/S M8 x X 100

250001106

$5.53

Hex. Flange Elastic Nut M8

233281414

$1.14

Spacer

705207754

$11.72

Deep Black, Front Bumper

715005754

$350.72

Cap

705202455

$4.27

Rear Chassis Reinforcement

705207753

$30.57

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Voltage Regulator Support

710007522

$15.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Spacer

705208203

$17.13

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Rear Chassis Extension | Includes 1000 to 1000a29

705210679

$889.99

Pop Rivet 3/16"

390402200

$0.26

Spacer

705207755

$13.09

Screw Flange M12 X 135

250000892

$5.12

Elastic Flange Nut M12

250001195

$2.15

Hex. Flange Screw M12 X 95

250000876

$5.54

Hemlock Rivet, 6.4 mm

293150174

$6.24

Upper Rear Differential Support

705210673

$46.99

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Screw M8 X 25

207682544

$0.90

Rear Skid Plate

705208867

$26.84

Rubber Stopper | Includes 830 to 830a

708303134

$1.69

Washer

224060251

$0.55

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

Rear Solenoid Support

705015933

$17.88

Pop Rivet 3/16"

293150103

$0.52

Hex. Flange Screw M10 X 35

250000855

$1.46

Hex. Flange Elastic Nut M10

233201436

$1.74

Flange Elastic Nut M10

233201466

$2.63

Hex. Flange Screw M10 X 6

207606046

$3.38

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Torx Truss M6X14

250000789

$4.41
