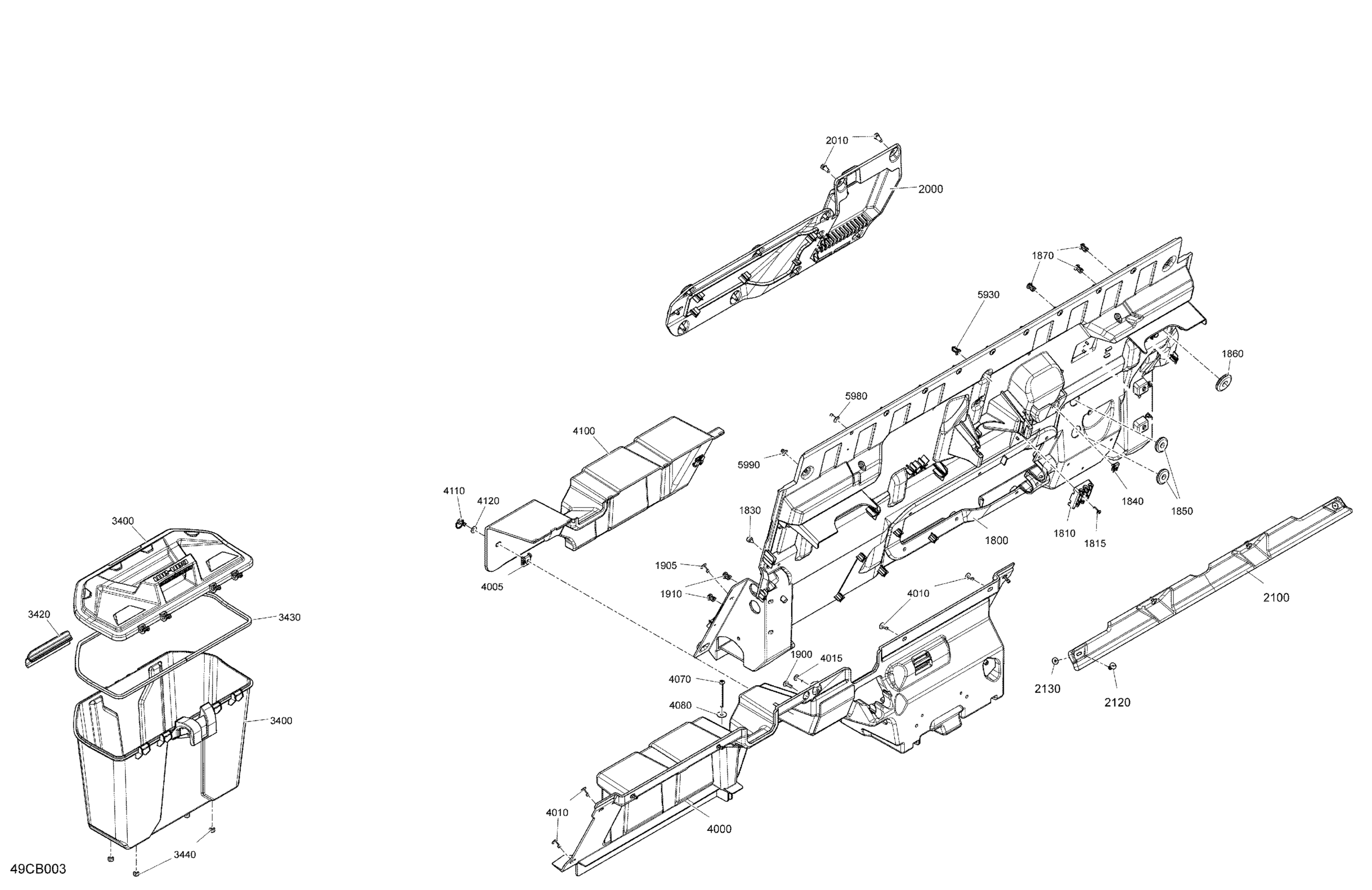

Can-Am Defender 6X6 HD10 - XT - 2022 Cab Interior - Back Wall Diagram

Description

Price

1800

Rear Upper Cab Panel

707900715

$429.99

1810

Hose Support

707900788

$0.92

1815

Torx Screw K50 X 16

250000720

$1.69

1830

Rubber Bumper

293830005

$8.09

1840

Panel Nut M6 X 1.0

250100198

$2.11

1850

Grommet

293720119

$4.19

1860

Grommet

293720119

$4.19

1870

Tuflok Plastic Rivet

293150230

$1.47

1900

Torx Screw M6 X 20

250000722

$1.68

1905

Pop Rivet 3/16"

293150100

$1.09

1910

Tuflok Plastic Rivet

293150230

$1.47

2000

Rear Access Cover

707900742

$83.99

2010

Torx Screw M6 X 20

250000712

$2.11

2100

Rear Deflector

707900795

$86.99

2120

Pop Rivet 3/16"

293150100

$1.09

2130

Washer M5

250200025

$0.74

3400

Storage Box

715003314

$106.49

3420

Clip | Outlander Max

269501945

$15.89

3430

Neoprene Seal

293250453

$19.49

3440

Rubber Bumper

293830005

$8.09

4000

Rear Lower Cab Panel

707901074

$219.99

4005

Quarter Turn Nut

705002651

$4.76

4010

Pop Rivet 3/16"

293150100

$1.09

4015

Torx Screw M6 X 20

250000722

$1.68

4070

Torx Screw M6 X 70

250000954

$1.90

4080

Flat Washer M6.6 X 22

250200162

$2.32

4100

Battery Cover

707900743

$90.99

4110

Quarter Turn Screw

705002649

$15.87

4120

Washer

708400286

$3.99

5930

Tuflok Plastic Rivet

293150230

$1.47

5980

Pop Rivet 3/16"

293150100

$1.09

5990

Pop Rivet 3/16"

293150103

$0.55
