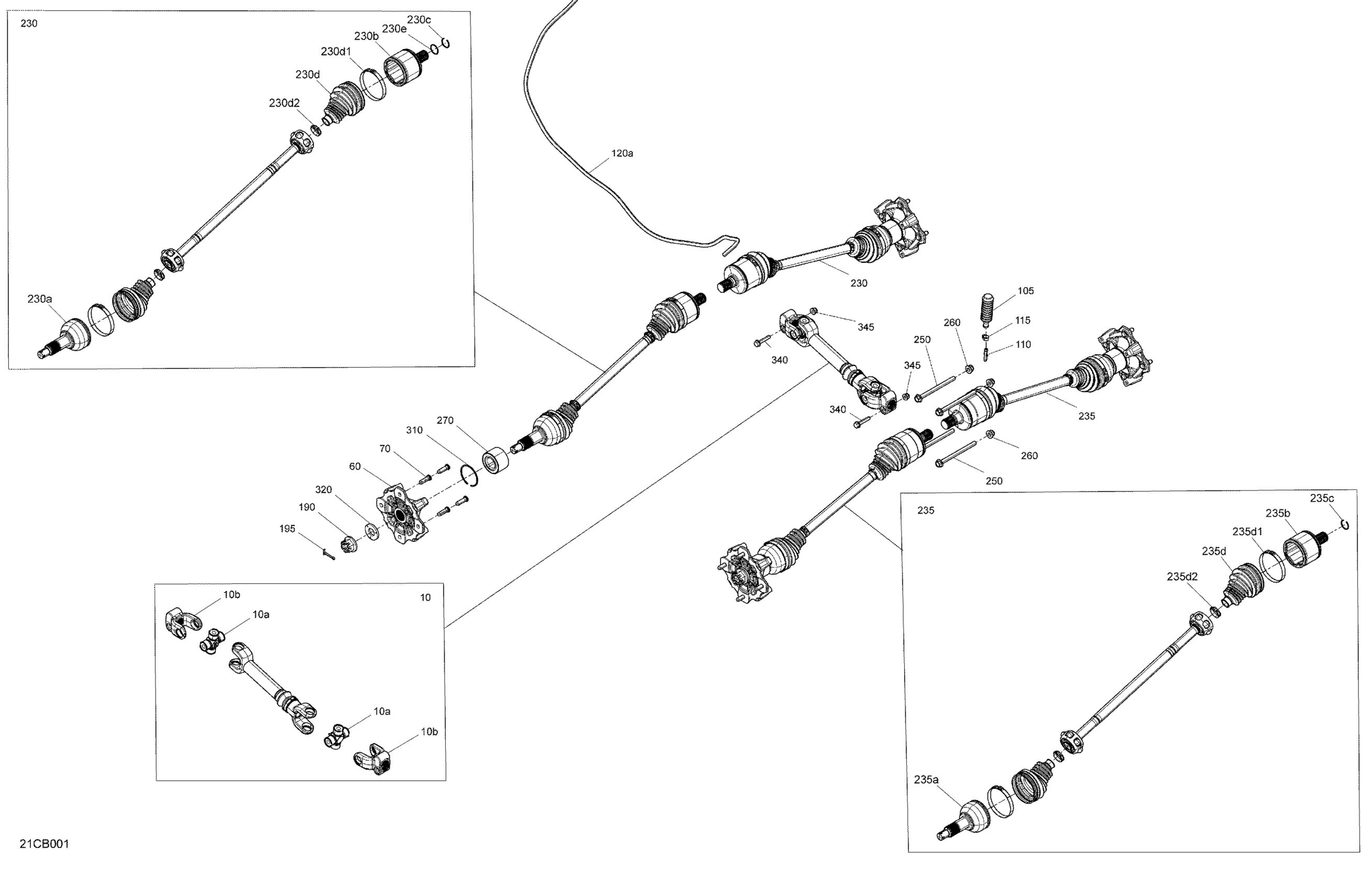

Can-Am Defender 6X6 HD10 - XT - 2022 Drive - Rear - Common Parts Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10b

705502784

$253.82

10a

U-joint (universal joint) Kit

715900648

$78.43

10b

Yoke

715900645

$23.05

60

Wheel Hub

705502338

$115.35

70

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

105

Rubber Bellow | 4X4

705400552

$6.02

110

Straight Fitting

293710039

$7.37

115

Oetiker Clamp

293650042

$1.40

120a

Was 293830195 Polyurethane Hose

219704390

$18.43

190

Castle Nut M20

250100193

$6.66

195

Cotter Pin

250400084

$1.79

230

CV Joint | Includes 230 to 230f

705502831

$232.74

230a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

230b

Plunging Joint

715900444

$267.66

230c

Circlip

705501781

$5.38

230d

Boot Kit

705501864

$41.51

230d1

Oetiker Clamp, 82.1 mm

715900241

$7.84

230d2

Oetiker Clamp, 27.3 mm

715900242

$7.84

230e

O-Ring

715900579

$2.31

235

Half Shaft | Includes 235 to 235d2

705503271

$232.74

235a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

235b

Plunging Joint

715900433

$249.20

235c

Circlip

705501781

$5.38

235d

Boot Kit

705501864

$41.51

235d1

Oetiker Clamp, 82.1 mm

715900241

$7.84

235d2

Oetiker Clamp, 27.3 mm

715900242

$7.84

250

Hex. Flange Screw, M10 X 130

230603046

$6.08

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$51.93

310

Circlip

293370019

$4.98

320

Conical Spring Washer M20

250200170

$11.00

340

Hex. Flange Screw M8 X 42

250001050

$0.95

345

Hex. Elastic Flange Nut M8

233281416

$1.25
