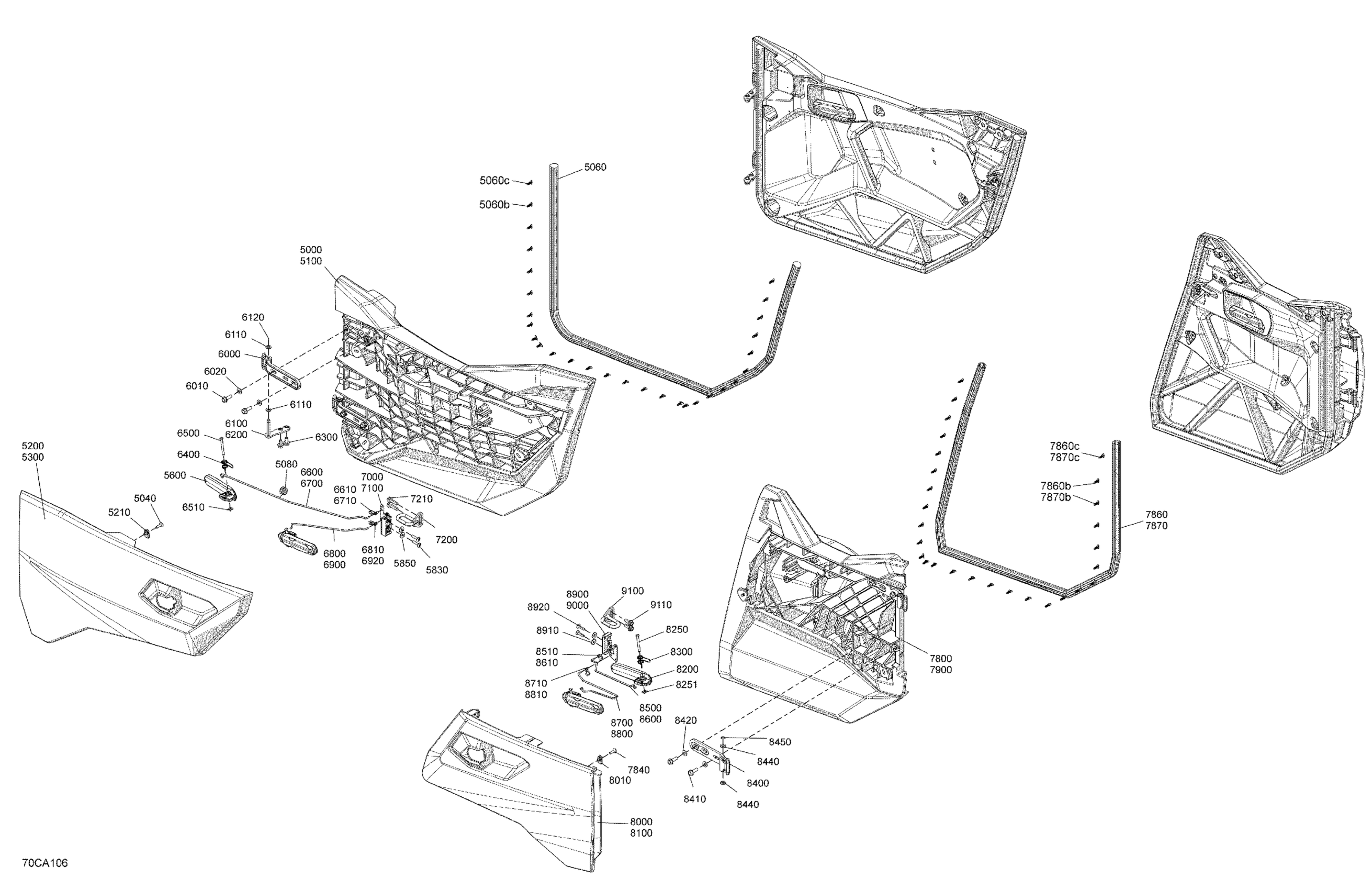

Can-Am Commander MAX 1000R EFI - DPS_XT - 2021 Body - Doors Diagram

#

Description
Price

5000

LH Front Door Ass'y

715007883

$195.35

5040

Torx Screw M6 X 20

250000722

$1.34

5060

LH Front Door Gasket Ass'y | Includes 5060 to 5060c

293250501

$41.51

5060b

Natural Color, Dart

293730081

$2.75

5060c

Red, Dart

293730082

$2.75

5080

Grommet

293720104

$4.15

5100

RH Front Door Ass'y

715007884

$197.66

5200

Oxford Met Blue, LH Front Door Panel | Model Oxford Blue Metallic

705015705

$232.28

5200

Tundra Green, LH Front Door Panel

705015703

$175.35

5210

Panel Nut M6 X 1.0

250100198

$1.73

5300

Oxford Met Blue, RH Front Door Panel | Model Oxford Blue Metallic

705015706

$232.28

5300

Tundra Green, RH Front Door Panel

705015704

$175.35

5600

Door Handle

705017152

$13.52

5830

Torx Truss Screw M6 X 25

250000807

$1.74

5850

Stainless Steel Flat Washer

234062670

$1.74

6000

Hinge

705013228

$27.66

6010

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

6020

Washer

503192494

$3.11

6100

Lower Hinge Ajustement

705011629

$12.31

6110

Flat Washer 8 mm, Nylon

234081100

$1.00

6120

Circlip | RS STD

705601030

$4.12

6200

Upper Hinge Ajustement

705012506

$12.31

6300

Hex. Flange Screw DIN.6921 S.Grip

250001033

$0.95

6400

Handle Spring

705013062

$13.83

6500

Handle Axle

705207440

$11.54

6510

External Retaining Ring

705601875

$4.06

6600

LH Upper Locking Rod

705207146

$8.46

6610

RH Tie Rod Clip

708300202

$2.31

6700

RH Upper Locking Rod

705207147

$8.46

6710

LH Tie Rod Clip

708300182

$2.31

6800

LH Lower Locking Rod

705207150

$3.98

6810

RH Tie Rod Clip

708300202

$2.31

6900

RH Lower Locking Rod

705207151

$3.98

6920

LH Tie Rod Clip

708300182

$2.31

7000

LH Latch

705013095

$55.35

7100

RH Latch

705013096

Unavailable

7200

Stricker Support

705207246

$27.66

7210

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

7800

LH Rear Door Ass'y

715007885

$199.97

7840

Torx Screw M6 X 20

250000722

$1.34

7860

LH Rear Door Gasket Ass'y | Includes 7860 to 7860c

293250505

$78.43

7860b

Natural Color, Dart

293730081

$2.75

7860c

Red, Dart

293730082

$2.75

7870

RH Rear Door Gasket Ass'y | Includes 7870 to 7870c

293250506

$78.43

7870b

Natural Color, Dart

293730081

$2.75

7870c

Red, Dart

293730082

$2.75

7900

RH Rear Door Ass'y

715007886

$207.66

8000

Oxford Metallic Blue, LH Rear Door Panel | Model Oxford Blue Metallic

705015718

$232.28

8000

LH Rear Door Panel

705015720

$194.58

8010

Panel Nut M6 X 1.0

250100198

$1.73

8100

Oxford Metallic Blue, RH Rear Door Panel | Model Oxford Blue Metallic

705015719

$232.28

8100

RH Rear Door Panel

705015721

$194.58

8200

Door Handle

705017152

$13.52

8250

Handle Axle

705207440

$11.54

8251

External Retaining Ring

705601875

$4.06

8300

Handle Spring

705013062

$13.83

8400

Hinge

705013228

$27.66

8410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

8420

Washer

503192494

$3.11

8440

Flat Washer 8 mm, Nylon

234081100

$1.00

8450

Circlip | RS STD

705601030

$4.12

8500

LH Rear Door Upper Locking Rod

705207152

$23.05

8510

RH Tie Rod Clip

708300202

$2.31

8600

RH Rear Door Upper Locking Rod

705207153

$23.05

8610

RH Tie Rod Clip

708300202

$2.31

8700

LH Rear Door Lower Locking Rod

705207154

$23.05

8710

RH Tie Rod Clip

708300202

$2.31

8800

RH Rear Door Lower Locking Rod

705207155

$23.05

8810

RH Tie Rod Clip

708300202

$2.31

8900

LH Latch

705013758

$55.35

8910

Stainless Steel Flat Washer

234062670

$1.74

8920

Torx Truss Screw M6 X 25

250000807

$1.74

9000

RH Latch

705013759

$55.35

9100

Stricker Support

705207246

$27.66

9110

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39
