Partiron

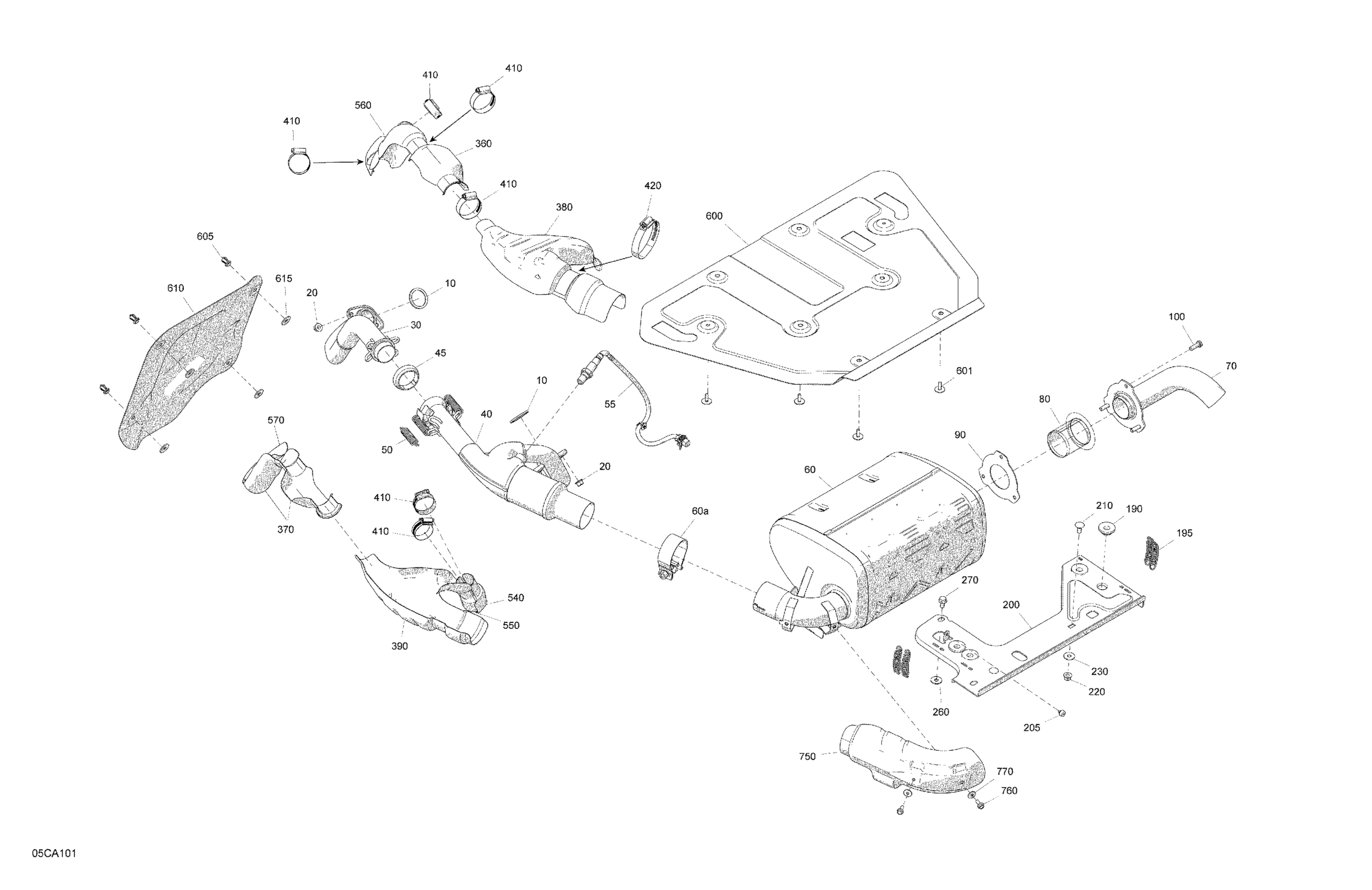

Can-Am Commander 1000R EFI - DPS_XT_XTP - 2021 Engine - Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$11.60

20

Hex. Flange Nut

233081436

$2.00

30

Front Exhaust Pipe

707602039

$174.49

40

Rear Exhaust Pipe

707602390

$582.49

45

Exhaust Gasket

707601033

$13.77

50

Spring

707601834

$6.35

55

Oxygen Sensor

707600872

$144.99

60

Muffler

707602903

$836.99

60a

Not Available As Spare Part - Friction Washer

Unavailable

60b

Hex. Flange Nut M8

233081416

$1.15

70

Exhaust Pipe Out

707602905

$132.49

80

Spark Arrester

707602133

$35.99

90

Exhaust Gasket

707603026

$5.98

100

Hex. Screw Cap DIN.933

207182546

$1.01

110

Hex. Flange Nut

233081436

$2.00

190

Vibration Damper

707602802

$14.81

195

Spring

707601834

$6.35

200

Muffler Support

707603011

$62.49

205

Rubber Bumper

293830005

$8.09

210

Carriage Bolt, M8 X 20

207782044

$1.90

220

Hex. Flange Nut

233081436

$2.00

230

Flat Washer 8 mm

234082410

$1.47

260

Flat Washer 8 mm

234082410

$1.47

270

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

360

Front Heat Shield

707602666

$68.99

370

Rear Heat Shield

707602667

$53.99

380

Upper Heat Shield

707602668

$85.99

390

Lower Heat Shield

707602669

$68.99

410

Murray Gear Clamp

293650300

$12.71

420

Tridon Gear Clamp

293650250

$14.31

540

Upper Rear Heat Shield

707602670

$53.99

550

Lower Rear Heat Shield

707602671

$53.99

560

Front Upper Heat Shield

707602672

$53.99

570

Lower Front Heat Shield

707602673

$53.99

600

Heat Shield

707603354

$104.99

601

Hex Sems Screw M6X20

250001165

$3.91

605

Tuflok Plastic Rivet

293150230

$1.47

610

Heat Shield

707602043

$53.99

615

Flat Washer 8 mm

234082410

$1.47

750

Heat Shield

707602800

$53.99

760

Hex Flange Screw M6 X 16

250000906

$5.29

770

Flat Washer 6 mm

234062410

$0.77
