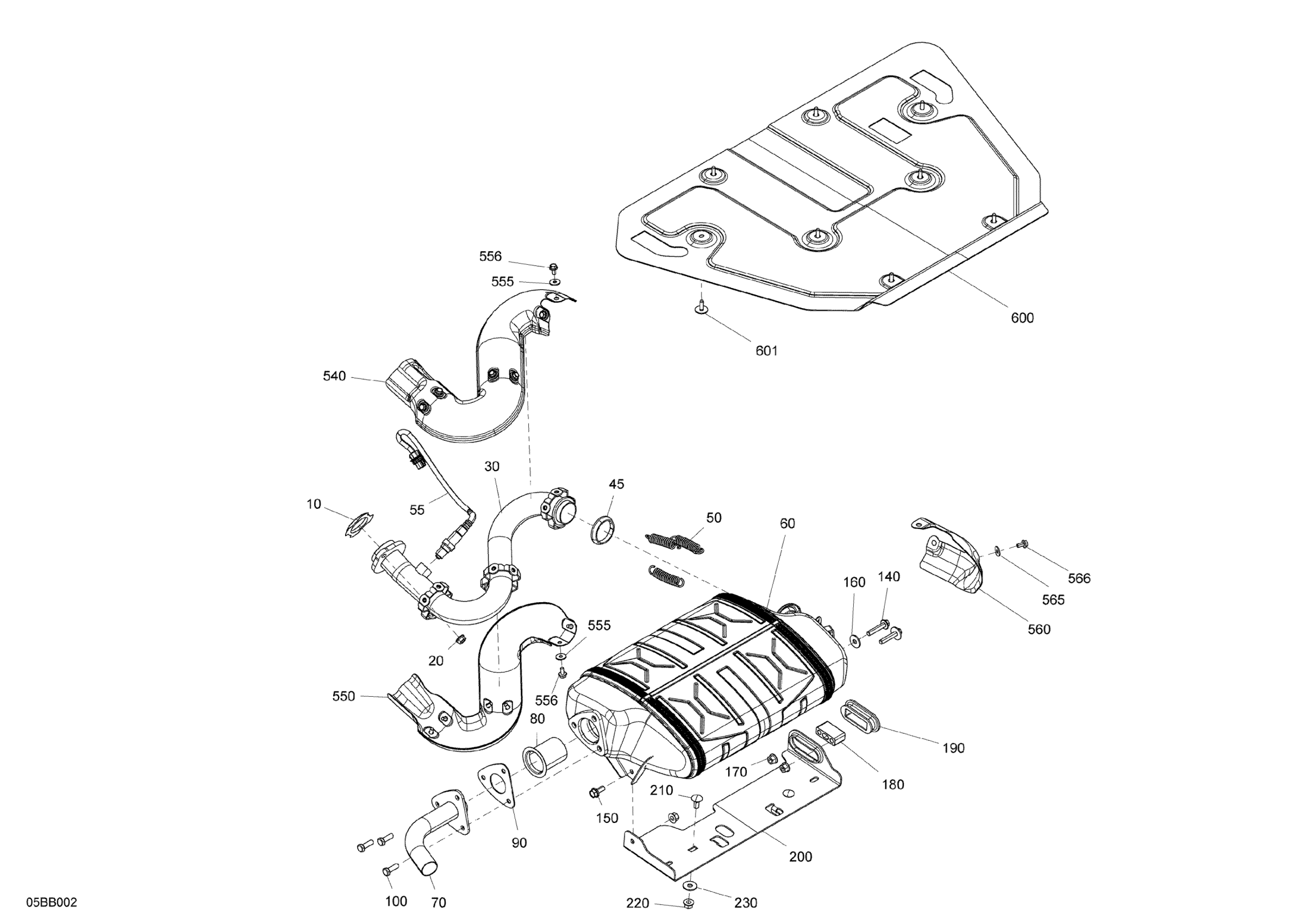

Can-Am Commander 700 EFI - DPS - 2022 Engine - Exhaust Diagram

#

Description
Price

10

Exhaust Gasket

707602697

$5.98

20

Hex. Flange Nut M8

233181414

$1.15

30

Exhaust Pipe Ass'y

707603670

$338.99

45

Exhaust Gasket

707602700

$14.22

50

Spring

707601834

$6.35

55

Oxygen Sensor

707600872

$144.99

60

Exhaust Muffle Ass'y

707603073

$794.99

70

Tail Pipe

707603212

$87.99

80

Spark Arrestor

707601803

$49.99

90

Gasket

707602731

$12.63

100

Hex. Screw Cap DIN.933

207182546

$1.01

140

Hex. Flange Screw M8 X 40

207684044

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

160

Flat Washer 8 mm

234082410

$1.47

170

Hex. Flange Nut

233081436

$2.00

180

Muffler Stopper

707603214

$13.49

190

Rubber Bumper

707603330

$15.81

200

Exhaust Support

707603201

$30.49

210

Carriage Bolt, M8 X 20

207782044

$1.90

220

Hex. Flange Nut

233081436

$2.00

230

Flat Washer 8 mm

234082410

$1.47

540

Front Upper Heat Shield

707603060

$85.99

550

Front Lower Heat Shield

707603061

$85.99

555

Flat Washer 6 mm

234062410

$0.77

556

Hex. Flange Screw M6 X 12

207661244

$2.11

560

Rear Heat Shield

707603324

$53.99

565

Flat Washer 6 mm

234062410

$0.77

566

Hex. Flange Screw M6 X 12

207661244

$2.11

600

Heat Shield

707603354

$104.99

601

Hex Sems Screw M6X20

250001165

$3.91
