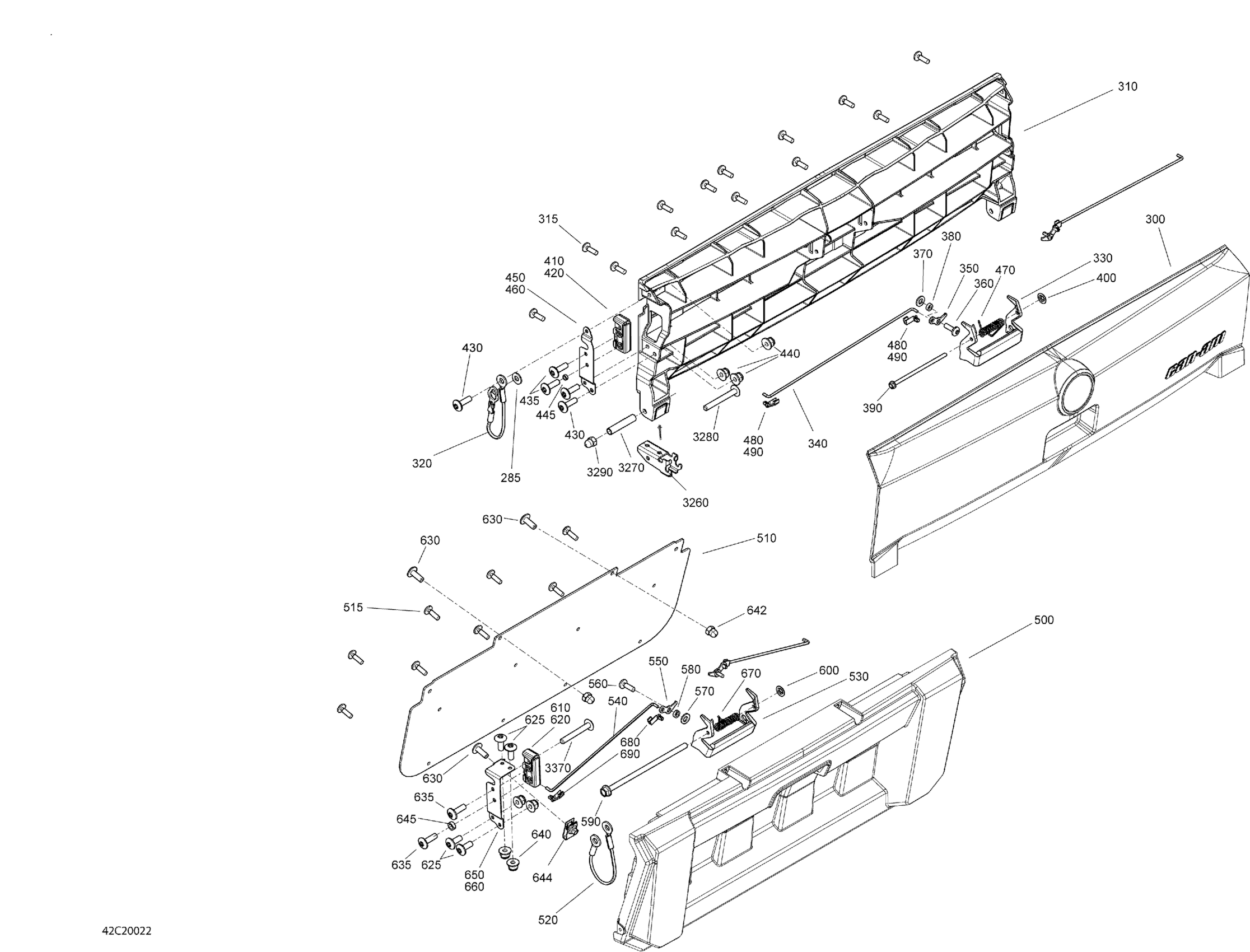

Can-Am Commander 1000R EFI - 2020 Rear Cargo Box - Door Diagram

#

Description
Price

285

Flat Washer

224061121

$0.44

300

Camo, Outside Top Panel | Camo Model

708301693

$369.20

300

Squadron Green, Outside Top Panel | Squadron Green Models

708302339

$106.12

300

Boreal Green, Top Panel | Timeless Black

708302766

$378.43

300

Carbon Black, Tailgate | Carbon Black

708303143

$378.43

300

Asphalt Grey, Tailgate | Package LTD

708303146

$378.43

310

Inside Top Pannel

708300053

$129.20

315

Torx Screw K50 X 16

250000720

$1.39

320

Upper Retainer Cable

708300763

$32.28

330

Handle

708300398

$12.91

340

Top Rod

708300160

$3.08

350

Activator

708300184

$8.45

360

Torx Screw K50 X 16

250000720

$1.39

370

Flat Washer 6 mm

234061410

$1.04

380

Bushing

708300365

$5.52

390

Hex. Flange Screw M6 X 130

230663084

$2.77

400

Push Nut

732610072

$1.72

410

LH Latch

708300162

$20.74

420

RH Latch

708300201

$20.74

430

Torx Screw M6 X 20

250000722

$1.34

435

Torx Screw M6 X 20

250000722

$1.34

440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

445

Bushing

708300737

$4.62

450

LH Upper Support

708300359

$36.89

460

RH Upper Support

708300360

$9.22

470

Spring

708300219

$3.85

480

LH Tie Rod Clip

708300182

$2.31

490

RH Tie Rod Clip

708300202

$2.31

500

Outside Bottom Pannel Ass'y

715002365

$147.66

510

INSIDE BOTTOM PANNEL - Call your local BRP dealership

708300073

Unavailable

515

Torx Screw K50 X 16

250000720

$1.39

520

Lower Retainer Cable

708300762

$15.22

530

Handle

708300398

$12.91

540

Lower Bottom Rod

708300164

$3.08

550

Activator

708300184

$8.45

560

Torx Screw K50 X 16

250000720

$1.39

570

Flat Washer 6 mm

234061410

$1.04

580

Bushing

708300365

$5.52

590

Hex. Flange Screw M6 X 130

230663084

$2.77

600

Push Nut

732610072

$1.72

610

LH Latch

708300162

$20.74

620

RH Latch

708300201

$20.74

625

Torx Truss Screw M6 X 16

250000721

$1.39

630

Torx Truss Screw M6 X 16

250000721

$1.39

635

Torx Screw M6 X 20

250000722

$1.34

640

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

642

Domed Nut M6

232361493

$1.77

644

Panel Nut M6 X 1.0

250100198

$1.73

645

Bushing

708300737

$4.62

650

LH Lower Support

708300361

$9.11

660

RH Lower Support

708300362

$8.45

670

Spring

708300219

$3.85

680

LH Tie Rod Clip

708300182

$2.31

690

RH Tie Rod Clip

708300202

$2.31

3260

Upper Pivot Support

708300345

$3.85

3270

Bushing

708300735

$11.83

3280

Torx Truss Screw M6 X 50

250000749

$3.11

3290

Domed Nut M6

232361493

$1.77

3370

Torx Screw M6 X 45

250000748

$1.56
