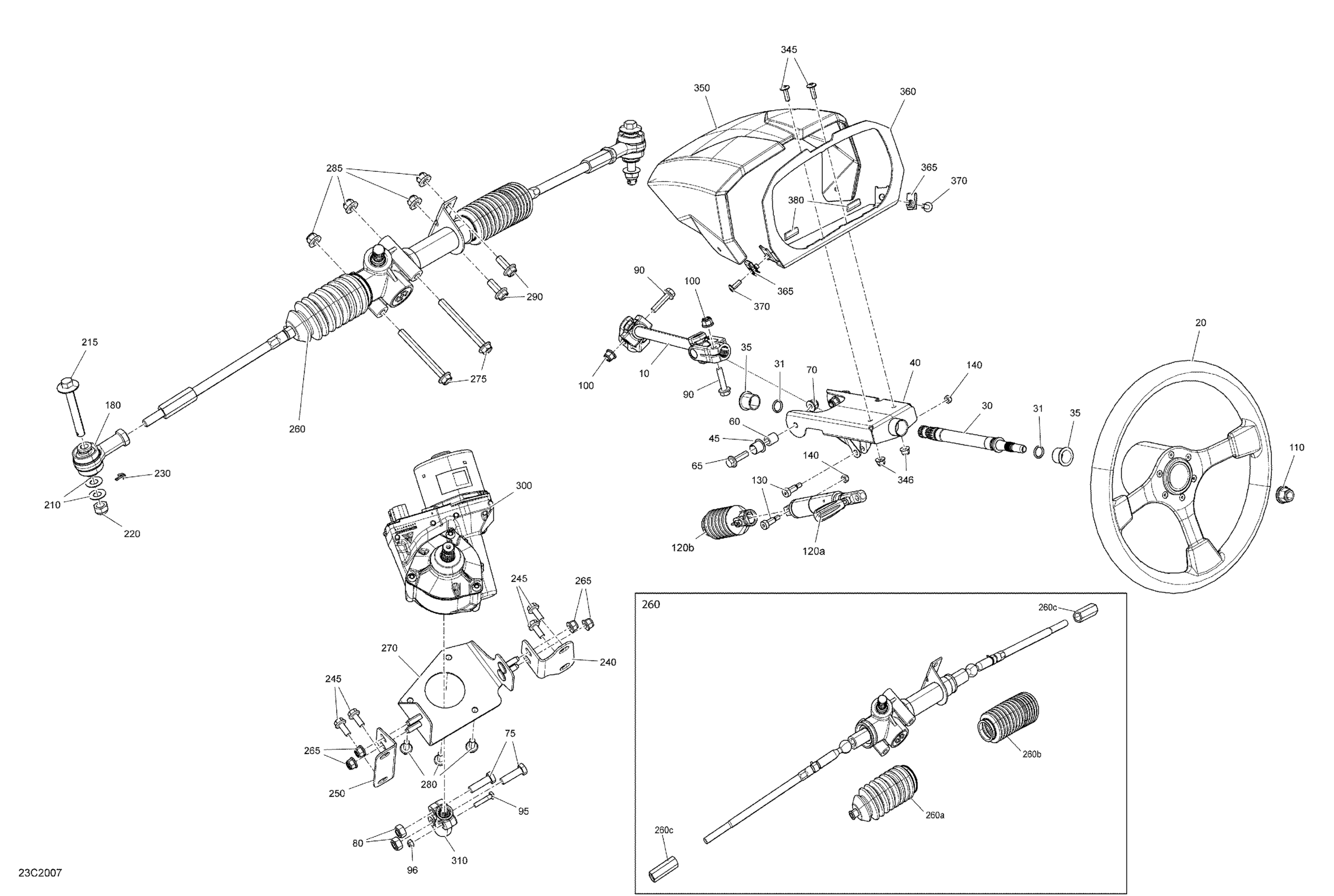

Can-Am Commander 1000R EFI - 2020 Steering - XT & LTD Diagram

#

Description
Price

10

Steering Shaft Ass'y | Package XT, Hunter

709401687

$199.99

20

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

30

Steering Shaft

709401167

$48.99

31

O-Ring

293300144

$3.82

35

Steering Bushing

709402725

$3.28

40

Painted Steering Wheel Support

709401391

$85.99

45

Bushing

705600799

$3.72

60

Bushing

293900106

$4.55

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

70

Hex. Flange Elastic Nut M8

233281414

$1.47

75

Hex. Screw M10 X 35

250001020

$1.01

80

Elastic Stop Nut M10

232500416

$1.90

90

Hex. Flange Screw M8 X 35

250001021

$4.44

95

Hex. Screw M6 X 30

207063044

$1.26

96

Elastic Stop Nut M6

232561414

$0.55

100

Hex. Elastic Flange Nut M8

233281416

$1.48

110

Hex. Flange Elastic Nut M12

233221414

$7.69

120a

Adjustment Cylinder

709402506

$72.99

120b

Boot Tube Side

709401232

$18.99

130

Socket Head Screw M8 X 16

250000669

$3.17

140

Elastic Stop Nut M6

232561414

$0.55

180

Ball Joint

709401134

$52.99

210

Hardened Washer

706200281

$2.85

215

Hexagonal Screw M12 X 88

250001029

$6.49

220

Elastic Stop Nut M12

232521416

$1.69

230

Cotter Pin

211400017

$0.33

240

RH Power Steering Support

709402178

$14.49

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

250

Left DPS Support

709401869

$11.99

260

Rack And Pinion Steering

709402387

$487.49

260a

Boot Kit, Pinion Side

715900235

$54.99

260b

Boot Kit, Tube Side

715900236

$54.99

260c

Nut Tie Rod End

715900237

$14.30

265

Hex. Flange Elastic Nut M8

233281414

$1.47

270

Power Steering Support Ass'y | Package XT, Hunter

709402176

$22.49

275

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.17

280

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

285

Hex. Flange Elastic Nut M10

233201436

$2.11

290

Hex. Flange Screw M10 X 25

207602546

$2.11

300

Power Steering Ass'y

709402727

$2,119.99

310

Coupling

709401719

$33.99

345

Torx Screw M6 X 20

250000722

$1.68

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

350

Upper Cluster Cover | X, XT

707900124

$16.49

360

Cluster Support | X, XT

707900013

$16.49

365

Panel Nut M6 X 1.0

250100198

$2.11

370

Torx Truss Screw M6 X 16

250000721

$1.69

380

Gasket, Neoprene 2000Mm Long

219704476

$15.36
