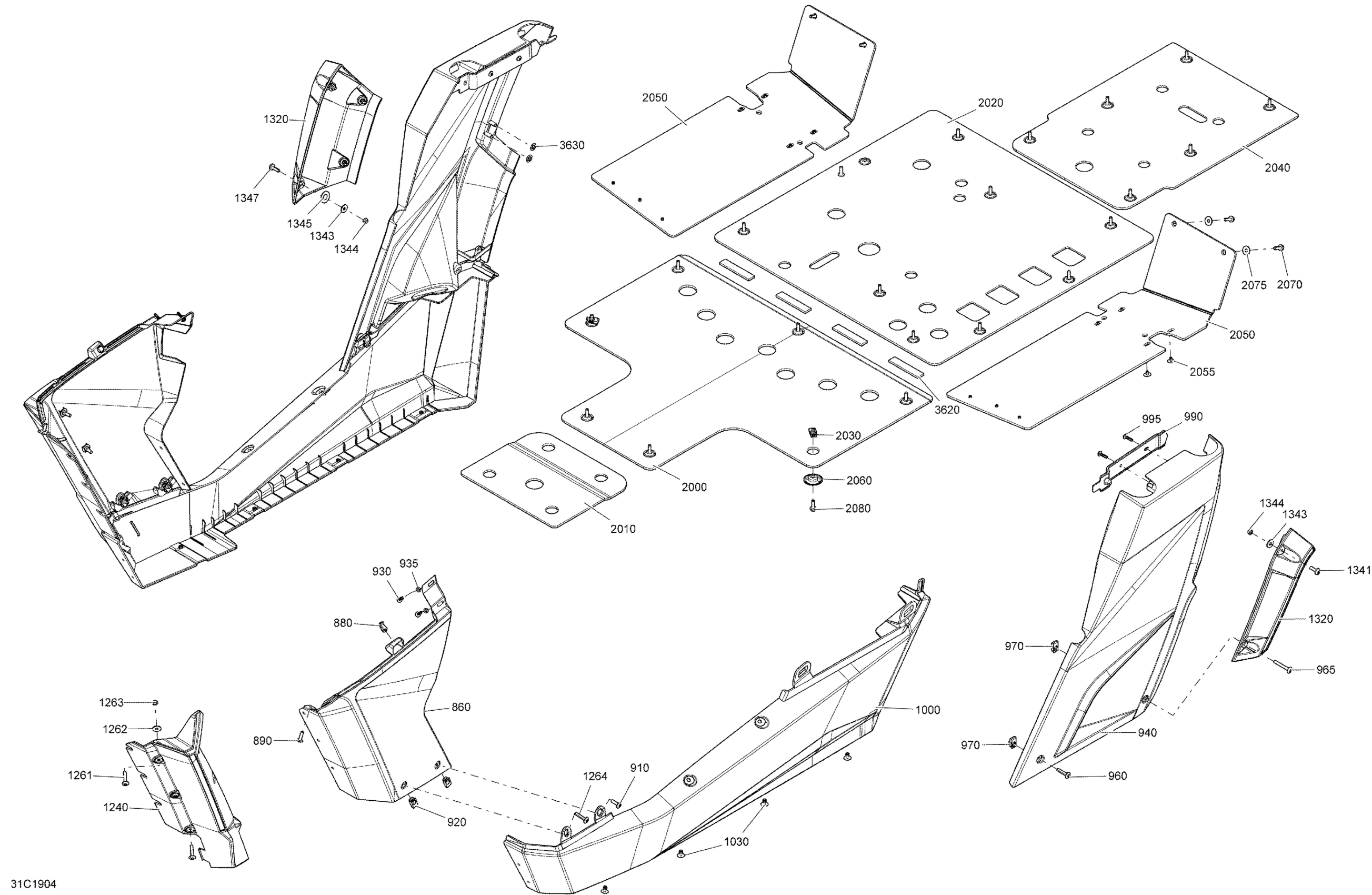

Can-Am Commander 1000R EFI - 2019 Body And Accessories - Central Panel - Carbon Black Diagram

#

Description
Price

860

Carbon Black, LH Front Body Panel

705013671

$328.33

860

Carbon Black, RH Front Body Panel

705013672

$328.33

880

Tuflok Plastic Rivet

293150230

$1.39

890

Torx Screw M6 X 20

250000722

$1.54

900

Panel Nut M6 X 1.0

250100198

$1.99

910

Torx Screw M6 X 20

250000722

$1.54

920

Panel Nut M6 X 1.0

250100198

$1.99

930

Torx Screw Truss Head K50X20 T20

250000760

$2.00

935

Flat Washer M5

234051410

$0.51

940

Carbon Black, LH Rear Boy Panel

705013723

$479.82

940

Carbon Black, RH Rear Body Panel

705013724

$479.82

960

Torx Truss Screw M6 X 30

250000843

$2.00

965

Torx Screw M6 X 45

250000748

$1.79

970

Panel Nut M6 X 1.0

250100198

$1.99

990

Support Skid Plate

705007916

$12.34

995

Torx Screw Truss Head K50X20 T20

250000760

$2.00

1000

LH Middle Side Pannel | XT

705006993

$65.64

1000

RH Middle Side Pannel | XT

705006994

$65.64

1030

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1200

Black, LH Upper Front Mudguard | LTD

705008666

$34.86

1220

Black, RH Upper Front Mudguard | LTD

705008667

$34.86

1221

Stainless, Torx Screw M6 X 30

250000842

$2.00

1222

Stainless Steel Flat Washer

234062670

$2.00

1223

Elastic Stop Nut M6

232561434

$1.78

1240

Black, LH Lower Mudguard | LTD

705008668

$34.86

1240

Black, RH Lower Mudguard | LTD

705008669

$34.86

1261

Stainless, Torx Screw M6 X 30

250000842

$2.00

1262

Stainless Steel Flat Washer

234062670

$2.00

1263

Elastic Stop Nut M6

232561434

$1.78

1264

Stainless, Torx Screw M6 X 30

250000842

$2.00

1320

Black, LH Rear Lower Mudguard | LTD

705008670

$34.86

1320

RH Rear Lower Black Mudguard | LTD

705008672

$34.86

1341

Torx Screw M6 X 20

250000712

$2.00

1343

Stainless Steel Flat Washer

234062670

$2.00

1344

Elastic Stop Nut M6

232561434

$1.78

1345

Hardened Washer

706200281

$2.69

1347

Torx Screw M6 X 20

250000712

$2.00

2000

Middle Protector Plate

705007055

$74.60

2020

Rear Protector Plate

705007056

$110.42

2040

Rear Protector Plate

705007227

$29.82

2050

RH Lateral Skid Plate

705007038

$59.67

2055

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2060

Cup | Package Hunter

705007171

$6.00

2070

Hexagonal Head Screw

210262050

$2.00

2075

Flat Washer

250200097

$2.00

2080

Hexagonal Head Screw

210262050

$2.00

3620

Pad

291001932

$9.84

3700

Push Nut

250100031

$6.66
