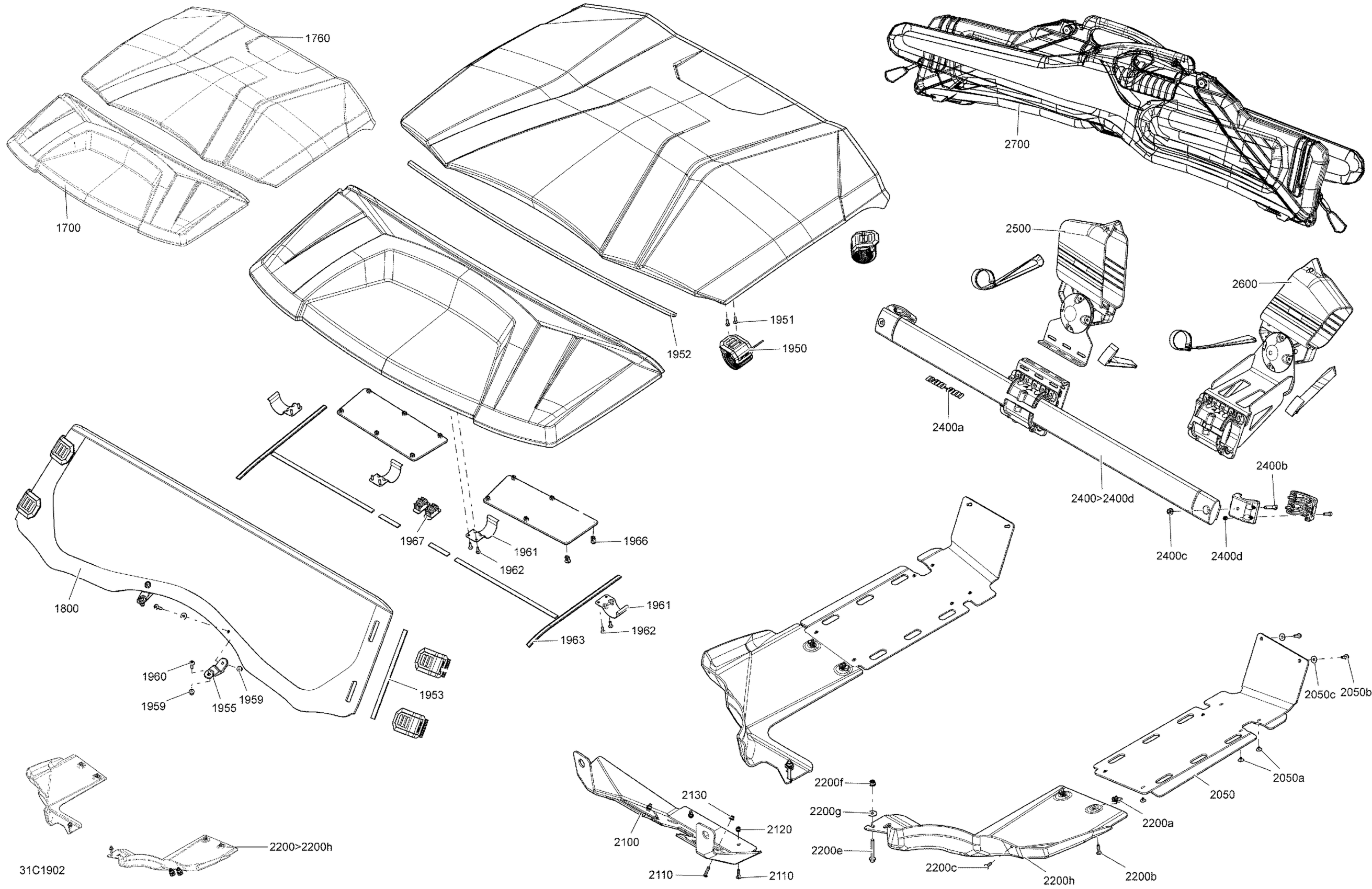

Can-Am Commander 1000R EFI - 2019 Body And Accessories - Accessories - Hunting Edition Diagram

#

Description
Price

1700

Roof Visor Ass'y

715001952

Unavailable

1700a

U Brace Strip | LTD

705009030

$17.88

1700c

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1700d

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

1700f

Tuflok Plastic Rivet

293150230

$1.39

1760

Mid Roof Kit

715001949

$614.15

1760b

Seal Tray 1000Mm Long

219704368

$12.30

1760c

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1760

Mid Roof Kit

715001949

$614.15

1800

Windshield Half Ass'y

703501024

$281.31

1950

Retainer Velcro Perforated

705013420

$39.52

1951

Torx Screw K50 X 16

250000720

$1.60

1952

Seal Tray 1000Mm Long

219704368

$12.30

1953

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1954

J Clip

705011349

$8.60

1955

Windshield Support

705006537

Unavailable

1956

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1959

Hex. Flange Elastic Nut M6

233261494

$1.45

1960

Torx Truss Screw M6 X 20

250000488

$2.00

1961

U Brace Strip | LTD

705009030

$17.88

1962

Torx Screw K50 X 16

250000720

$1.60

1963

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1966

Tuflok Plastic Rivet

293150230

$1.39

1967

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

1969

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1970

Hex. Flange Elastic Nut M6

233261494

$1.45

2050

LH Rear Skid Plate | Package Hunter

715001640

$224.49

2050a

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2050b

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

2050c

Flat Washer M6, Stainless

234062600

$0.73

2055

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

2100

Front Protector | Package Hunter

705205448

$358.93

2110

Torx Truss Screw M6 X 25

250000807

$2.00

2120

Insert Half Hex Body M6 x 1.0

250100199

$2.91

2130

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

2200

Side Skid Plate Kit | Package Hunter

715002494

$331.49

2200a

Panel Nut M8

250100111

$3.88

2200b

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

2200c

Torx Truss Screw M6 X 30

250000843

$2.00

2200d

Torx Truss Screw M8 X 50

250000761

$7.09

2200e

Hex. Flange Screw, M8 X 65

207686544

$11.18

2200f

Hex. Flange Elastic Nut M8

233281414

$1.31

2200g

Flat Washer 8 mm

234082410

$1.27

2200h

SUPPORT PLATE - Call your local BRP dealership

705009032

Unavailable

2400

SUPPORT MULTI FUNCTION - Call your local BRP dealership

715001320

Unavailable

2400a

Decal "Can-Am" | Not Shown

704904566

$8.97

2400b

Hex. Screw M8 X 35

207083544

$1.06

2400c

Hex. Flange Nut M8

233181414

$1.04

2400d

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.55

2500

Gun Boot Support

715001420

$106.99

2600

2ND Gun Boot Support

715001586

$162.44

2700

Gun Boot kit | Package Hunter

715001419

$109.24
