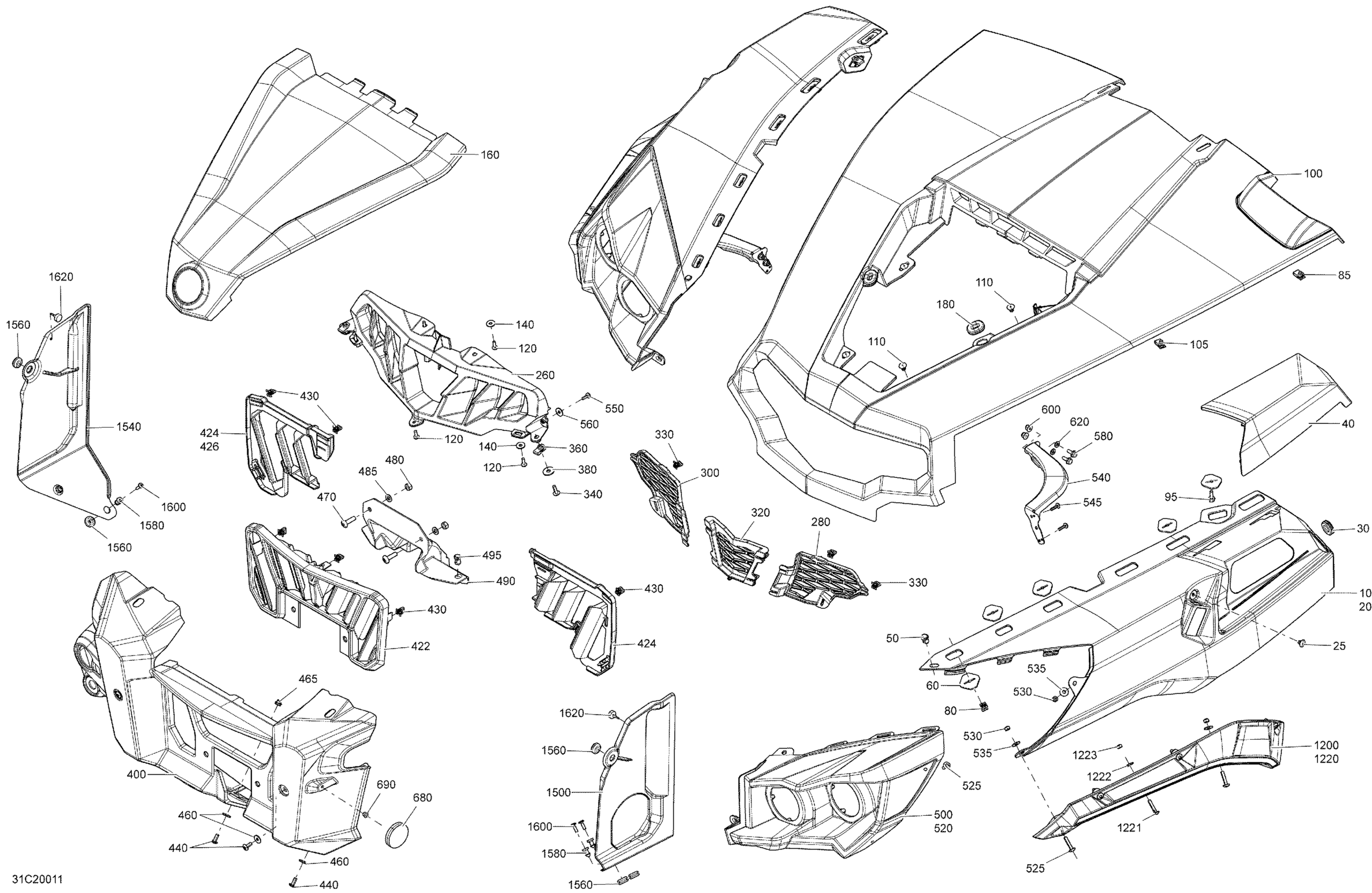

Can-Am Commander 1000R EFI - 2020 Body - Front Section - Asphalt Grey Diagram

#

Description
Price

10

Asphalt Grey, LH Front Fender

705014505

$409.99

20

Asphalt Grey, RH Front Fender

705014506

$409.99

25

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

Grommet

517303756

$4.09

40

Asphalt Grey, CVT Inlet Cover

705014509

$189.99

50

Tuflok Plastic Rivet

293150230

$1.47

60

Support Plate

705003841

$0.99

80

Edge Clip

517302785

$0.88

85

Panel Nut M6 X 1.0

250100198

$2.11

95

Hex. Flange Screw M6 X 20

207662054

$1.01

100

Asphalt Grey, Hood

705014508

$979.99

105

Panel Nut M6 X 1.0

250100198

$2.11

110

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

120

Torx Screw K50 X 16

250000720

$1.69

140

Stainless Steel Flat Washer

234062670

$2.11

160

Asphalt Grey, Hood

705014507

$509.99

180

Oval Washer

705005156

$4.97

260

FASCIA UP B-160 - Call your local BRP dealership

705003629

$20.99

280

LH Upper Facia Protector

705004350

$4.09

300

RH Upper Facia Protector

705004351

$4.09

320

Center Upper Facia Protector

705004336

$4.09

330

Edge Clip

517302785

$0.88

340

Torx Screw M6 X 20

250000722

$1.68

360

Panel Nut M6 X 1.0

250100198

$2.11

380

Flat Washer 8 mm

234082410

$1.47

400

Black Front Facia

705008689

$104.99

422

Lower Front Facia Protector

705004755

$18.49

424

LH Lower Rear Facia Protector

705004819

$18.49

426

RH Lower Rear Facia Protector

705004820

$18.49

430

Edge Clip

517302785

$0.88

440

Torx Screw M6 X 16

250000755

$0.87

460

Stainless Steel Flat Washer

234062670

$2.11

465

Insert Half Hex Body M6 x 1.0

250100199

$3.19

470

Hex Torx Truss M8 X30

250000745

$3.17

480

Hex. Nut M8

232081414

$0.72

485

Flat Washer 8 mm

234081410

$0.83

490

Bottom Deflector | Except XT Models

705003399

$14.99

495

Tuflok Plastic Rivet

293150230

$1.47

500

LH Front Facia

705002885

$74.99

520

RH Front Facia

705002886

$74.99

525

Stainless, Torx Screw M6 X 30

250000842

$2.11

530

Elastic Stop Nut M6

232561434

$1.99

535

Stainless Steel Flat Washer

234062670

$2.11

540

Facia Front Support

705002891

$38.99

545

Torx Screw Truss Head K50X20 T20

250000760

$2.11

550

Torx Screw K50 X 16

250000720

$1.69

560

Stainless Steel Flat Washer

234062670

$2.11

580

Hex. Flange Screw M6 X 16

207661644

$0.74

600

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

620

Stainless Flat Washer M6

234061600

$0.33

680

Amber Reflector | Except Europe Model

705011222

$14.49

690

Flange Elastic Nut M5

233251434

$2.00

1200

Black, LH Upper Front Mudguard | LTD

705008666

$34.99

1220

Black, RH Upper Front Mudguard | LTD

705008667

$34.99

1221

Stainless, Torx Screw M6 X 30

250000842

$2.11

1222

Stainless Steel Flat Washer

234062670

$2.11

1223

Elastic Stop Nut M6

232561434

$1.99

1500

LH Deflector | XT

705005113

$16.99

1540

RH Deflector

705002894

$19.99

1560

Grommet

709000582

$4.69

1580

Knob

517303439

$4.55

1600

Torx Screw K50 X 16

250000720

$1.69

1620

Rubber Stopper

708000759

$4.19
