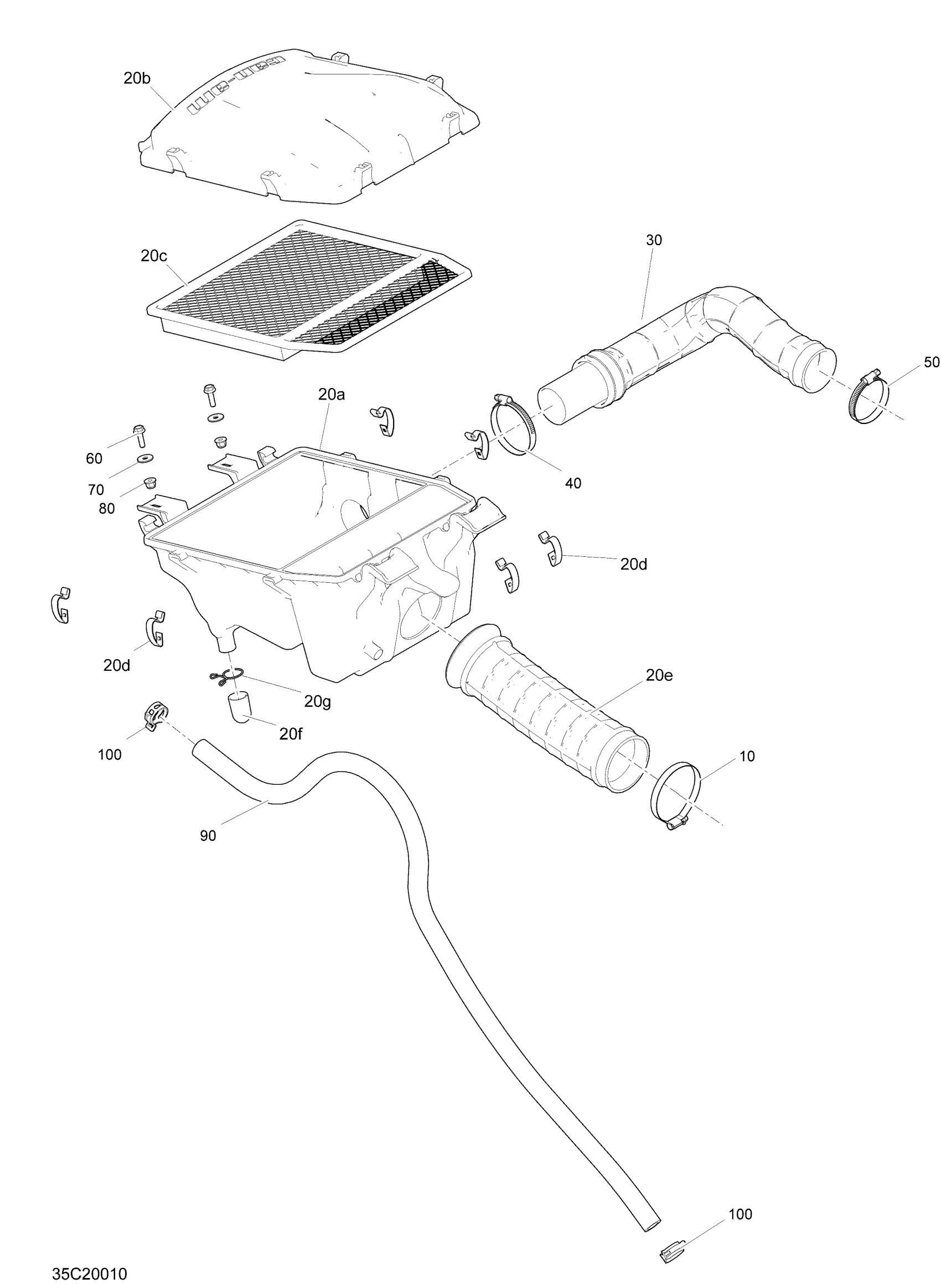

Can-Am Commander 800R EFI - 2020 Air Intake Diagram

Description

Price

Norma Clamp

293650091

$10.54

20a

Air Intake Silencer Base

707800517

$49.22

20b

Air Intake Silencer Cover

707800326

$29.82

20c

Air Filter

707800327

$49.22

20d

Cover Bracket

707800249

$7.67

20e

Intake Adaptor

707800329

$43.25

20f

Drain Tube

707800080

$6.99

20g

Retainer Clip

707800278

$12.30

Intake Adaptor

707800322

$55.19

Norma Clamp

293650079

$10.21

Norma Clamp

293650077

$7.01

Hex. Flange Screw M6 X 20

207662044

$1.91

Flat Washer

250200082

$0.40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Was 707800411 Hose 15.88 mm

219704438

$11.57

100

Norma Spring Clamp

293650213

$3.01
