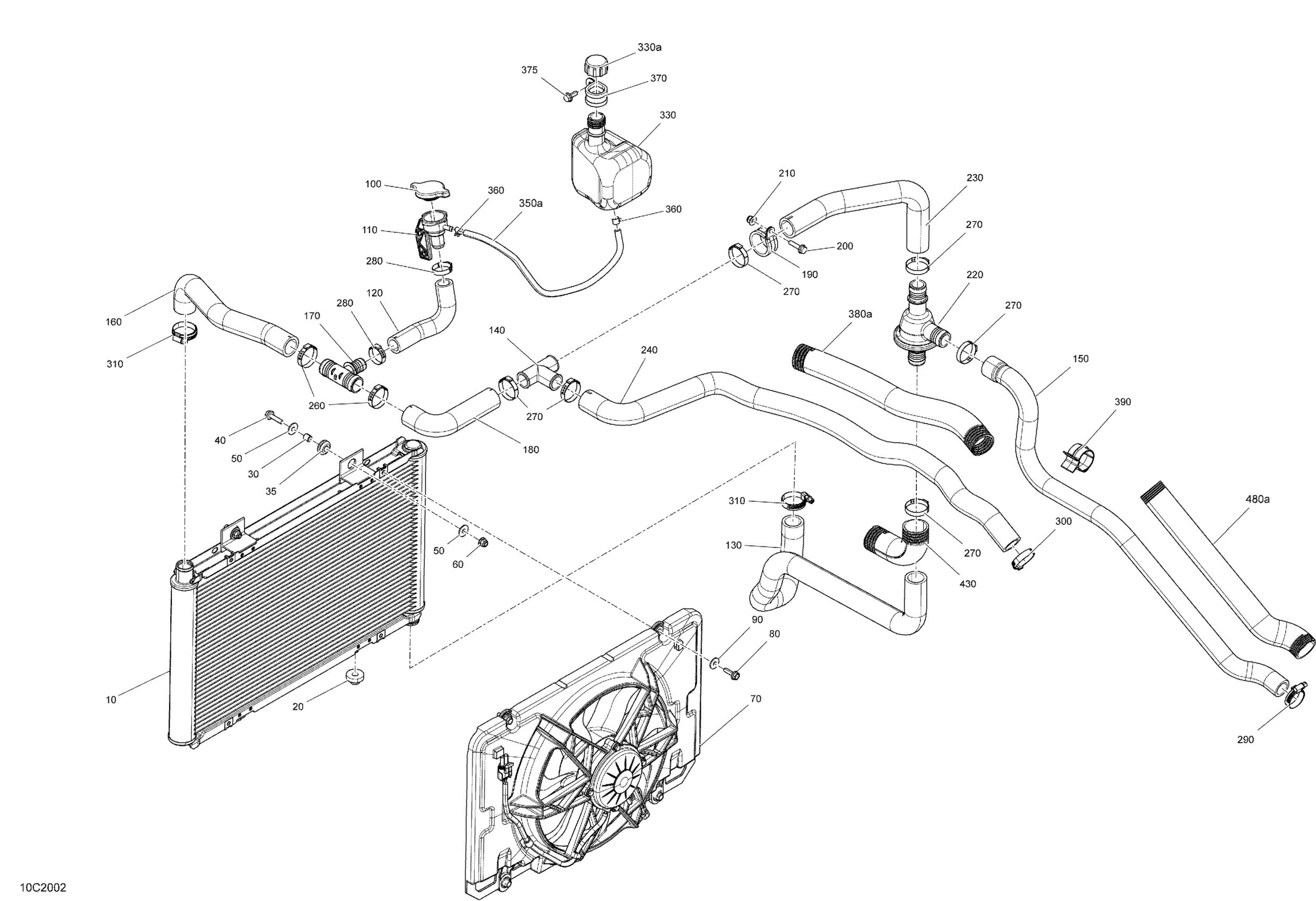

Can-Am Commander 1000R EFI - 2020 Cooling - System Diagram

#

Description
Price

10

Radiator

709200395

$359.97

20

Grommet

709200285

$7.09

30

Bushing

293900105

$6.26

35

Grommet

709000582

$4.38

40

Hex. Flange Screw M6 X 25

207662534

$1.74

50

Flat Washer

250200082

$0.35

60

Flange Elastic Nut M6

233261434

$3.61

70

Fan Ass'y

709200566

$267.66

80

Hex. Flange Screw M6 X 20

207662044

$1.66

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

110

Filler Neck

709200179

$17.66

120

Filler Neck Hose

709200264

$10.14

130

Hose_Radiator In

709200909

$23.05

140

T-Fitting

509000219

$15.35

150

Pump Hose

709200441

$36.89

160

Radiator Outlet Hose

709200265

$10.98

170

T-Fitting

509000372

$7.87

180

Intermediate Hose

709200904

$23.05

190

Hose Retainer

293650218

$8.45

200

Hex. Flange Screw M6 X 25

207662534

$1.74

210

Flange Elastic Nut M6

233261434

$3.61

220

Thermostat

709200406

$77.32

230

Hose

709200447

$24.58

240

Intermediate Hose

709200382

$27.66

260

Gear Clamp

509000162

$5.84

270

Gear Clamp

509000162

$5.84

280

Crimp Clamp

293650099

$4.60

290

Norma Gear Clamp

293650098

$4.28

300

Norma Gear Clamp

293650098

$4.28

310

Norma Gear Clamp

293650098

$4.28

330

Coolant Tank Ass'y

709200624

$96.89

330a

Tank Cap

709200587

$5.29

350a

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

360

Spring Clamp

414554800

$0.83

370

Hose Anchor

709200036

$10.83

375

Hex. Flange Screw M6 X 16

207661644

$0.61

380a

Tubing 35 MM 1000MM Long

219704428

$8.57

390

Retainer

275500590

$7.18

430

Tubing 35 MM 1000MM Long

219704428

$8.57

480a

Tubing 35 MM 1000MM Long

219704428

$8.57
