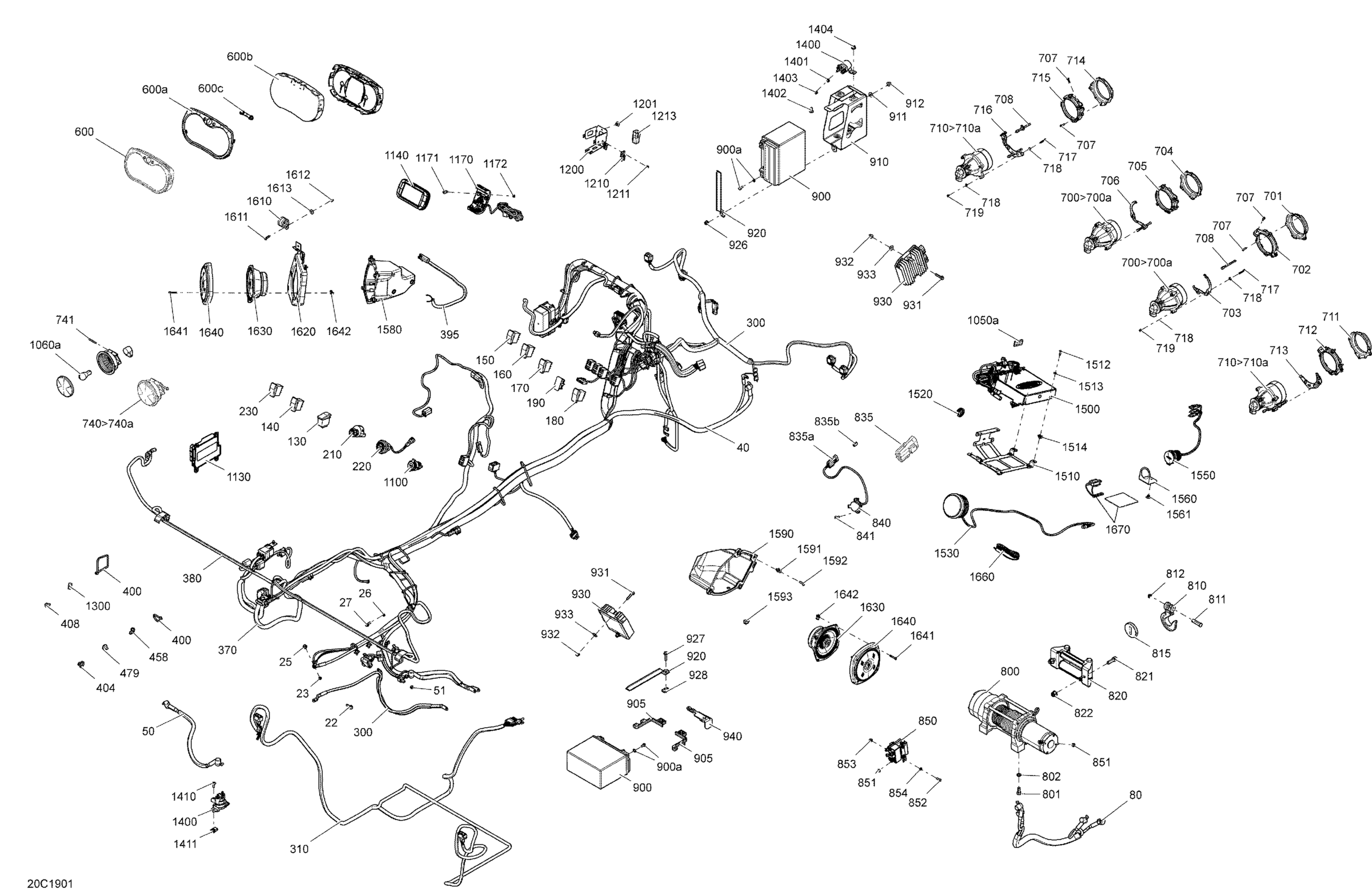

Can-Am Commander 1000R EFI - 2019 Electrical - LTD Diagram

#

Description
Price

22

Hex. Flange Screw M6 X 20

207662044

$1.91

23

External Serrated Lock Washer 6 mm

234461608

$1.06

25

Hex. Flange Nut M6

233061414

$1.54

26

External Serrated Lock Washer 6 mm

234461608

$1.06

27

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

40

Winch Cable (-/+) | XT

710005123

$82.06

50

Positive Cable

710004383

$38.03

51

Elastic Stop Nut M6

232561414

$1.78

80

Electrical Winch Cable | XT

710004387

$44.75

130

Switch, Over ride

710002053

$19.27

140

Hi/Low Switch | Except Europe

710001725

$21.49

150

4X4 Switch

710001737

$29.82

160

Switch PPS Sport

710003541

$17.88

170

Switch DPS

710001781

$22.24

180

Switch Winch

710002052

$28.18

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

210

Ignition Switch

710008400

$72.36

220

Engine Start Button

710002594

$55.94

300

Harness Ass'y

710006089

$1,073.85

310

Rear Harness

710004681

$90.27

380

Radio Harness

710004339

$102.21

395

Speaker Harness | Includes 1 to S+

710004340

$21.61

408

Mount Dart

293730040

$0.99

600

Speedometer | Package Hunter, XT, XTP

710005653

$394.00

600a

Gauge Ring

415129348

$11.36

600b

Lens | XTP

415129349

$22.36

600c

Speedometer Button | XTP

415129355

$13.52

700

Low Beam Ass'y | Includes 1 to 2

710002524

$132.81

700a

Halogen Bulb

415129249

$38.78

701

RH Low Front Housing

710001081

$16.39

702

RH Low Rear Housing

710001082

$10.55

703

RH Low Light Support

710001094

$8.15

704

LH Low Front Housing

710001083

$16.39

705

LH Low Rear Housing

710001084

$10.55

706

LH Low Light Support

710001037

$8.15

707

Phillips Screw K40 X 16

250000723

$0.93

708

Setting Screw

710001147

$11.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

Halogen Bulb

415129249

$38.78

711

RH High Front Housing

710001085

$16.39

712

RH High Rear Housing

710001086

$10.55

713

RH High Light Support

710001115

$4.76

714

LH High Front Housing

710001087

$16.39

715

LH High Rear Housing

710001088

$10.55

716

LH High Light Support

710001036

$4.76

717

Hex. Screw M4 X 25

207142544

$1.87

718

Flat Washer M5

234051410

$0.51

719

Elastic Stop Nut M4

232541414

$0.55

740

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

740a

Bulb

520000758

$8.60

741

Hex. Screw K50 X 45

241154540

$2.00

800

Winch_Electric | Package Hunter, XT, XTP

710007030

$626.09

801

Socket Head Screw M8 X 20

205082044

$1.06

802

Lock Washer 8 mm

234181401

$0.87

810

Winch Hook Kit

705014949

$23.10

811

Winch Hook Kit

705014949

$23.10

812

Winch Hook Kit

705014949

$23.10

815

Stopper

710007028

$9.88

820

Fairlead Roller

710007082

$55.19

821

Socket Screw M10 x 30 | XT

205003044

$3.00

822

Hex. Flange Elastic Nut M10

233201414

$1.45

835

Connector Ass'y | XT, Includes 55 to 57

710001059

$8.42

835a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

835b

Clip

710000992

$3.88

840

Wiring Harness_Switch Winch | Package XT

710007053

$54.45

841

Torx Screw K50 X 16

250000720

$1.60

850

Solenoid

710006991

$57.43

851

Elastic Stop Nut M6

232561434

$1.78

852

Hex. Screw M5 X 16 | 4X4

207151644

$0.85

853

Elastic Flange Nut M5

233251494

$2.00

854

Flat Washer M5

234051410

$0.51

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900a

Battery Bolt Kit

250000282

$3.39

910

Battery Support

710003129

$44.00

911

Flat Washer 6 mm

234062410

$0.73

912

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

920

Battery Holder

710001916

$16.39

926

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

930

Voltage Regulator

710005842

$183.55

931

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

932

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

933

Stainless Steel Flat Washer

234062670

$2.00

1100

DC Outlet

710001248

$35.79

1140

GPS | Package LTD North America

710005034

$809.99

1170

GPS Support | LTD Model

710003210

$191.76

1171

Torx Head Screw M4 X 16

250000797

$1.87

1172

Elastic Stop Nut M4

232541484

$0.70

1200

Fuse Holder

710003335

$8.60

1201

Pop Rivet 3/16"

293150103

$0.52

1210

Clip

270000141

$9.57

1211

Pop Rivet 3/16"

390402400

$0.28

1213

Connector Plug

710004904

$8.30

1300

Clip

414227300

$1.40

1400

Starter Relay

710007777

$45.49

1401

Lock Washer Helical M6

234161601

$1.06

1402

Torx Head Screw M6 X 16

250000717

$2.00

1403

Hex. Nut M6

232061600

$1.04

1404

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

1500

Amplifier

710005442

$462.49

1510

Amplifier Support

710002556

$103.70

1512

Torx Screw M4 X 16

250000750

$1.57

1513

Flat Washer 4 mm, Stainless

234042600

$1.06

1514

Extruded Panel Nut M4 X 0.7

250100143

$7.78

1520

Grommet Boot

710002926

$4.22

1530

Radio Interface

710002549

$361.16

1550

USB Extension

710002551

$123.10

1560

USB Extension Support

710002731

$16.39

1561

Pop Rivet 3/16"

293150103

$0.52

1580

LH Speaker HSG

705012294

$15.64

1590

RH Speaker HSG

705012293

$15.64

1591

Panel Nut M5 X 0.8

250000958

$4.00

1592

Torx Screw M5 X 20

250000724

$1.60

1593

Clip

414227300

$1.40

1610

Hose Anchor

709200036

$10.51

1611

Torx Screw M5 X 20

250000724

$1.60

1612

Elastic Flange Nut M5

233251494

$2.00

1613

Washer M5

250200025

$0.70

1620

Speaker Box Plate

710002789

$14.33

1630

Front Speaker

710003233

$92.99

1640

Speaker Cover

710002790

$12.64

1641

Socket Head Screw M4 X 25

205042560

$2.12

1642

Extruded Panel Nut M4 X 0.7

250100143

$7.78

1660

Antenna

710002810

$10.51

1670

BlueTooth Module

710005958

$17.13
