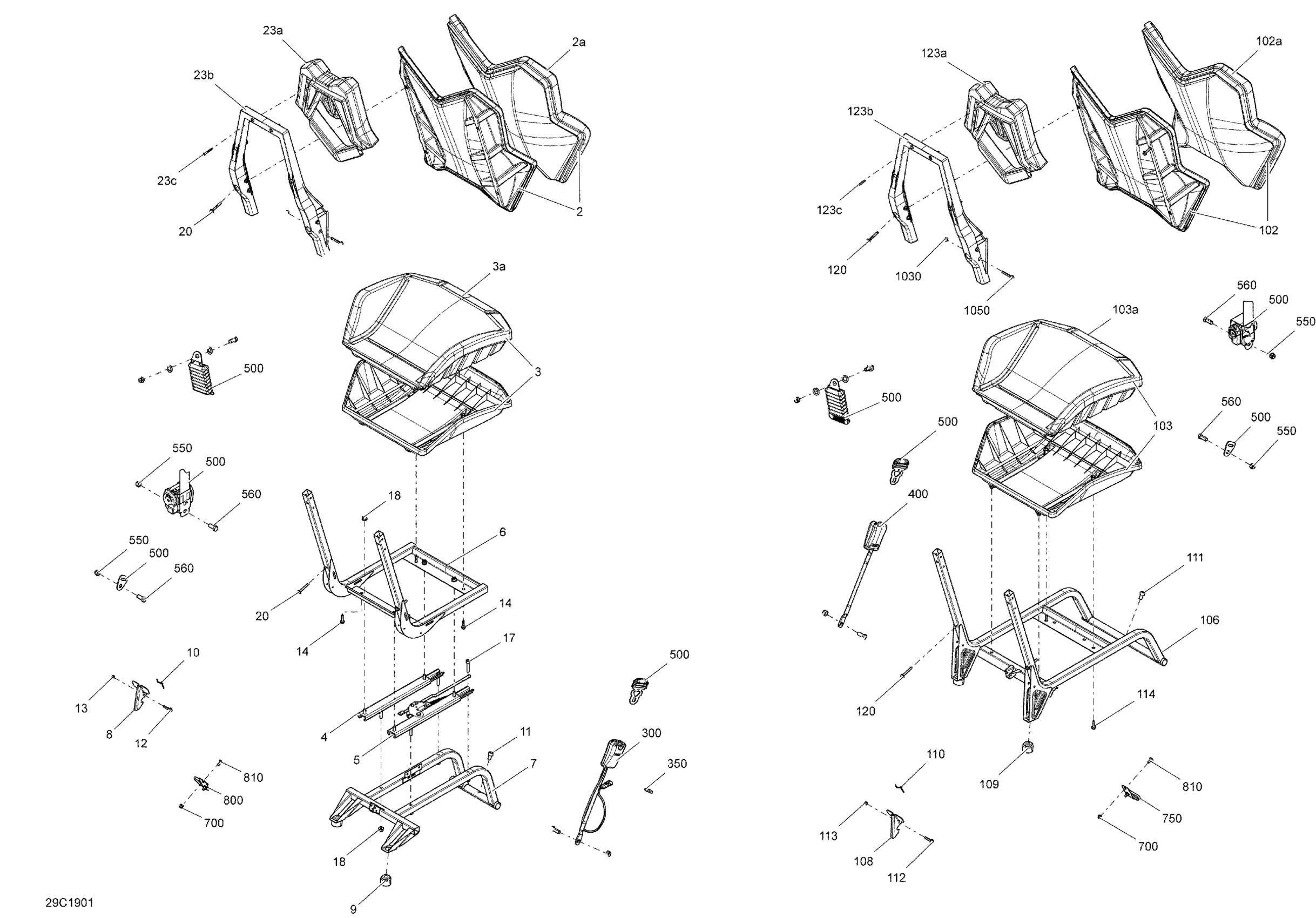

Can-Am Commander 800R EFI - 2019 Seat Diagram

#

Description
Price

2

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

2

Backrest Ass'y Black | XTP

708002246

$349.99

2

Backrest Ass'y | Package LTD

708002616

$394.00

2a

Backrest Cover

708000675

$97.99

2a

Backrest Cover Black | XTP

708002248

$128.99

2a

Backrest Cover | Package LTD

708002618

$142.51

3

Cushion Ass'y | Includes 4 to 5

703500943

$314.90

3

Cushion Ass'y Black | XTP

708002247

$280.57

3

Cushion Ass'y | Package LTD

708002617

$280.57

3a

Seat Cover

708001103

$117.99

3a

Cushion Cover Black | XTP

708002249

$81.49

3a

Seat Cover | Package LTD

708002619

$91.76

4

LH Rail

708000848

$52.99

5

RH Rail

708001739

$35.99

6

Operator Seat Frame

708001356

$296.24

7

Seat Member

708000667

$56.99

8

Seat Latch

708001355

$2.59

9

Rubber Bumper

708001671

$2.13

10

Spring

708000921

$0.96

11

Socket Screw M10 X 16

205501644

$3.88

12

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

13

Hex. Elastic Stop Nut M6

232561600

$1.06

14

Hex. Flange Screw M6 X 25

207562544

$1.60

17

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

18

Hex. Flange Elastic Nut M8

233281414

$1.31

20

Hex. Flange Screw M6

250000672

$2.00

23a

Head Rest

708001074

$91.01

23b

Seat Support

708001245

$26.09

23c

Hex. Flange Screw K50 X 40

250000897

Unavailable

102

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

102

Backrest Ass'y Black | XTP

708002246

$349.99

102

Backrest Ass'y | Package LTD

708002616

$394.00

102a

Backrest Cover

708000675

$97.99

102a

Backrest Cover Black | XTP

708002248

$128.99

102a

Backrest Cover | Package LTD

708002618

$142.51

103

Cushion Ass'y | Includes 4 to 5

703500943

$314.90

103

Cushion Ass'y Black | XTP

708002247

$280.57

103

Cushion Ass'y | Package LTD

708002617

$280.57

103a

Seat Cover

708001103

$117.99

103a

Cushion Cover Black | XTP

708002249

$81.49

103a

Seat Cover | Package LTD

708002619

$91.76

106

Passenger Seat Frame

708001357

$319.99

108

Seat Latch

708001355

$2.59

109

Rubber Bumper

708001671

$2.13

110

Spring

708000921

$0.96

111

Socket Screw M10 X 16

205501644

$3.88

112

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

113

Hex. Elastic Stop Nut M6

232561600

$1.06

114

Hex. Flange Screw M6 X 25

207562544

$1.60

120

Hex. Flange Screw M6

250000672

$2.00

123a

Head Rest

708001074

$91.01

123b

Seat Support

708001245

$26.09

123c

Hex. Flange Screw K50 X 40

250000897

Unavailable

300

Driver Buckle Side

708002061

$70.99

400

Passenger Buckle Side | Model-North America, International

708002062

$53.99

500

Safety Belt

708002644

$260.42

550

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$6.70

560

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.79

700

Insert Half Hex Body M6 x 1.0

250100199

$2.91

750

Retaining Rod RH

708002303

$13.45

800

Retaining Rod LH

708002302

$13.45

810

Torx Head Screw M6 X 16

250000717

$2.00

900

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$6.70

910

Safety Belt Screw

708000890

$3.79

920

Position Washer

708000891

$0.97

930

Hex. Elastic Flange Nut M6

233161464

$0.96

940

Hex. Flange Screw M6

250000672

$2.00
