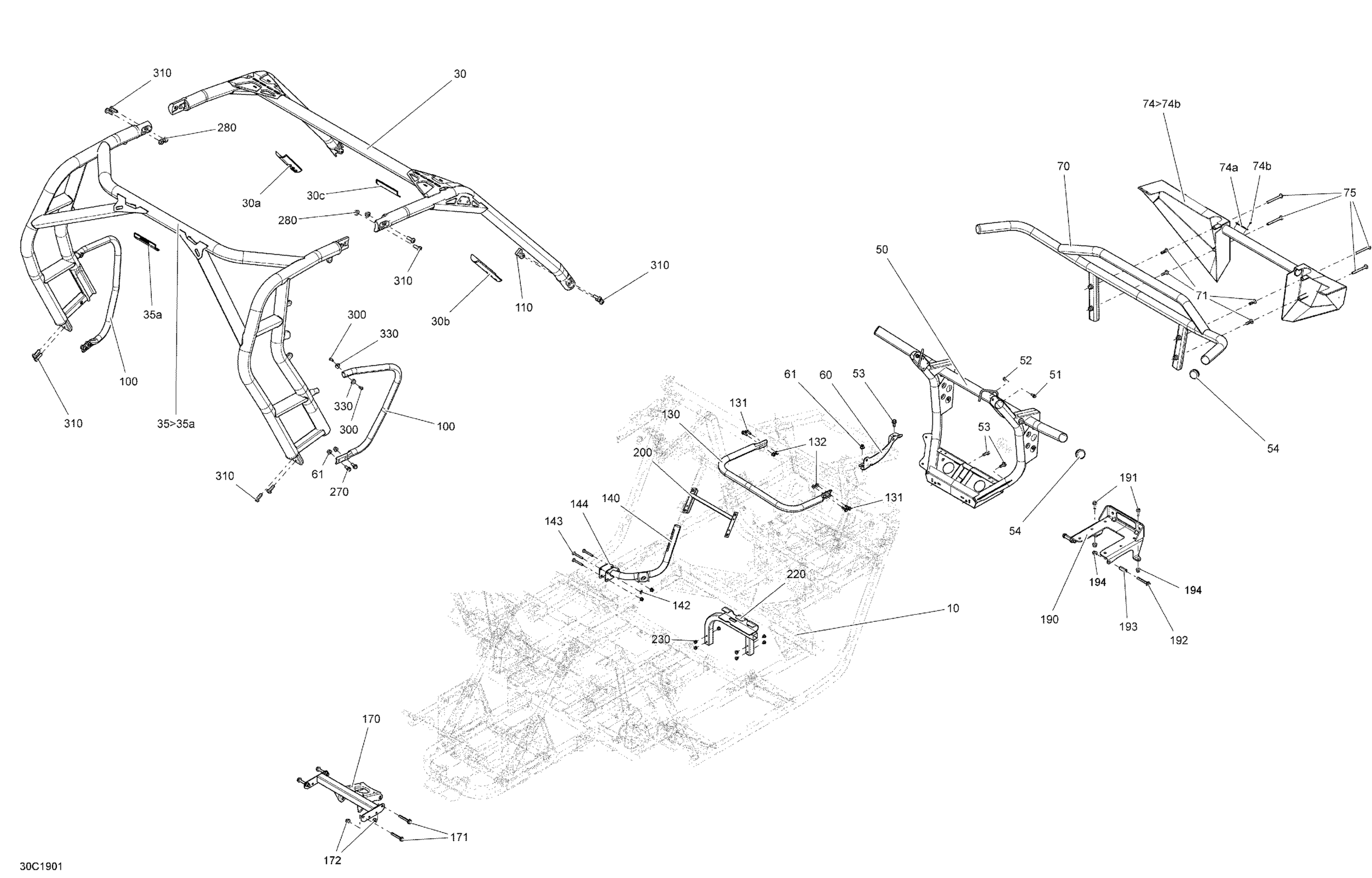

Can-Am Commander 800R EFI - 2019 Frame Diagram

#

Description
Price

10

Black, Frame

715004811

$2,319.99

10a

Seat Support

705202602

$3.81

30

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

30a

Warning Label

704903679

Unavailable

30b

Warning Label

704903680

Unavailable

30

Gulfstream Blue, Cage Ass'y | Blue Cage Model

715004818

$1,039.99

30a

Warning Label

704903679

Unavailable

30b

Warning Label

704903680

Unavailable

35

Deep Black, Cage Ass'y | Includes 2 to 8

715004812

$1,039.99

35a

Warning Label

704903492

Unavailable

35b

Insert Half Hex Body M6 x 1.0

250100199

$2.91

35

Gulfstream Blue, Cage Ass'y | Blue Cage Model

715004818

$1,039.99

35a

Warning Label

704903492

Unavailable

35b

Insert Half Hex Body M6 x 1.0

250100199

$2.91

50

Black Front Bumper

705202995

$384.27

51

Hex. Flange Screw M6 X 16

207661644

$0.70

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

53

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

54

Cap

705202455

$4.27

60

Front Differential Support

705201721

$17.88

61

Hex. Flange Elastic Nut M8

233281414

$1.31

62

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

70

Black Front Bumper | XT, X

715000958

$293.07

70

Black Front Bumper | XT, X

715000958

$293.07

70

Gulfstream Blue, Front Bumper | Package XT, Gulfstream Blue

705207280

$206.69

71

Hex Torx Truss M8 X30

250000745

$2.96

74

Front Bumper | Package Hunter

705010664

$508.93

74a

Can Am Logo

704902307

Unavailable

74b

Pop Rivet 1/8", Black

293150189

$0.24

75

Torx Screw, M8 X 80

250000442

$7.06

83

Cap

705202455

$4.27

100

TUBE RH B-160 PAINTED - Call your local BRP dealership | Right

705203640

$39.52

100

Blue RH Side Protector Tube | Blue Cage Model

705204817

Unavailable

110

Binding Block

705203415

$16.39

120

TUBE LH B-160 PAINTED - Call your local BRP dealership | Left

705203637

Unavailable

120

TUBE LH B-352 PAINTED - Call your local BRP dealership | Blue Cage Model

705204816

Unavailable

130

Black Handle

705203332

$122.36

131

Hex. Flange Screw M6 X 20

207662046

$2.00

132

Elastic Flange Nut M6 X 1.0

233261416

$2.00

140

Black Console Handle

705204399

$125.34

142

Elastic Flange Nut M6 X 1.0

233261416

$2.00

143

Torx Screw M6 X 50

250000317

$2.00

144

Steel Plate

705204606

$8.84

170

Differential Holder

705203538

$34.30

171

Hex. Flange Screw M8 X 55

207685544

$5.06

172

Hex. Flange Elastic Nut M8

233281414

$1.31

190

Winch Plate | XT

715000704

$122.36

192

Hex. Flange Screw M8 x 60

207686044

$2.94

193

Bushing

705202499

$6.16

194

Hex. Flange Elastic Nut M8

233281414

$1.31

200

Reinforcement Panel

705203330

$138.03

230

Hemlock Rivet, 6.5 mm

293150096

$3.07

280

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.00

300

Torx Truss M6X14

250000789

$5.06

310

Screw Pan M10 X 30

250000848

$1.79

330

Offset Washer

705202223

$4.09

350

Hex. Flange Screw M8 X 20

207682044

$1.06

360

Hex. Flange Elastic Nut M8

233281414

$1.31
