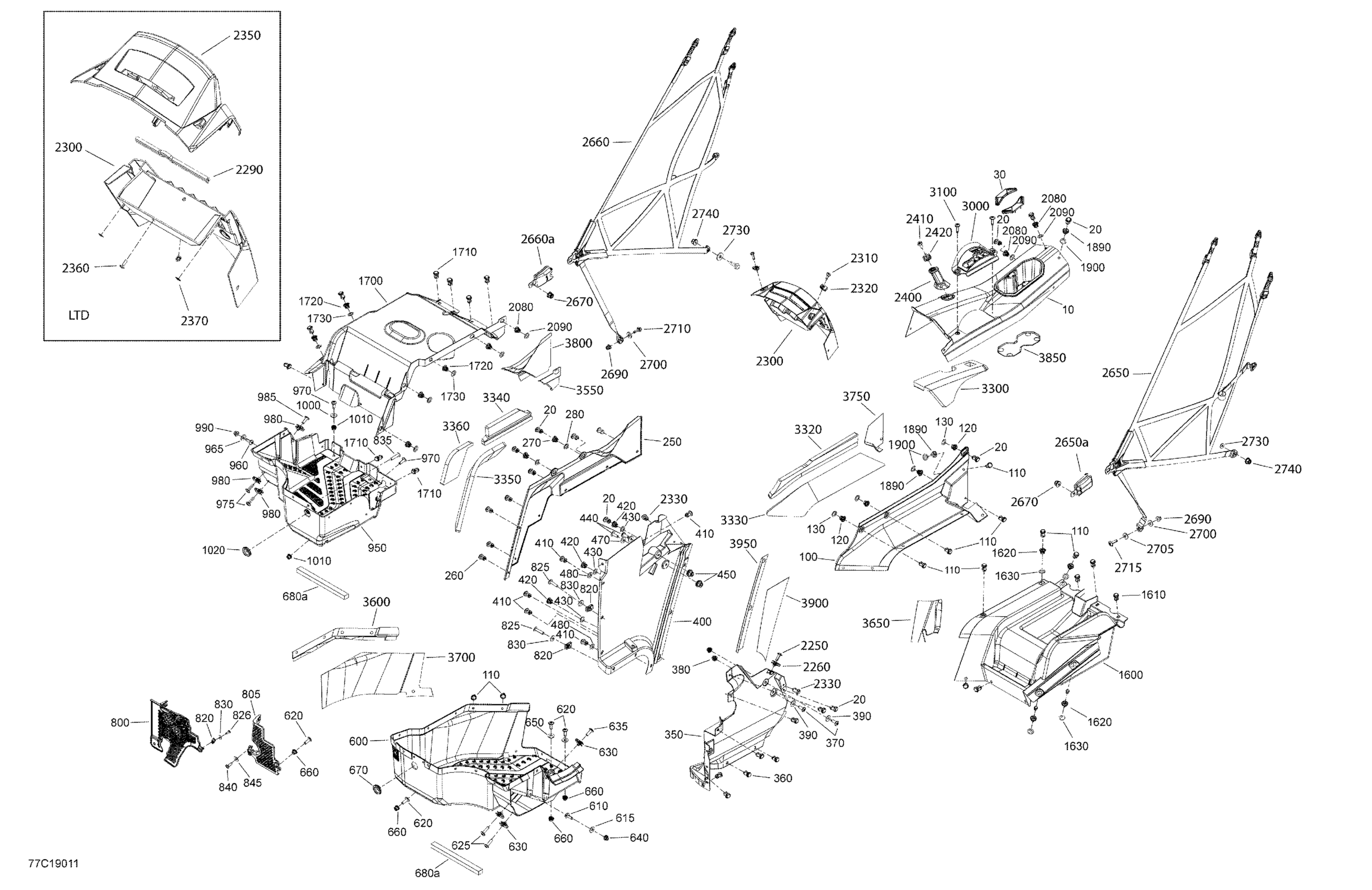

Can-Am Commander 800R EFI - 2019 Cab Interior Commander - Lower Section Diagram

#

Description
Price

10

Center Console Assembly | Except Package LTD

715006466

$139.52

10

Center Console Assembly | Except Package LTD

715006466

$139.52

20

Tuflok Plastic Rivet

293150230

$1.39

30

Cup Retainer

707900036

$6.19

100

LH Side Console

707900001

$40.27

110

Tuflok Plastic Rivet

293150230

$1.39

120

Insert

707900133

$2.89

130

Washer

503189273

$3.10

250

RH Side Console

707900002

$32.81

260

Tuflok Plastic Rivet

293150230

$1.39

270

Insert

707900133

$2.89

280

Washer

503189273

$3.10

350

Front Side Dash Panel

707900193

$62.66

360

Tuflok Plastic Rivet

293150230

$1.39

370

Torx Screw M6 X 20

250000722

$1.54

380

Insert Half Hex Body M6 x 1.0

250100199

$2.91

390

Stainless Steel Flat Washer

234062670

$2.00

400

RH Fixe Side Console

707900021

$68.63

400

RH Fixe Side Console | LTD Model

707900098

$79.07

410

Tuflok Plastic Rivet

293150230

$1.39

420

Insert

707900133

$2.89

430

Washer

503189273

$3.10

440

Torx Screw M6 X 20

250000722

$1.54

450

Insert Half Hex Body M6 x 1.0

250100199

$2.91

470

Stainless Steel Flat Washer

234062670

$2.00

480

Washer

506151252

$3.01

600

LH Lower Floor

707900022

$241.01

610

Torx Screw M6 X 20

250000712

$2.00

615

Stainless Steel Flat Washer

234062670

$2.00

620

Torx Screw M6 X 20

250000722

$1.54

625

Torx Truss Screw M6 X 25

250000807

$2.00

630

Panel Nut M6 X 1.0

250100198

$1.99

635

Torx Screw M6 X 20

250000722

$1.54

640

Hex. Flange Elastic Nut M6

233261494

$1.45

650

Stainless Steel Flat Washer

234062670

$2.00

660

Insert Half Hex Body M6 x 1.0

250100199

$2.91

670

Rubber Cover

293250242

$5.18

680a

SEAL-TRAY 300MM LONG - Call your local BRP dealership

219704380

Unavailable

800

Grille

707900178

$8.91

805

Grille

707900180

$8.91

820

Panel Nut M6 X 1.0

250100198

$1.99

825

Torx Truss Screw M6 X 30

250000843

$2.00

826

Torx Screw M6 X 20

250000722

$1.54

830

Stainless Steel Flat Washer

234062670

$2.00

835

Torx Truss Screw M6 X 30

250000843

$2.00

840

Torx Screw K50 X 16

250000720

$1.60

845

Washer M5

250200025

$0.70

950

RH Lower Floor

707900023

$172.36

960

Torx Screw M6 X 20

250000712

$2.00

965

Stainless Steel Flat Washer

234062670

$2.00

970

Torx Screw M6 X 20

250000722

$1.54

975

Torx Truss Screw M6 X 25

250000807

$2.00

980

Panel Nut M6 X 1.0

250100198

$1.99

985

Torx Screw M6 X 20

250000722

$1.54

990

Hex. Flange Elastic Nut M6

233261494

$1.45

1000

Stainless Steel Flat Washer

234062670

$2.00

1010

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1020

Rubber Cover

293250242

$5.18

1600

LH Under Seat Plate

707900218

$73.10

1610

Tuflok Plastic Rivet

293150230

$1.39

1610

Tuflok Plastic Rivet

293150230

$1.39

1620

Insert

707900133

$2.89

1630

Washer

503189273

$3.10

1700

RH Under Seat Plate

707900006

$100.72

1710

Tuflok Plastic Rivet

293150230

$1.39

1720

Insert

707900133

$2.89

1730

Washer

503189273

$3.10

1890

Insert

707900133

$2.89

1900

Washer

503189273

$3.10

2080

Insert

707900133

$2.89

2090

Washer

503189273

$3.10

2250

Torx Screw M6 X 20

250000722

$1.54

2260

Panel Nut M6 X 1.0

250100198

$1.99

2290

Was 271000110 Protection Trim

219704353

$14.58

2300

Central Dashboard Ass'y

715002178

Unavailable

2300

Central Dashboard Ass'y

715002187

$34.30

2310

Torx Screw M5 X 20

250000724

$1.60

2320

Panel Nut M5 X 0.8

250000958

$4.00

2330

Tuflok Plastic Rivet

293150230

$1.39

2350

Gauge Support | LTD Model

707900066

$35.04

2360

Torx Screw K50 X 16

250000720

$1.60

2370

Push Nut

732610072

$1.97

2400

Passenger Handle

707900011

$12.43

2410

Torx Screw M6 X 20

250000722

$1.54

2420

Connector Tube

707900048

$5.52

2650

Front LH Safety Net

707900237

$117.13

2650a

Buckle

707900035

$47.73

2660

Front RH Safety Net

707900238

$117.13

2660a

Buckle

707900035

$47.73

2670

Hex. Flange Elastic Nut M8

233281414

$1.31

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

2700

Flat Washer 6 mm

234062410

$0.73

2705

Stainless Steel Flat Washer

234062670

$2.00

2710

Hex. Flange Screw M6 X 20

207662044

$1.91

2715

Torx Screw M6 X 25

250000758

$2.00

2730

Flat Washer 8 mm

234082410

$1.27

2740

Hex. Flange Elastic Nut M8

233281414

$1.31

3000

Lever Indicator

707900070

$13.78

3100

Torx Screw M6 X 25 | XT Models

250000728

$4.15

3300

Front Central Console Foam

707900619

$15.64

3320

Left Upper Lateral Console Foam

707900620

$14.76

3330

LH Lower Lateral Console Foam

707900621

$19.37

3340

RH Lateral Console Foam

707900622

$14.49

3350

RH Lateral Console Foam

707900623

$14.49

3360

RH Lateral Console Foam

707900624

$14.49

3550

Heat Sheet

707900148

$6.72

3600

Heat Sheet

707900149

$8.66

3650

Heat Sheet

707900150

$0.97

3700

Heat Sheet

707900151

$9.58

3750

Heat Sheet

707900146

$10.55

3800

Heat Sheet

707900147

$8.66

3850

Heat Sheet

707900145

$10.55

3900

Heat Sheet

707900190

$7.67

3950

Heat Sheet

707900191

$0.97

4000

Torx Screw M5 X 14

250000742

$1.37

4005

Flat Washer

250200040

$1.76

4010

Torx Screw M6 X 20

250000722

$1.54
