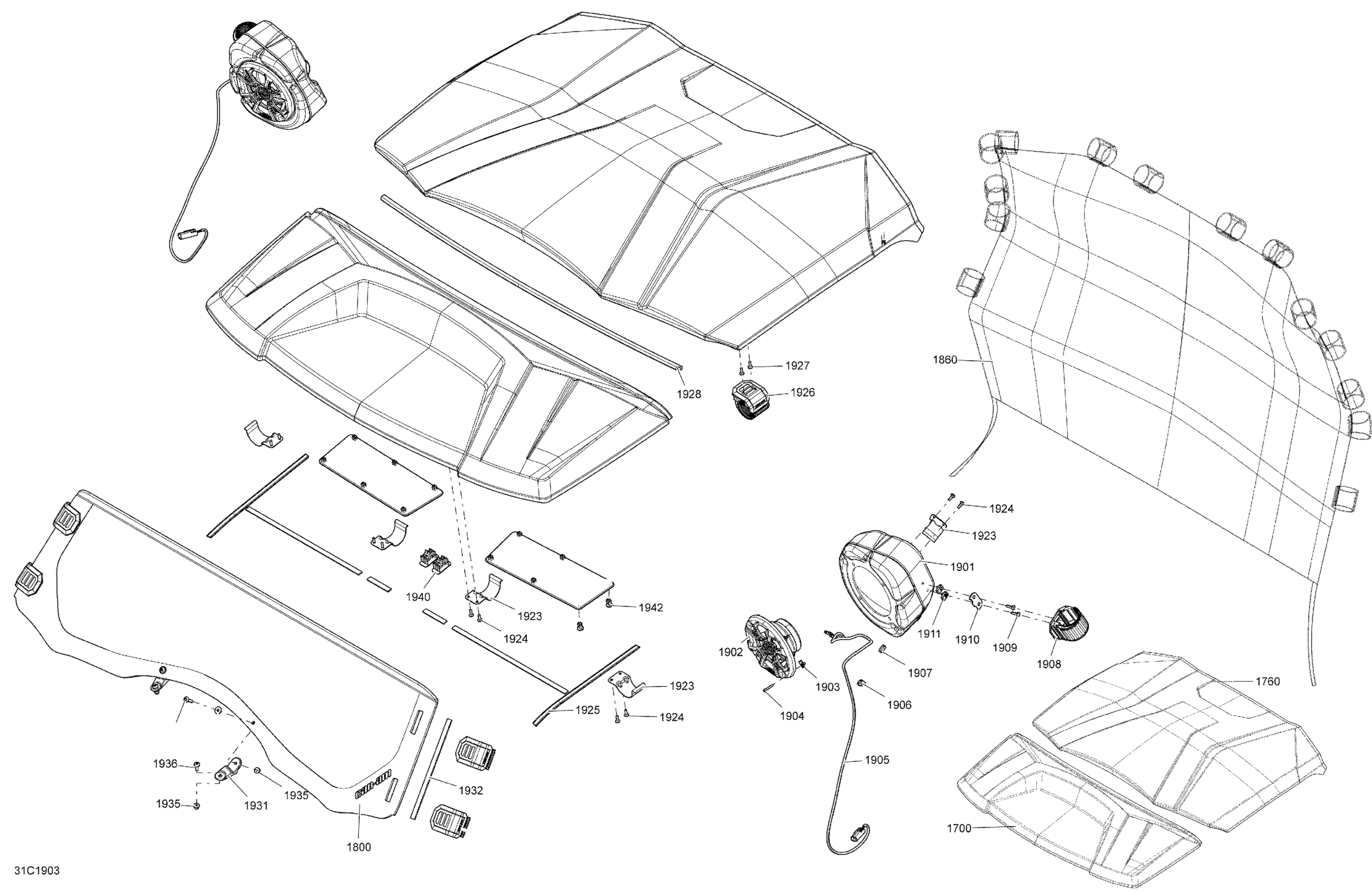

Can-Am Commander 1000R EFI - 2019 Body And Accessories - Accessories - Package LTD Diagram

Description

Price

1700

Roof Visor Ass'y

715001952

Unavailable

1700a

U Brace Strip | LTD

705009030

$17.88

1700b

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1700c

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

1700d

Tuflok Plastic Rivet

293150230

$1.39

1760

Mid Roof Kit

715001949

$614.15

1760a

Seal Tray 1000Mm Long

219704368

$12.30

1760b

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1800

Windshield Half Ass'y

703501024

$281.31

1860

Wind Deflector

715003078

$128.33

1901

LH Speaker Box Ass'y

710002837

$137.28

1901

RH Speaker Box Ass'y

710002839

$137.28

1902

Speaker

710002838

$158.18

1903

Extruded Panel Nut M4 X 0.7

250100143

$7.78

1904

Torx Pan Screw M4 X 20

250000622

$1.79

1905

Speaker Harness

710004341

$102.21

1906

Clip

414227300

$1.40

1907

Grommet

414036300

$2.55

1908

Retainer Velcro Perforated

705013420

$39.52

1909

Torx Screw M5 X 20

250000724

$1.60

1910

M5 Support Plate

710002946

$7.18

1911

Panel Nut M5 X 0.8

250000958

$4.00

1923

U Brace Strip | LTD

705009030

$17.88

1924

Torx Screw K50 X 16

250000720

$1.60

1925

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1926

Retainer Velcro Perforated

705013420

$39.52

1927

Torx Screw K50 X 16

250000720

$1.60

1928

Seal Tray 1000Mm Long

219704368

$12.30

1925

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1926

J Clip

705011349

$8.60

1931

Windshield Support

705006537

Unavailable

1932

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1935

Hex. Flange Elastic Nut M6

233261494

$1.45

1936

Torx Truss Screw M6 X 20

250000488

$2.00

1937

U Brace Strip | LTD

705009030

$17.88

1938

Torx Screw K50 X 16

250000720

$1.60

1939

Gasket, Neoprene 2000Mm Long

219704476

$14.51

1940

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

1942

Tuflok Plastic Rivet

293150230

$1.39
