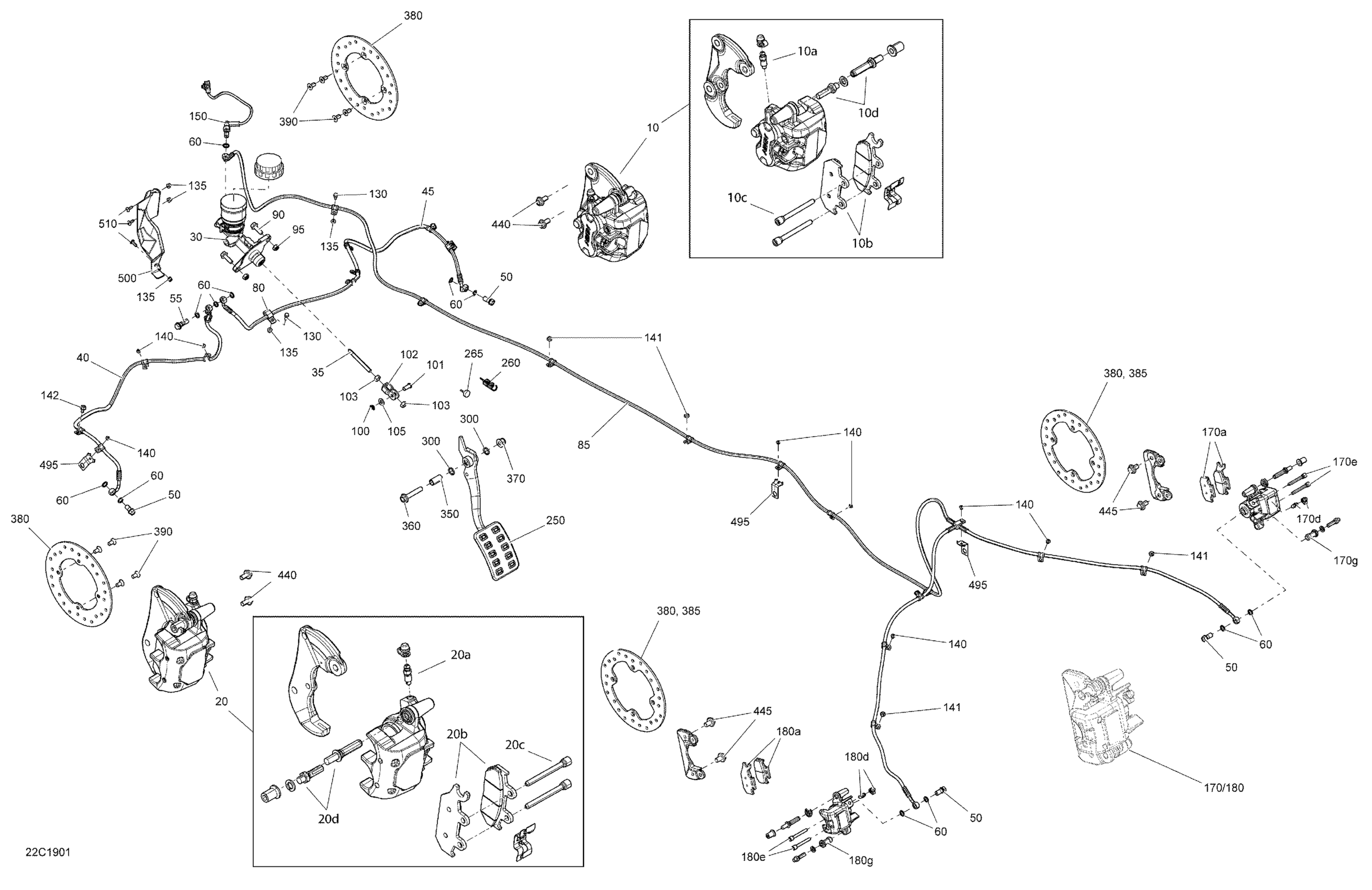

Can-Am Commander 1000R EFI - 2019 Brakes - 1000R EFI Diagram

#

Description
Price

10

RH Caliper Ass'y | Includes 71 to 71d

705601129

$278.33

10a

Bleeding Screw

705600080

$14.49

10b

RH Brake Pad Kit

705601150

$48.48

10c

Hanger Pin Kit

705601151

$16.39

10d

Spring And Bolt Kit

715500385

$20.12

20

LH Caliper Ass'y | Includes 57 to 57d

705601128

$278.33

20a

Bleeding Screw

705600080

$14.49

20b

LH Brake Pad Kit

705601149

$48.48

20c

Hanger Pin Kit

705601151

$16.39

20d

Spring And Bolt Kit

715500385

$20.12

30

Master Cylinder Ass'y | Includes 11 to 13

705601505

$216.39

35

Master Cylinder Rod

705600833

$18.63

40

LH Front Hose | Includes 96 to 96a

705601194

$73.85

45

RH Front Flexible Hose Ass'y | Includes 1 to 1a

705601195

$73.85

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

55

Banjo Bolt

705600958

$6.73

60

Copper Washer

705601628

$4.21

80

Clamp

293650220

$0.81

85

Rear Flexible Hose Ass'y

705601391

$144.75

90

Hex. Flange Screw M8 X 25

207682534

$1.03

95

Hex. Elastic Stop Nut M8

232581414

$0.54

100

Cotter Pin

371800700

$0.96

101

Pin | Not Shown

250400058

$6.91

102

Yoke | Not Shown

705601142

$14.34

103

Hex. Nut M8

232081414

$0.69

105

Flat Washer M8

234081430

$2.00

130

Hex. Forming Screw M5 X 16

210251650

$1.06

135

Elastic Flange Nut M5

233251494

$2.00

140

Pop Rivet 3/16"

390402200

$0.30

141

Elastic Stop Nut M6

232561414

$1.78

142

Hex. Flange Screw M6 X 10

210261040

$1.43

150

Brake Switch

705601250

$55.19

170

Rear Caliper | Includes 36 to 40

705600872

$213.40

170a

RH Brake Pad Kit

715500336

$48.48

170d

Bleeding Screw

705600080

$14.49

170e

Sliding Pin Kit

715500337

$18.63

170g

Spring Boot Bolt Kit

715500383

$16.39

180

LH Rear Caliper Ass'y | Includes 91 to 91d

705601175

$204.45

180a

LH Brake Pad Kit

705600398

$48.48

180d

Bleeding Screw

705600080

$14.49

180e

Pin Set (2)

705600081

$18.63

180g

Spring, Protector And Bolt Kit

715500384

$22.36

250

Brake Pedal

705600724

$51.46

260

Brake Pedal Spring

705600792

$8.42

265

Rubber Stopper

708000759

$4.15

300

O-Ring

293300144

$3.79

350

Inner Spacer

705600815

$10.01

360

Hex. Flange Screw M10 X 55

207605544

$3.19

370

Hex. Flange Elastic Nut M10

233201414

$1.45

380

Disc Brake

705601178

$100.72

385

Brake Disc

705600684

$64.90

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

440

Hex. Flange Screw M10 X 20

250001134

$1.67

445

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

495

Bracket

705601337

$2.69

500

LH Front Deflector

705600917

$6.73

510

Torx Screw M5 X 14

250000742

$1.37
