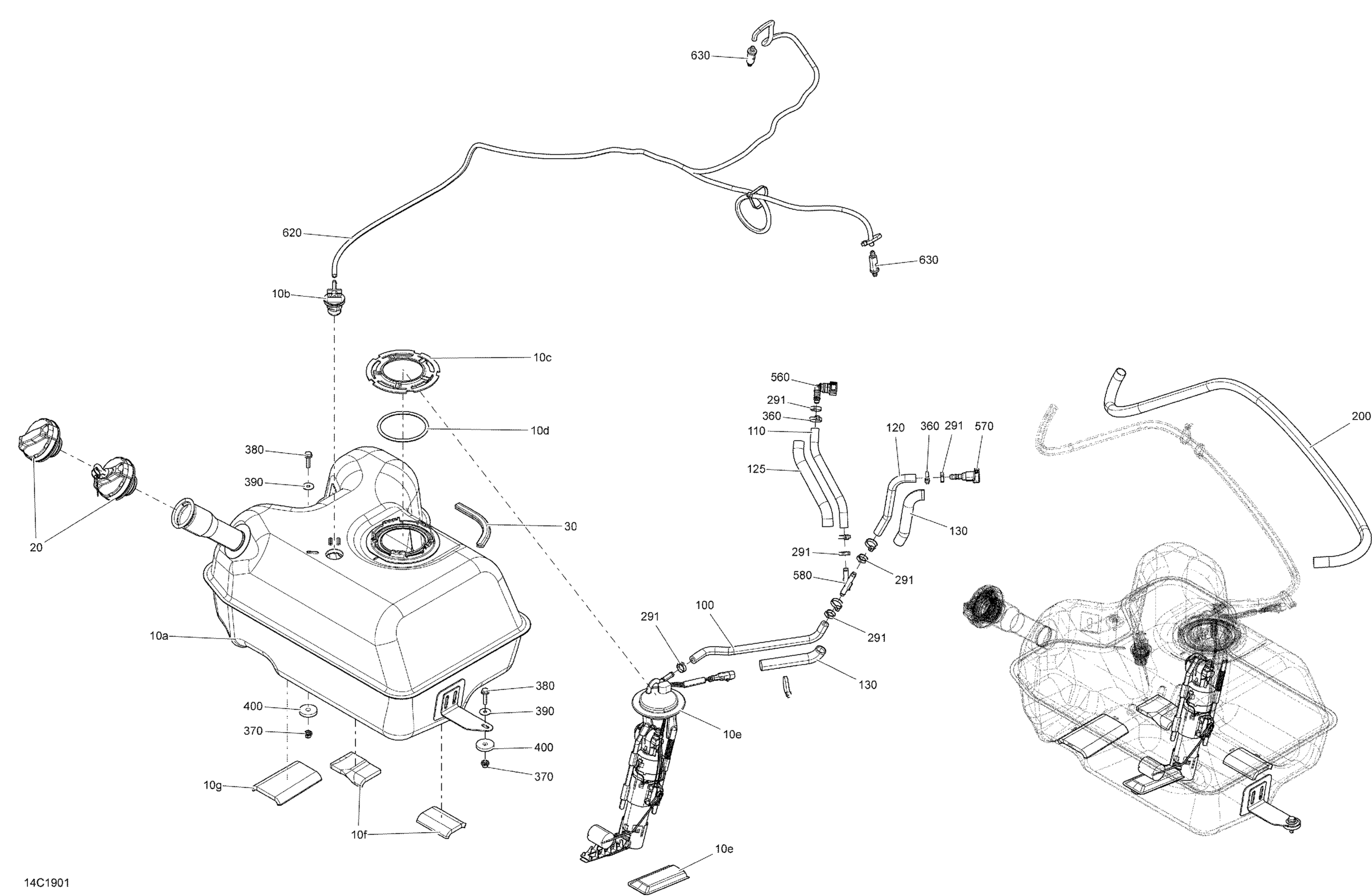

Can-Am Commander 1000R EFI - 2019 Fuel - 1000R EFI Diagram

Description

Price

10a

Fuel Tank

709000753

Unavailable

10b

Rollover Valve

709000413

$50.72

10c

Ring

709000274

$14.40

10d

O-Ring

709000275

$15.64

10e

Fuel Pump | Includes 5 to 6

709000759

$353.87

10e1

Fuel Pre-Filter Kit

709000389

$73.85

10f

Neoprene Pad

709000288

$12.49

10g

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

Fuel Cap | Except Europe

709000529

$28.18

100

Was 709000163 Fuel Line

219704440

$25.34

110

Was 709000163 Fuel Line

219704440

$25.34

120

Was 709000163 Fuel Line

219704440

$25.34

125

Tubing 16 Mm 1000Mm Long

219704408

$7.15

130

Tubing 16 Mm 1000Mm Long

219704408

$7.15

291

Crimp Clamp, 15.3-706R

293650047

$3.03

370

Insert Half Hex Body M6 x 1.0

250100199

$2.91

380

Hex. Flange Screw M6 X 25

207562544

$1.60

390

Flat Washer

224060201

$1.12

400

Rubber Washer

293830037

$2.68

560

Quick Attach 90°

275500700

$14.48

570

Not Available As Spare Part - Friction Washer

Unavailable

580

Y-Fitting, 5/16''

293710136

$5.76

620

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

630

Filter

709000330

$7.48
