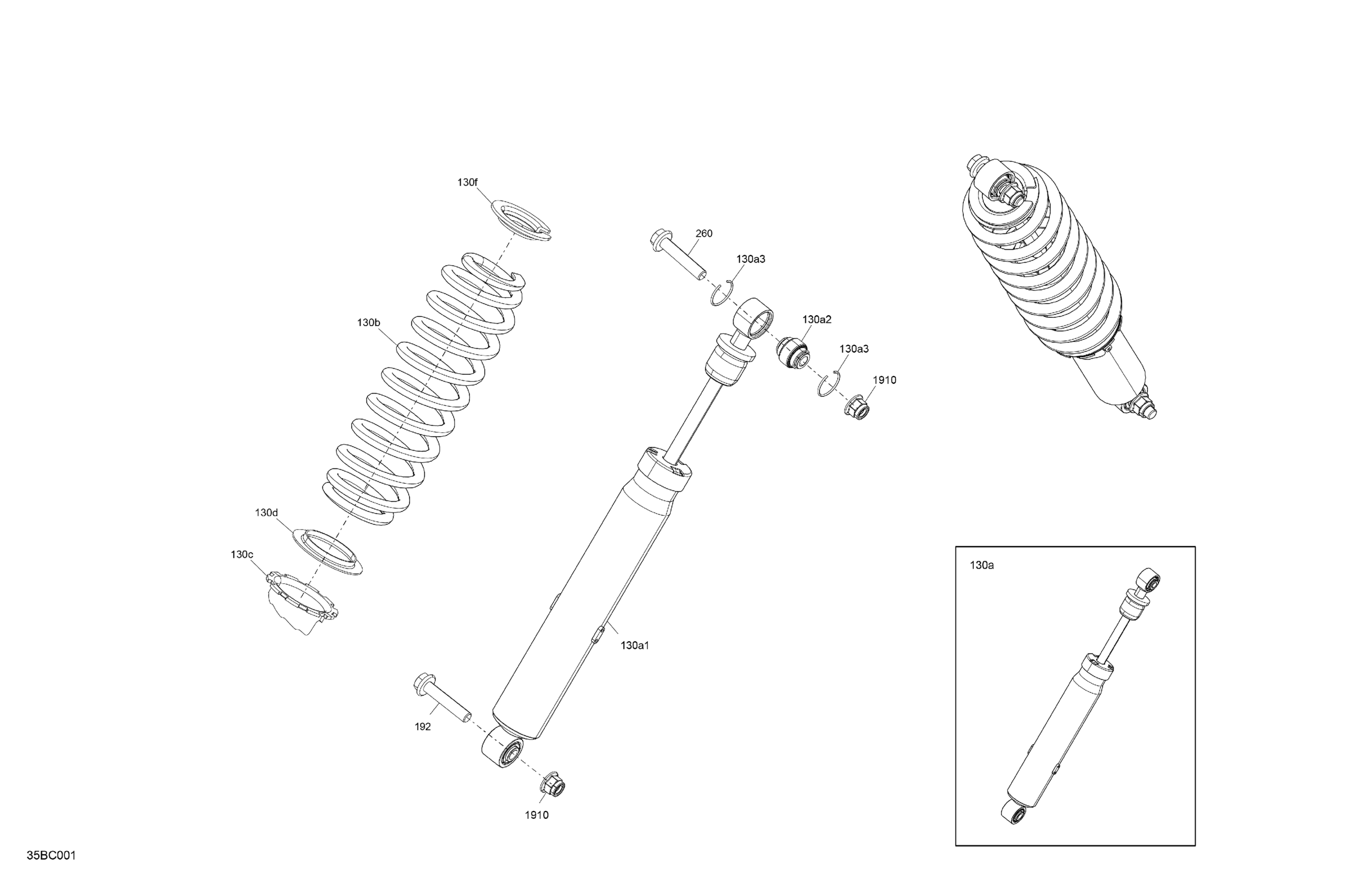

Can-Am Commander 700 EFI - DPS - 2023 Suspension - Front Shocks Diagram

#

Description
Price

130a

Front Shock Absorber Ass'y | Includes 130a to 130a3

706204589

$206.49

130a1

Front Shock Absorber

706204298

$206.49

130a2

Ball Joint

706004078

$47.49

130a3

Internal Retaining Ring

293370157

$1.89

130b

Deep Black, Compression Spring

706205398

Unavailable

130c

Adjustment Ring

706000910

$16.49

130d

Protector Ring | STD, XT

706000911

$13.99

130f

Spring Cup

706001894

$15.49

192

Flange Screw M12 X 60

250000857

$7.41

260

Flange Screw M12 X 60

250000857

$7.41

1910

Elastic Flange Nut M12

250001195

$2.64
