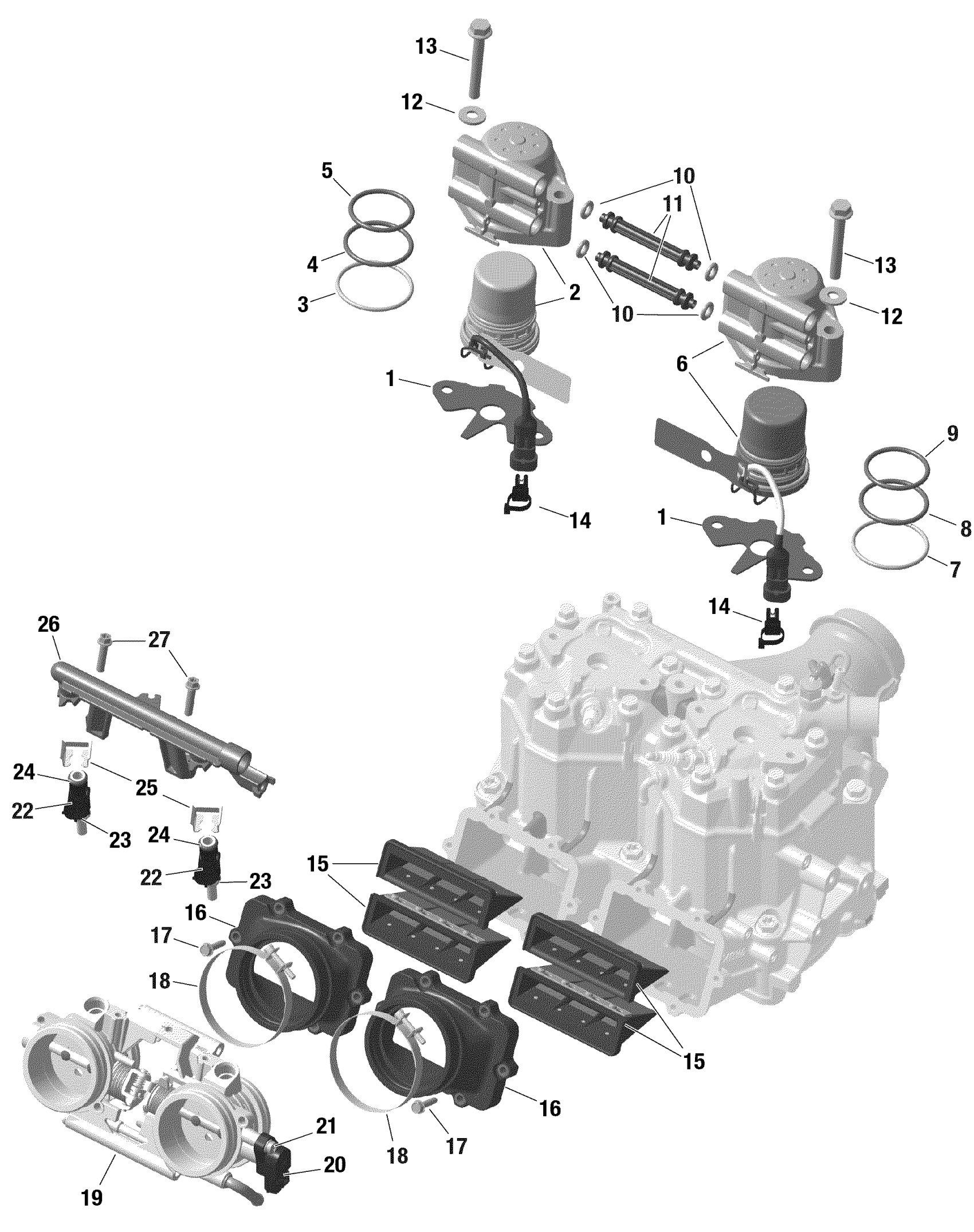

Ski-Doo 002 - BACKCOUNTRY 850 E-TEC - STD - North America, 2020 01- Engine - EFI - 850 E-TEC Diagram

#

Description
Price

1

Gasket

420430056

$9.09

2

Injector PTO | Includes 2 to 5

420874863

$549.99

3

Crush Ring

415129497

$7.99

4

O-Ring

415129498

$13.49

5

O-Ring

415129499

$7.39

6

Injector MAG | Includes 6 to 9

420874864

$549.99

7

Crush Ring

415129497

$7.99

8

O-Ring

415129498

$13.49

9

O-Ring

415129499

$7.39

10

O-Ring

420430775

$4.29

11

Tube

420874190

$5.39

12

Washer

420901550

$2.11

13

Screw M8X60

420840096

$2.11

14

Tie Rap

420951785

$4.44

15

Reed Valve Ass'y

420924798

$42.99

16

Intake Socket

420867390

$111.49

17

Tapping Screw M5 X 22

420841550

$1.69

18

Clamp

420251209

$8.57

19

Throttle Body Socket | Includes no. 18-20

420685754

$370.99

20

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$70.99

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Injection Valve Ass'y | Includes 18 to 20

420874887

$174.99

23

O-Ring

420431890

$7.49

24

O-Ring

420631220

$14.28

25

Injector Clip

420853030

$3.09

26

Fuel Rail

420874155

$24.49

27

Torx Flange Screw M6 X 25

420440234

$3.06
