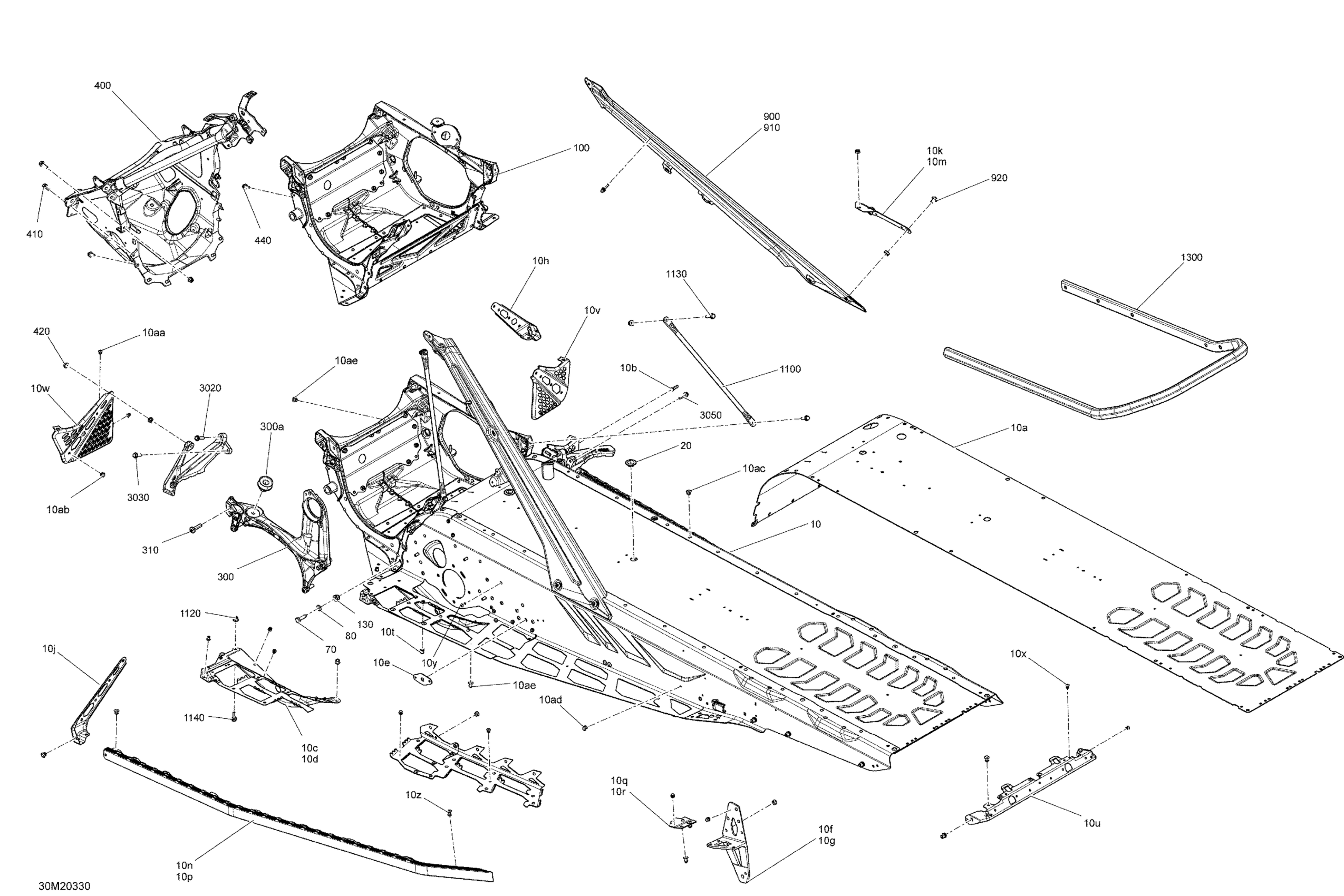

Ski-Doo BACKCOUNTRY 850 E-TEC - Europe, 2020 Frame - System - XRS Diagram

#

Description
Price

10

Can-Am Red, Chassis Tunnel Module 146" | Frame 146 Inch

518331474

Unavailable

10

Can-Am Red, Chassis Tunnel Module 154" | Frame 154 Inch

518331477

Unavailable

10a

Radiator Tunnel 146

518334489

$658.93

10a

Radiator Tunnel 154 Ass'y

518334491

$658.93

10b

Clinch Stud M6 X 20

250300027

$1.87

10c

RH Footrest Reinforcement

518330520

$77.58

10d

Deep Black, LH Footrest Reinforcement

518332802

$16.39

10e

RH Footrest

518329619

$38.78

10f

LH Footrest

518331549

$38.78

10g

LH Rear Suspension Support

518330682

$41.76

10h

RH Rear Suspension Support

518334395

$93.25

10j

Stirrup Reinforcement

518331253

$17.88

10k

Deep Black, LH Chasssis Reinforcement

518331560

$17.88

10m

LH Member Fixation Plate

518330299

$15.64

10n

RH Under Chassis Reinforcement

518331745

$16.39

10p

RH Roller

518329023

$175.34

10q

LH Roller

518329024

$175.34

10r

Radiator Tunnel 146

518334489

$658.93

10t

Rear Cap

518328990

$20.12

10u

RH Footrest

518328460

$37.28

10v

LH Footrest

518333007

$37.28

10w

Avex Rivet

390909100

$0.28

10x

Rivet Hucklok

293150163

$2.73

10y

Avex Rivet

390909200

$0.28

10z

Hemlock Rivet, 6.5 mm

293150096

$3.07

10aa

Hemlock Rivet, 6.5 mm

293150119

$3.88

10ab

Hemlock Rivet, 6.4 mm

293150174

$6.24

10ac

Ornit Rivet 6,5 X 14.5

293150266

$1.88

10ad

Hemlock Rivet, 6.4 mm

293150174

$6.24

10ae

Ornit Rivet 6,5 X 14.5

293150266

$1.88

20

Black, Plug

293730052

$6.18

70

Hex Screw M8 X 30

250000942

$1.06

80

Flat Washer 8 mm

234081410

$0.79

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518333108

$550.72

130

Hex. Flange Elastic Nut M8

233281414

$1.31

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$262.66

300a

Vibration Damper

512061516

$55.94

310

Screw-Pan HD.Torx M8X30

250001060

$0.75

400

Chassis Suspension Module

518334459

$633.55

420

Hex. Flange Screw M6 X 35

207663544

$0.85

440

Hex. Flange Screw M6 X 16

207661646

$1.15

900

RH Rear Diagonal Cross Member

518330885

Unavailable

910

White, RH Rear Diag Cross Member

518331056

$105.19

920

Pan Head Torx Screw M8 X 12

250000887

$1.79

1100

Upper Colomn Support

518329974

$20.12

1120

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

1130

Hex. Flange Screw M6 X 25

207662544

$0.61

1140

Hex. Flange Screw M6 X 20

207662044

$1.91

1300

Rear Bumper 146

518329553

$160.42

1300

Rear Bumper | Includes 1300 to 1300b

518328501

$155.94

3020

Hex. Flange Screw M6 X 25

250000793

$2.00

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3050

Hex. Flange Forming Screw M6 X 25

210262550

$1.88
