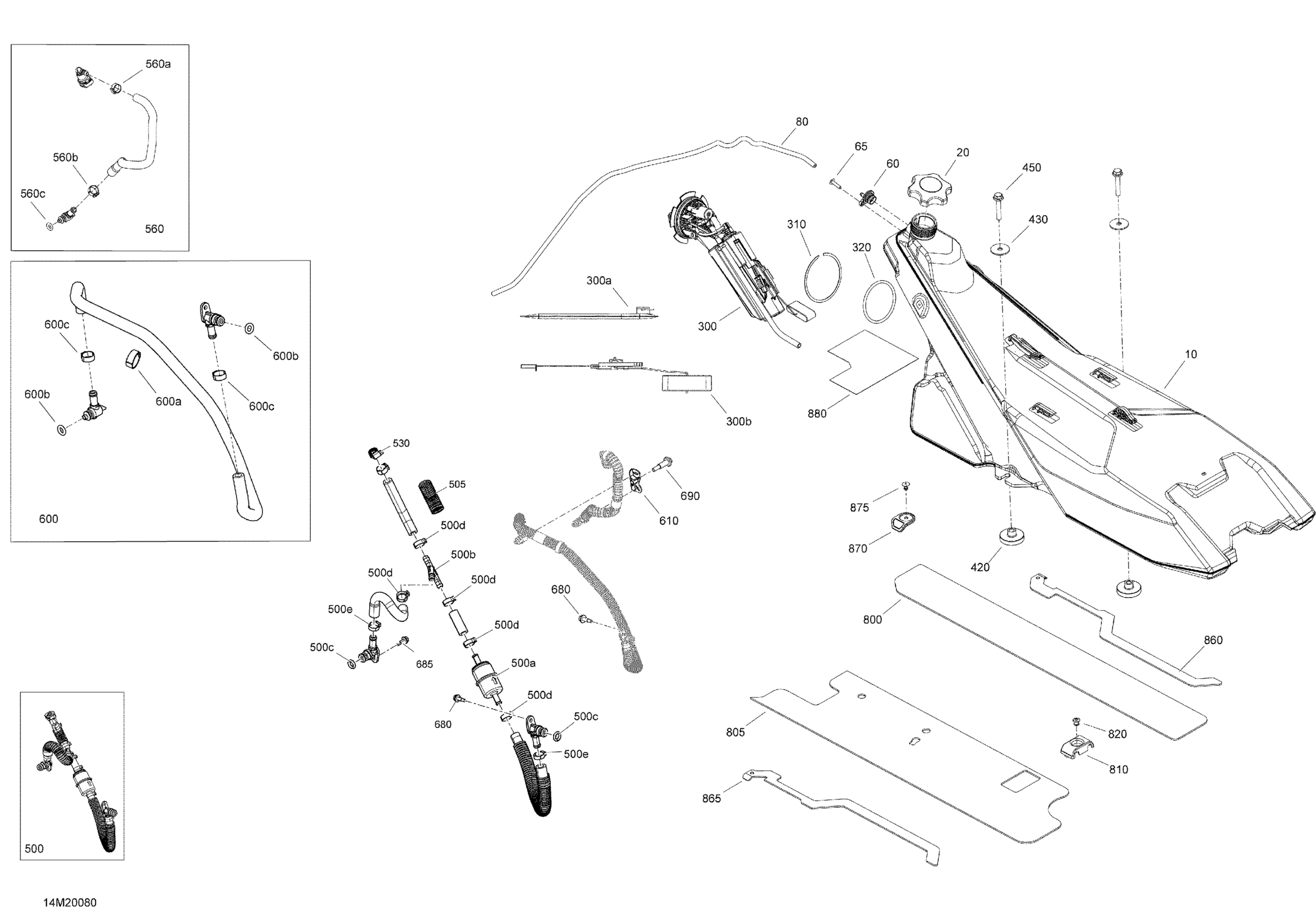

Ski-Doo 002 - BACKCOUNTRY 850 E-TEC - Europe, 2020 02- Engine - Fuel Diagram

Fuel Tank

513033975

Unavailable

Fuel Tank Cap

513033943

$26.99

Check Valve

513033849

$36.99

Truss Torx Screw K40 X 16

250000918

$2.11

Polyurethane Hose 10000Mm Long

219704410

$56.99

Fuel Pump Ass'y | Includes 300a to 300a3

513034236

$259.99

Fuel Filter

415131068

Unavailable

Fuel Level Sensor

415130726

$149.99

Circlip

513033798

$13.99

O-Ring

513033862

$23.99

Bushing

513033807

$7.62

Washer | Not Shown

503193995

$4.54

Hex. Flange Screw M6 X 35

207663544

$0.90

Hose Ass'y | Includes 500 to 500e

513034021

$132.49

Fuel Filter

513034047

$21.99

Y Fitting

513033926

$2.79

O-Ring

513033668

$10.99

Oetiker Clamp

293650125

$3.29

Crimp Clamp

293650053

$3.09

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Tridon Gear Clamp

293650171

$3.09

Hose Ass`y | Includes 560 to 560c This part replaces 513033922.

415130220

$153.49

Oetiker Clamp

293650125

$3.29

Crimp Clamp

293650053

$3.09

O-Ring

513033668

$10.99

Hose Ass`y | Includes 600 to 600c This part replaces 513034001.

415130221

$153.49

Ring

513033910

$7.99

O-Ring

513033668

$10.99

Crimp Clamp

293650053

$3.09

Bracket

513033903

$1.49

Hex. Flange Screw M5 X 16

250000911

$0.85

Hex. Flange Screw M5 X 16

250000911

$0.85

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.46

Insulated Foam

513033913

$5.59

Insulated Foam

513033914

$16.99

Tank Guide

513033826

$2.29

Pop Rivet 3/16"

390402200

$0.35

Foam

513033915

$19.49

Foam

513033916

$4.69

Retainer Plate

513033917

$0.57

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Fuel Tank Protection Decal

516009818

$10.17
