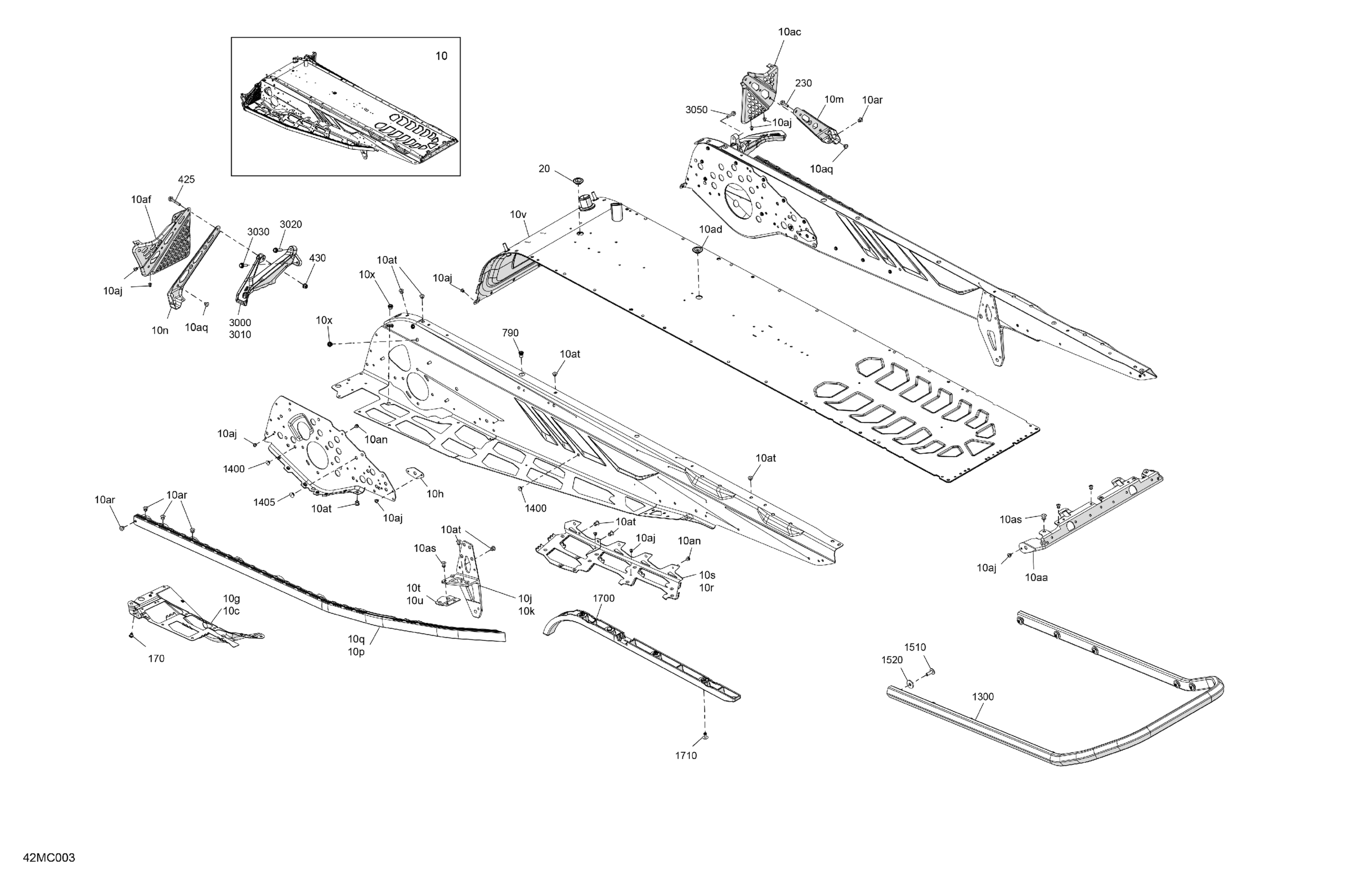

Ski-Doo BACKCOUNTRY 600R E-TEC - STD - 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 146" | Model Deep Black

415130511

$3.00

10

Catalyst Gray, Chassis Tunnel Module 146 | Model Neo Yellow

415130512

$3.00

10c

RH Footrest Reinforcement

518332578

$88.99

10g

LH Footrest Reinforcement

518332577

$88.99

10h

Reinforcement Plate

518326647

$4.69

10j

LH Rear Suspension Support

518334390

$45.99

10k

RH Rear Suspension Support

518334391

$94.99

10m

Stirrup Reinforcement

518334507

$21.99

10n

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10p

RH Roller

518328451

$194.99

10q

LH Roller

518328452

$194.99

10r

RH Tunnel Liner

518329646

$35.99

10s

LH Tunnel Liner

518329647

$35.99

10t

LH Reinforcement Plate

518329088

$3.39

10u

RH Reinforcement Plate

518329089

$4.59

10v

Radiator Tunnel 146

518334489

$739.99

10x

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10aa

Rear Cap

518328990

$22.49

10ac

RH Footrest

518333006

$40.99

10ad

Black, Plug

293730052

$9.19

10af

LH Footrest

518333007

$40.99

10aj

Rivet Avibulb 3/16

293150203

$2.09

10an

Henrob Rivet

293150245

$1.69

10aq

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10ar

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10as

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10at

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper 146

518329553

$169.49

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40
