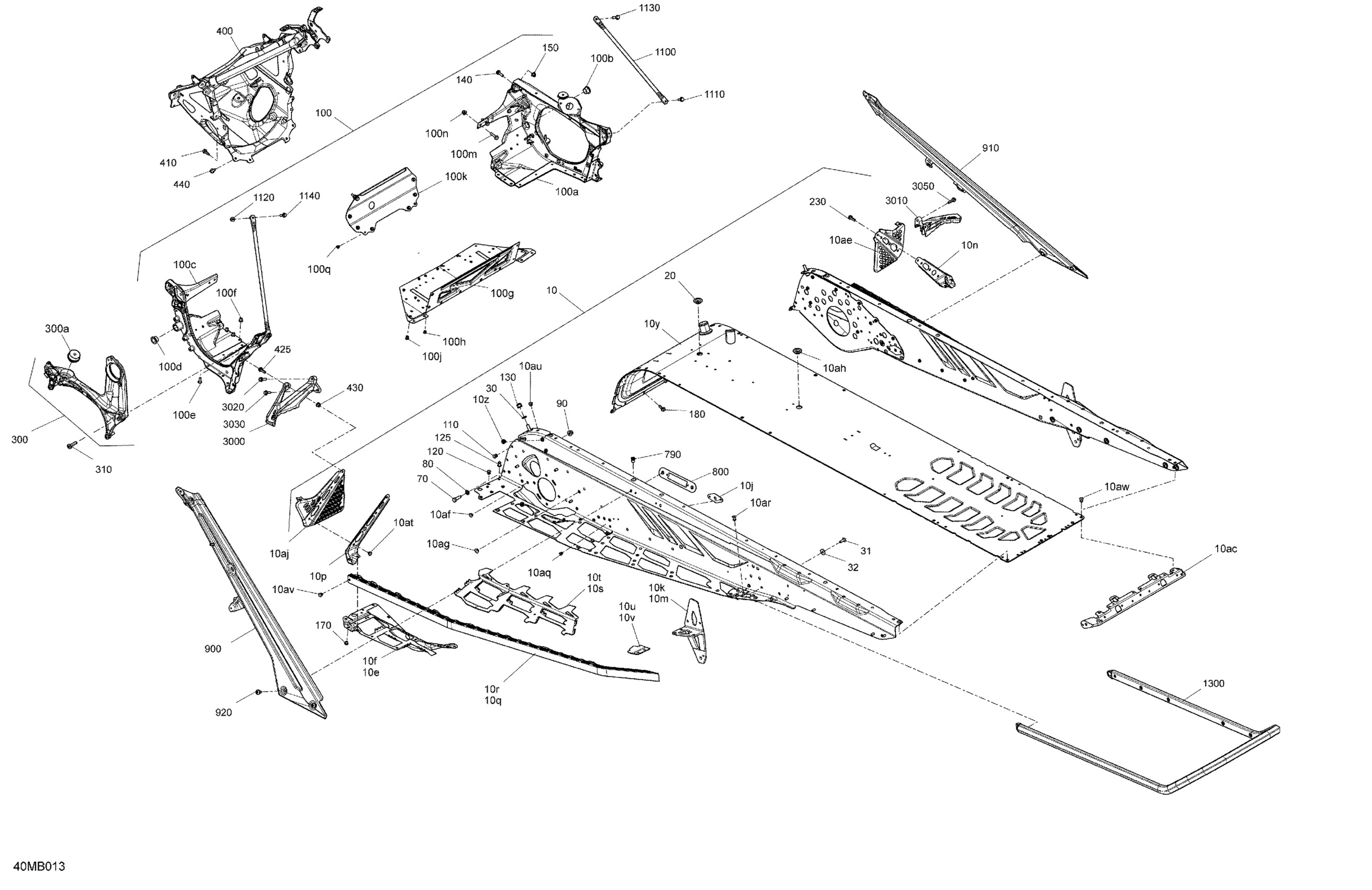

Ski-Doo BACKCOUNTRY 600R E-TEC - STD - 2022 Frame - System Diagram

Deep Black, Chassis Tunnel Module 146" | Model Deep Black

415130511

$3,623.05

RH Footrest Reinforcement

518332578

$81.51

LH Footrest Reinforcement

518332577

$81.51

Reinforcement Plate

518326647

$4.34

LH Suspension Bracket

518328467

$43.05

RH Rear Suspension Support

518334391

$38.43

Stirrup Reinforcement

518331253

$18.43

Deep Black, LH Chasssis Reinforcement

518331560

$18.43

RH Roller

518328451

$180.74

LH Roller

518328452

$180.74

RH Tunnel Liner

518329646

$33.05

LH Tunnel Liner

518329647

$33.05

LH Reinforcement Plate

518329088

$3.08

RH Reinforcement Plate

518329089

$4.22

Radiator Tunnel 146

518334489

$692.28

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Rear Cap

518328990

$20.74

RH Footrest

518328460

$38.43

Black, Dart 8 mm

293730047

$2.14

Black, Dart 10 mm

293730060

$4.42

Black, Plug

293730052

$6.37

LH Footrest

518333007

$38.43

Rivet Avibulb 3/16

293150203

$0.29

Rivet

293150183

$2.06

Hemlock Rivet, 6.5 mm

293150096

$3.17

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

Flat Washer 8 mm

234081410

$0.69

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11

Hex Screw M8 X 30

250000942

$0.92

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Engine Chassis Module Ass'y | Includes 100 to 100m

518332692

$579.99

RH Member Ass'y | Includes 100a to 100a3

518332687

$208.43

Leg Bushing

505072690

Unavailable

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

Leg Bushing

505072690

Unavailable

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Bottom Plate

518332716

$34.58

Rivet Avibulb 3/16

293150203

$0.29

Insert M5 X 0.8

293450268

$1.95

Front Member

518330100

$56.12

Hex. Flange Screw M6 X 25

250000945

$3.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Rivet Avibulb 3/16

293150203

$0.29

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Hemlock Rivet, 6.4 mm

293150174

$6.43

Hemlock Rivet 6.5 mm

293150120

$7.23

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662046

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Insert M5 - 0.8

293450267

$4.22

Hex. Flange Screw M6 X 16

207661646

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

Vibration Damper

512061516

$57.66

Screw-Pan HD.Torx M8X30

250001060

$0.65

Chassis Suspension Module

518334459

$653.05

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 x 35

207663546

$0.95

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 16

207661636

$1.06

Insert

293450278

$4.09

Member Fixation Plate

518329480

$10.03

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$108.43

White, LH Rear Diag Cross Member | White

518330137

$106.89

Black, RH Member Ass'y | Black

518330880

$108.43

Can-Am Red, RH Rear Diag Cross Member | Red

518331053

$108.43

Pan Head Torx Screw M8 X 12

250000887

$1.56

Upper Colomn Support

518329974

$20.74

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662556

$3.61

Hex. Flange Screw M6 X 20

207662046

$1.74

Rear Bumper 146

518329553

$165.35

Black Toe-hold

518330358

$23.05

Toe Hold

518329134

$16.12

Hex. Flange Screw M6 X 25

250000793

$1.74

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Hex Screw Forming M6 x 25

250001124

$1.64
