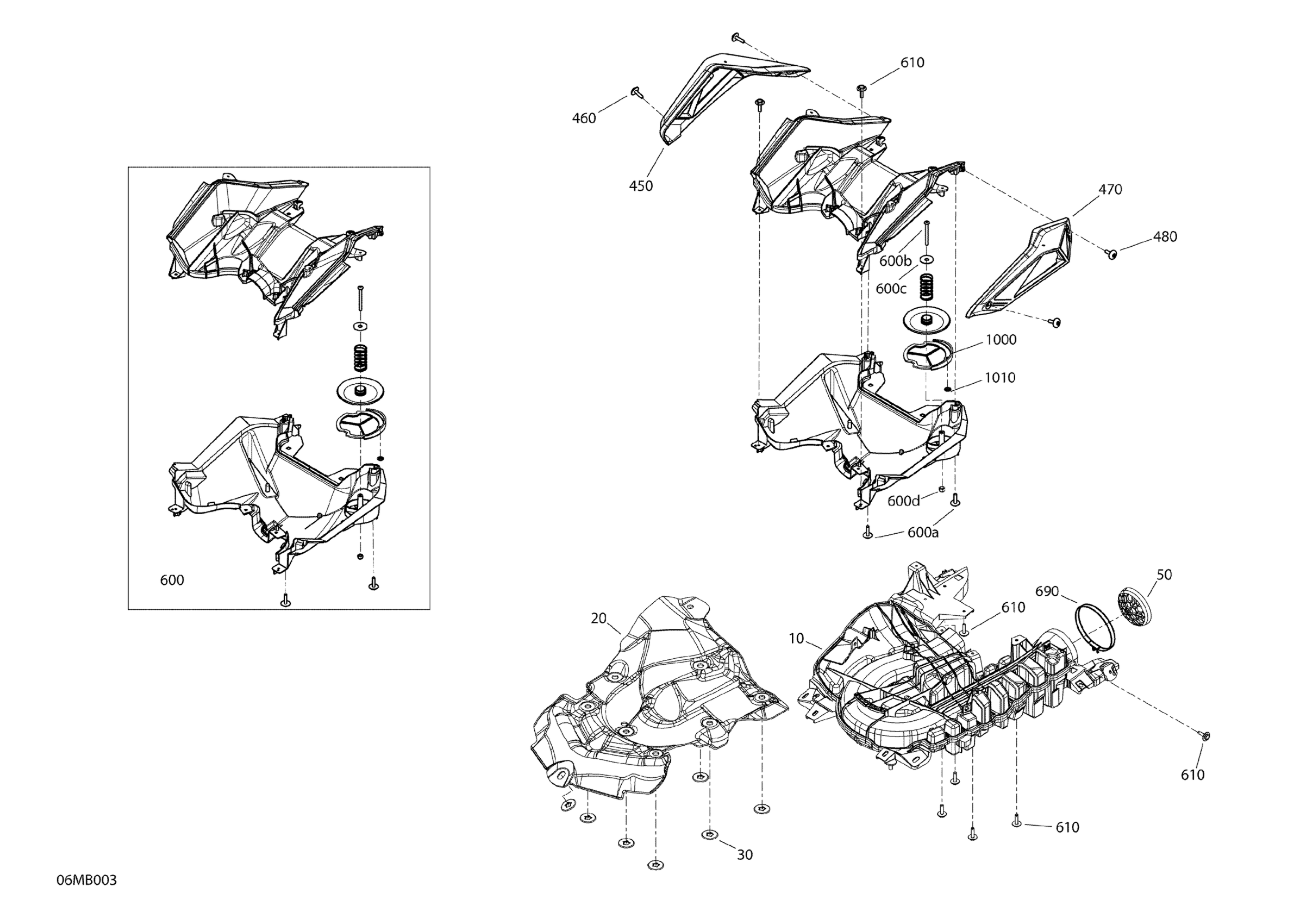

Ski-Doo BACKCOUNTRY 600R E-TEC - STD - 2022 Engine - Air Intake Diagram

Description

Price

Secondary Chamber

508000874

$118.63

Acoustic Cover

508000914

$41.76

Push Nut

508000853

$1.87

Filter (Honeycomb)

508000967

$0.81

450

RH Air Filter (Nitex Mesh)

508000806

$31.31

460

Screw M4 X 16

250000889

$2.82

470

LH Air Filter (Nitex Mesh)

508000807

$31.31

480

Screw M4 X 16

250000889

$2.82

600

Air Duct Ass'y | Includes 600 to 600j

508000915

$91.76

600a

Screw M4 X 16

250000725

$3.30

600b

Socket Head Screw M4 X 40

205444056

$2.00

600c

Flat Washer

224060201

$1.12

600d

Elastic Stop Nut M4

232541414

$0.55

610

Screw M4 X 16

250000725

$3.30

690

Gemi Clamp

293650247

$6.07

1000

Pop Off Filter

508000815

$6.63

1010

Push Nut

250100034

$1.27
