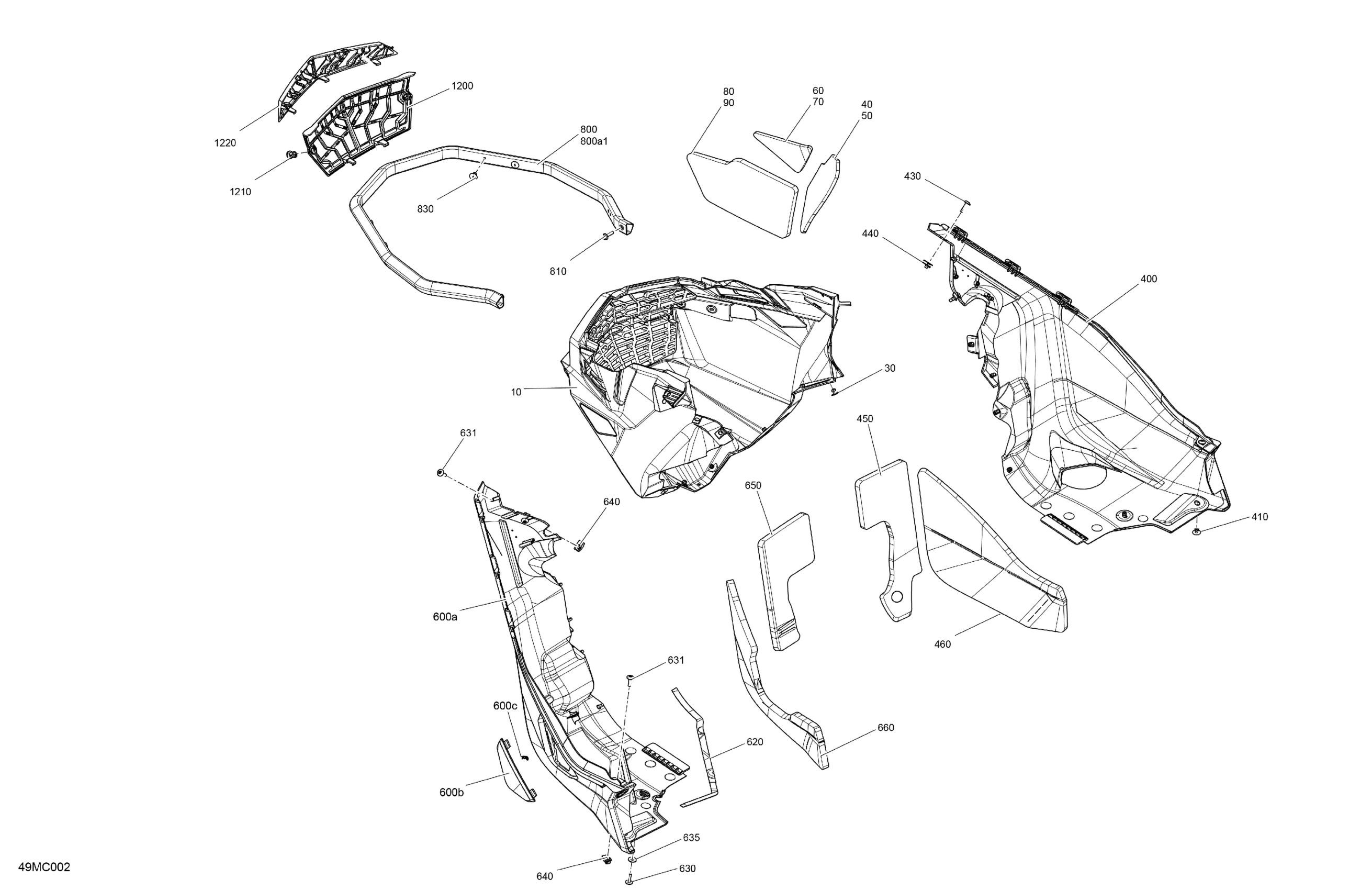

Ski-Doo BACKCOUNTRY 600R E-TEC - STD - Europe, 2023 Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502007919

$133.55

30

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

40

RH Upper Bottom Pan Foam

502007788

$15.64

50

LH Upper Bottom Pan Foam

502007789

$15.64

60

RH Bottom Pan Central Foam

502007545

$7.31

70

LH Bottom Pan Central Foam

502007546

$11.55

80

RH Lower Bottom Pan Foam

502007800

$18.63

90

LH Lower Bottom Pan Foam

502007799

$6.57

400

RH Bottom Pan

502007929

$98.48

410

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

430

Torx Truss M5 X 20

250000586

$4.15

440

Panel Nut M5 X 0.8

250000958

$4.00

450

RH Bottom Pan Upper Foam

502007547

$10.88

460

RH Bottom Pan Lower Foam

502007548

$10.88

600a

LH Bottom Pan

502007675

$118.63

600b

Bottom Pan Door

502007676

$35.79

600c

Hairpin Cotter

269800431

$0.97

620

Neoprene Seal (1PAC=3M)

219704364

$26.09

630

Torx Truss M5 X 20

250000586

$4.15

631

Torx Truss M5 X 20

250000586

$4.15

635

Washer M5

250200025

$0.70

640

Panel Nut M5 X 0.8

250000958

$4.00

650

LH Bottom Pan Upper Foam

502007549

$11.55

660

LH Bottom Pan Lower Foam

502007550

$10.88

800

Front Bumper | Model Neo Yellow

502008126

$117.88

800a1

Front Bumper

502007662

$115.64

806

Horn Bracket

502008380

Unavailable

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

830

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1200

Belly Pan Filter

502007978

$32.81

1210

Tuflok Plastic Rivet

293150230

$1.39

1220

Upper Hood Filter

502007977

$17.88
