Description

Price

10

Fuel Tank

513033975

Unavailable

20

Fuel Tank Cap

513033943

$26.99

60

Check Valve

513033849

$36.99

65

Truss Torx Screw K40 X 16

250000918

$2.11

80

Polyurethane Hose 10000Mm Long

219704410

$56.99

300

Fuel Pump Ass'y | Includes 300 to 300b

861805526

$259.99

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130726

$149.99

300c

Canister

415130507

$85.99

310

Circlip

513033798

$13.99

320

O-Ring

513033862

$23.99

420

Bushing

513033807

$7.62

430

Washer | Not Shown

503193995

$4.54

450

Hex. Flange Screw M6 X 35

207663544

$0.90

500

Hose Ass'y | Included 500 to 500d

513034106

$77.49

500a

Fuel Filter

513034047

$21.99

500b

O-Ring

513033668

$10.99

500c

Oetiker Clamp

293650125

$3.29

500d

Crimp Clamp

293650053

$3.09

505

Tubing 16 Mm 1000Mm Long

219704408

$7.49

535

Crimp Clamp, 15.3-706R

293650047

$3.29

540

Torx Screw Truss Head K50X20 T20

250000760

$2.11

550

Hose Guide

513034051

$7.69

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

$56.99

560b

Crimp Clamp

293650053

$3.09

560d

O-Ring

513033668

$10.99

600

Hose Ass'y | Includes 600 to 600f

513034113

$80.49

600d

O-Ring

513033668

$10.99

600e

Crimp Clamp

293650053

$3.09

610

Bracket

513033903

$1.49

680

Hex. Flange Screw M5 X 16

250000911

$0.85

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.46

800

Insulated Foam

513033913

$5.59

805

Insulated Foam

513033914

$16.99

810

Tank Guide

513033826

$2.29

820

Pop Rivet 3/16"

390402200

$0.35

860

Foam

513033915

$19.49

865

Foam

513033916

$4.69

870

Retainer Plate

513033917

$0.57

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

880

Fuel Tank Protection Decal

516009818

$10.17

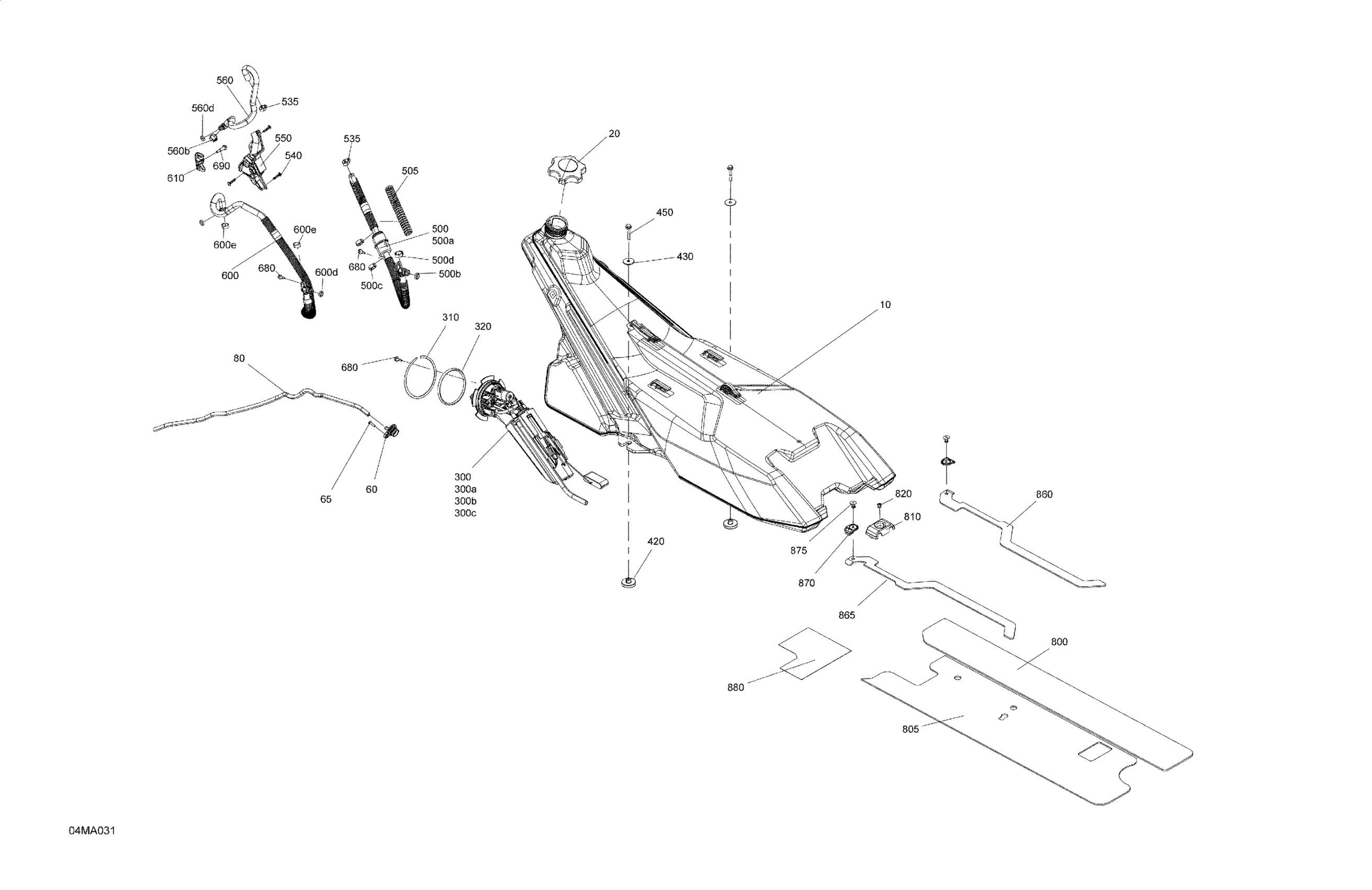

Ski-Doo BACKCOUNTRY 600R E-TEC - STD - Europe, 2021 Engine - Fuel Diagram

Fuel Tank

Fuel Tank Cap

Check Valve

Truss Torx Screw K40 X 16

Polyurethane Hose 10000Mm Long

Fuel Pump Ass'y | Includes 300 to 300b

Fuel Filter

Fuel Level Sensor

Canister

Circlip

O-Ring

Bushing

Washer | Not Shown

Hex. Flange Screw M6 X 35

Hose Ass'y | Included 500 to 500d

Fuel Filter

O-Ring

Oetiker Clamp

Crimp Clamp

Tubing 16 Mm 1000Mm Long

Crimp Clamp, 15.3-706R

Torx Screw Truss Head K50X20 T20

Hose Guide

Fuel Tank Hose Ass'y | Includes 560 to 560d

Crimp Clamp

O-Ring

Hose Ass'y | Includes 600 to 600f

O-Ring

Crimp Clamp

Bracket

Hex. Flange Screw M5 X 16

Hex. Flange Screw M5 X 28 S.Grip

Insulated Foam

Insulated Foam

Tank Guide

Pop Rivet 3/16"

Foam

Foam

Retainer Plate

Pop Rivet 3/16" | DS 650 X

Fuel Tank Protection Decal
