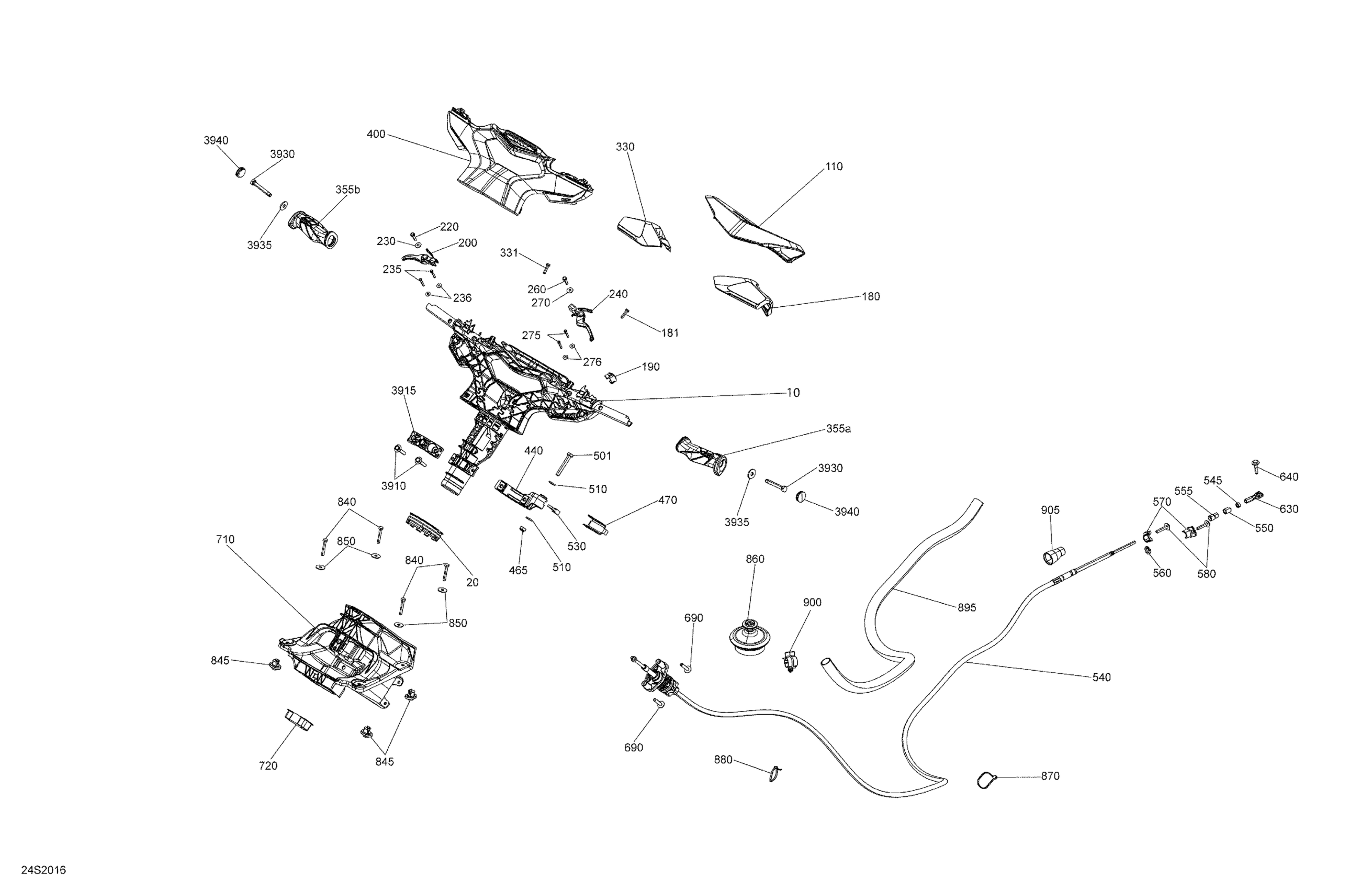

Sea-doo WAKE 170, 2020 Steering Diagram

#

Description
Price

10

Steering Column

277002134

$187.28

20

Wear Ring

277001874

$11.18

110

Neon Yellow, Steering Pad | Model Neon Yellow

277002120

$47.73

180

LH Cover

277002233

$15.64

181

Hex. Screw 10-14 X 7/8”

211000023

$3.34

190

Red Button Switch

277002327

$8.57

200

Hand Lever Accelerator

277002138

$35.04

220

Hex. Screw 10-14 X 7/8”

211000023

$3.34

230

Flat Washer 5 mm, Stainless

234052600

$0.73

235

Hex. Flange Screw K40 X 25

241142560

$2.49

236

Flat Washer 4 mm, Stainless

234042600

$1.06

240

Reverse Handle

277001945

$39.52

260

Hex. Screw 10-14 X 7/8”

211000023

$3.34

270

Flat Washer 5 mm, Stainless

234052600

$0.73

275

Hex. Flange Screw K40 X 25

241142560

$2.49

276

Flat Washer 4 mm, Stainless

234042600

$1.06

330

RH Cover

277002235

$14.46

331

Hex. Screw 10-14 X 7/8”

211000023

$3.34

355a

Deep Black, LH Handle Grip

277001958

$17.88

355b

Deep Black, RH Handle Grip

277001946

$17.88

400

Steering Cover

277001985

$61.16

440

Steering Arm

277002106

$8.25

465

Elastic Stop Nut M6, Brass

232561200

$4.03

470

Spacer

277001654

$13.09

501

Hex. Screw M6 X 40

207064060

$1.61

510

Stainless Flat Washer M6

234061600

$0.28

530

Ball Joint

277001180

$32.06

540

Steering Cable | Includes 540 to 540b

277002146

$110.42

545

Hex. Nut 1/4"-28

211100056

$0.64

550

Wiper Rod

277001582

$10.13

555

End Piece

277001583

$12.79

560

Rubber Washer

293830063

$1.73

570

Ring Halves

277001856

$11.31

580

Hexagonal Cap Screw M6 X35

250000399

$4.15

630

Ball Joint

277000775

$46.24

640

Hex Sems Screw M6X35

250000970

$2.00

690

Hexagonal Cap Screw M6 X35

250000399

$4.15

710

Steering Column Support

277002105

$46.24

720

Wear Ring

277002318

Unavailable

840

Hex. Screw M6 X 40

207164060

$3.15

845

Housing Nut Overmolded | Includes 2060 to 2060a

291004662

$1.85

850

Flat Washer M6.6 X 22

250200022

$2.15

860

Cable Boot

293720116

$4.49

870

Tie Wrap 142 mm

293750002

$1.01

880

Tie-Rap 180 mm

414115200

$0.10

895

Corrugated Sheath 22MM - 1250MM

276000520

$24.60

900

Cable Retainer

275500527

$2.68

905

Rope Guide

277002150

$0.87

3910

Hexagonal Cap Screw M6 X35

250000399

$4.15

3915

C Clamp

277002085

$8.25

3930

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.73

3935

Flat Washer M6, Stainless

234062600

$0.73

3940

Black, Cap

277000203

$8.58
