10- Electrical System

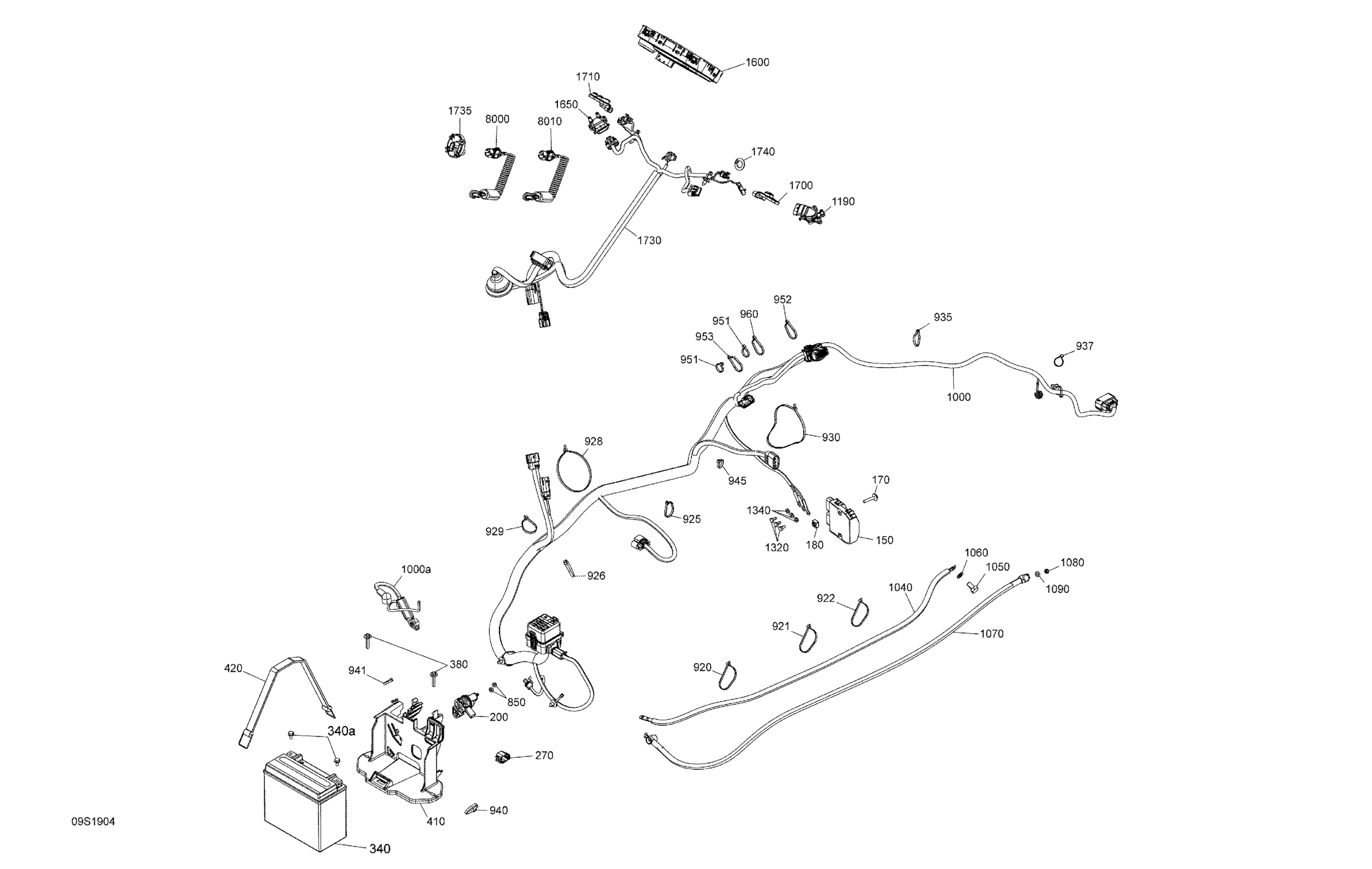

Sea-doo 001 - WAKE 155, 2019 10- Electrical System Diagram
#
150
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
170
Hex Screw SEMS M6X35, SS
250000969
$2.11
180
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
200
Starter Relay
278003012
$42.49
270
Connector Plug
710004904
$8.79
340
Battery 12 Volt 18AH
296000449
$92.28
340
Battery Ass'y, 18 Amperes | Brazil
515179099
Unavailable
340
Battery Ass'y, 18 Amperes | Australia
830201279
Unavailable
340
Battery Ass'y, 18 Amperes | Australia
830201282
Unavailable
340a
Battery Bolt Kit
250000282
$7.29
380
Hexagonal Cap Screw M6 X35
250000399
$4.44
410
Battery Support
278003671
$28.99
420
Strap
293850124
$20.99
850
Elastic Stop Nut M6, Brass
232561200
$4.23
920
Tie-Rap 180 mm
414115200
$0.11
921
Tie-Rap 180 mm
414115200
$0.11
922
Tie-Rap 180 mm
414115200
$0.11
925
Tie-Rap 180 mm
414115200
$0.11
926
Tie Wrap 368 mm
293750008
$1.04
928
Tie Wrap 368 mm
293750008
$1.04
929
Tie Wrap 368 mm
293750008
$1.04
930
Tie Wrap 368 mm
293750008
$1.04
935
Tie Wrap 368 mm
293750008
$1.04
937
Tie-Rap 180 mm
414115200
$0.11
940
Tie-Rap 180 mm
414115200
$0.11
941
Tie-Rap 180 mm
414115200
$0.11
945
Tie-Rap 180 mm
414115200
$0.11
951
Tie-Rap 180 mm
414115200
$0.11
952
Tie-Rap 180 mm
414115200
$0.11
953
Tie-Rap 180 mm
414115200
$0.11
960
Tie-Rap 180 mm
414115200
$0.11
1000>1000a
Wiring Harness Main | P-SE&M-130_P-STD&M-130
278003706
$649.99
1000a
Battery Cable
278003716
$71.99
1040
Battery Ground Cable
278003270
$41.49
1050
Hex. Screw M10 X 20, Scotch Grip
207302060
$4.02
1060
Flat Washer 10 mm, Stainless
234000600
$1.46
1070
Cable-Starter
278003370
$39.99
1080
Elastic Stop Nut M6, Brass
232561200
$4.23
1090
Stainless Flat Washer M6
234061600
$0.33
1190
LH Throttle Sensor
278002284
$119.99
1320
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1320
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
1340
Stainless Flat Washer M6
234061600
$0.33
1340
Stainless Flat Washer M6
234061600
$0.33
1600
LCD Gauge
278003580
$979.99
1650
Throttle Position Sensor
278002283
$119.99
1700
Switch LH Sport/Eco
278002768
$83.49
1710
Switch RH Mode/Set
278002602
$126.99
1730
Steering Harness Ass'y
278003558
$349.99
1735
Terminal Dess One-Wire | Except Model Europe
515178840
$83.49
1740
Safety Nut (DESS Switch)
278002963
$3.28
8000
Safety Lanyard Ass'y, Learning / RFID
278003401
$84.99
8010
Safety Lanyard Ass'y, RFID
278003400
$84.99
