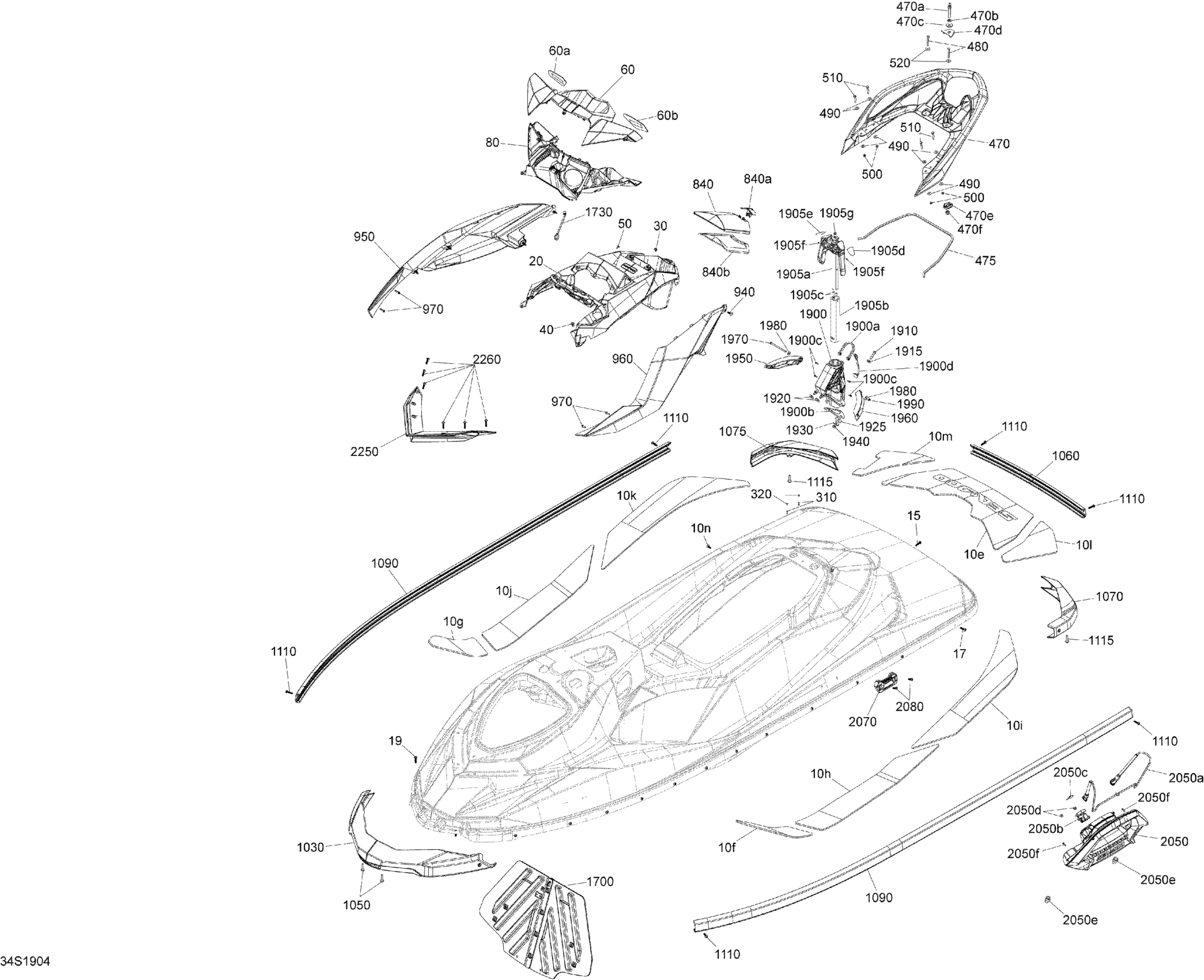

Sea-doo 001 - WAKE 155, 2019 09- Body Diagram
#
10e
Swim Platform Carpet
291003096
$88.99
10f
Front Carpet LH
291003058
$24.99
10g
Front Carpet RH
291003059
$24.99
10h
Front Center Carpet LH
291003060
$28.49
10i
Rear Center Carpet LH
291003329
$34.99
10j
Front Center Carpet RH
291003061
$28.49
10k
Rear Center Carpet RH
291003330
$34.99
10l
Rear Carpet LH
291003062
$20.49
10m
Rear Carpet RH
291003063
$20.49
10n
Black, Dart
293730011
$0.99
15
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
17
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
19
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
20
Console
291004276
$134.99
30
Rubber Bumper
293830005
$8.09
40
Pop Rivet 3/16"
293150123
$4.29
50
Pop Rivet 3/16
293150186
$2.09
60>60b
Bezzel Ass'y | Includes 60 TO 60b
291004747
$119.99
60a
Mirror RH, With Double-Face Tape
291003090
$48.49
60b
Mirror LH, With Double-Face Tape
291003091
$48.49
80
Deep Black, Mirror Support
291004271
$48.99
310
Rivet 1/8"
293150016
$0.40
320
Black, Snap Cap
293000014
$1.09
470>470f
Black, Rear Handle Ass'y
291004625
$142.99
470a
Stud Seat
291003877
$48.99
470b
Hex. Jam Nut M10
232100600
$2.22
470c
Flat Washer 10 mm, Stainless
234002600
$2.22
470d
Seat Stud Spacer
269002125
$8.19
470e
SEAT STUD SUPPORT - Call your local BRP dealership
269002126
$8.19
470f
Elastic Stop Nut M10, Brass
232501200
$2.64
475
Gasket 3000Mm Long
219704378
$26.49
480
Hex. Screw M6 X 50
207065060
$2.22
490
Flat Washer M6, Stainless
234062600
$0.77
500
Elastic Stop Nut M6, Brass
232561200
$4.23
510
Hex. Screw M6 X 40
207164060
$3.38
520
Flat Washer M6.6 X 22
250200022
$2.72
840>840b
Deep Black, Glove Door Ass'y | Includes 840 TO 840c
269502140
$65.99
840a
Black, Latch
264000164
$15.99
840b
Gasket
293250236
$41.49
940
Black, Dart
293730006
$0.99
950
Black, RH Cosmetic Panel
269502335
$204.99
960
Black, LH Cosmetic Panel
269502336
$194.99
970
Hex. Screw 10-14 X 7/8”
211000023
$3.59
1030
Front Bumper This part replaces 291005401.
291004277
$76.49
1050
Hexagonal Cap Screw M6 X35
250000399
$4.44
1060
Black, Side Bumper
291004451
$58.49
1070
Black, Corner Bumper This part replaces 291004152.
291004278
$33.99
1075
Black, Corner Bumper This part replaces 291004153.
291004279
$33.99
1090
Black, Side Bumper
291004451
$58.49
1110
Screw Torx M6.81 X 30
250001007
$2.54
1115
Hexagonal Cap Screw M6 X35
250000399
$4.44
1700
Divider Ass'y
291004572
$104.99
1730
Holding Strap
269502111
$18.49
1900>1900d
Support Sub-Ass'y | Includes 1900 TO 1900d
291002553
$294.99
1900a
Replacing Kit for Pylon Strap
295100740
$26.49
1900b
Seal
293250151
$10.99
1900c
Hex. Flange Screw K40 X 13
241141360
$0.67
1900d
Strap
269501299
$19.49
1905a
Molded Handle
291004766
$195.99
1905b
ALUMINUM POST - Call your local BRP dealership
291002642
Unavailable
1905c
Ball 1/4"
293350062
$2.69
1905d
Warning Decal Ski Post
219905276
$0.01
1905e
Warning Decal Ski Post
219905277
$0.01
1905f
Type "U" Metallic Drive Screw
293150167
$2.29
1905g
Bumper Plug, Black
291001519
$5.49
1910
Torx Screw M8 X 40, Stainless
250000452
$3.91
1915
Flat Washer M8.5 x 18
293050001
$3.07
1920
Flat Washer 8 mm, Stainless
234082600
$2.43
1925
Rubber Washer
293830037
$2.68
1930
Flat Washer 8 mm, Stainless
250200175
$3.06
1940
Hex. Elastic Nut M8 Brass
232581200
$2.22
1950
Lateral Arm LH
291002711
$33.99
1960
Lateral Arm RH
291002712
$33.99
1970
Hex. Screw M6 X 100
230060060
$7.41
1980
Flat Washer M6, Stainless
234062600
$0.77
1990
Elastic Stop Nut M6, Brass
232561200
$4.23
2050>2050f
Board Support Ass'y | Includes 2050 TO 2050f
295100735
$238.49
2050a
Elastic Rope Ass'y
291002979
$37.99
2050b
Latch
291002980
$28.99
2050c
Warning WAKE
219903228
Unavailable
2050d
Rubber Bumper
293830005
$8.09
2050e
Rubber Buffer
293830119
$18.49
2050f
Flange Torx Screw K40 X 16
250000287
$2.11
2070
Upper Anchorage
291003104
$16.49
2080
Torx Screw Plastite M6
250000466
$6.98
2250
Deep Black, Body Deflector
291004273
$26.99
2260
Screw Torx M6.81 X 30
250001007
$2.54
