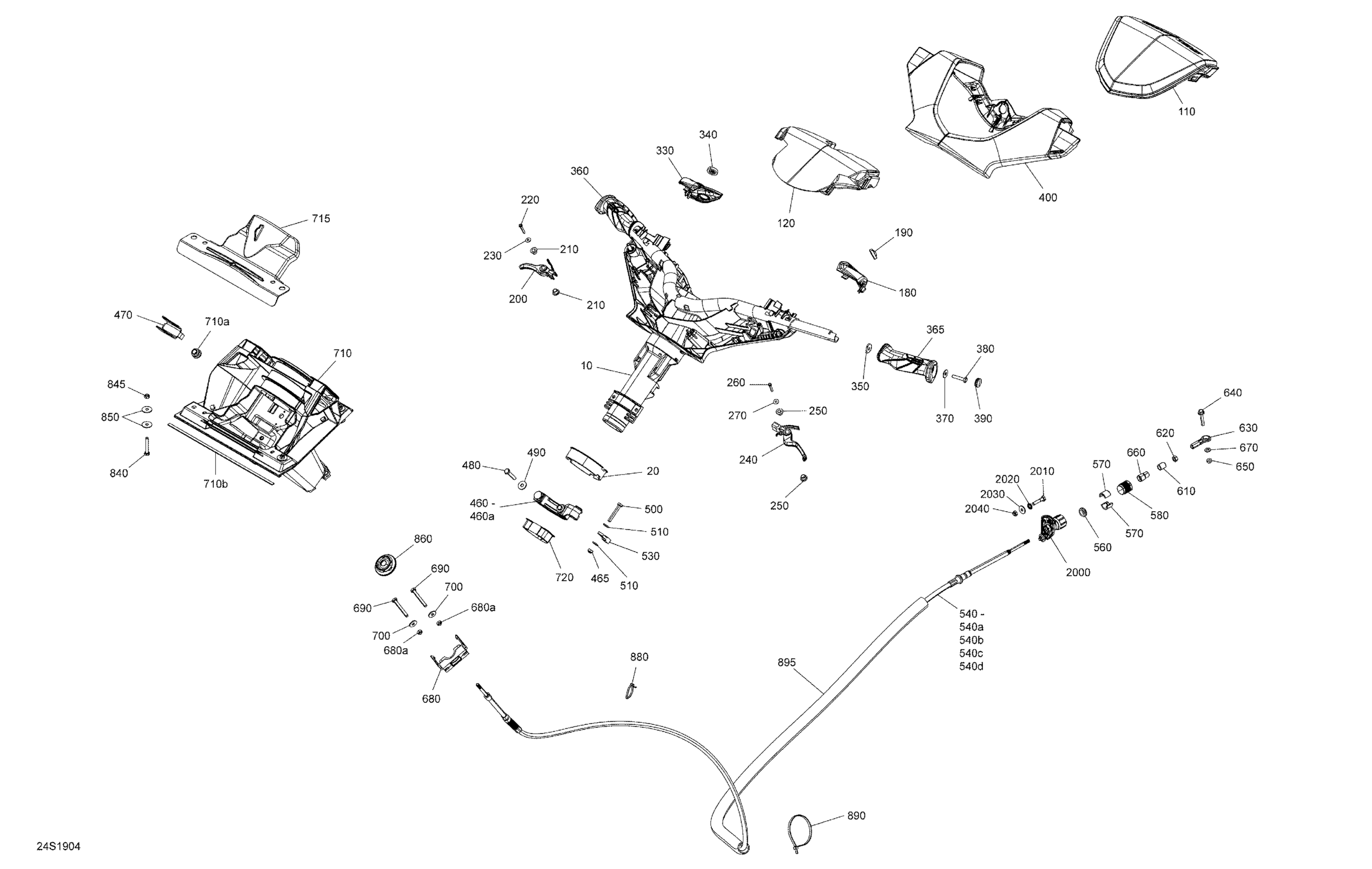

Sea-doo 001 - WAKE 155, 2019 07- Steering Diagram
#
10
Steering Column
277001963
$381.49
20
Wear Ring
277001653
$12.17
110
Black Steering Pad | Package SE, B-414 Metalic Blue Long Beach
277001904
$57.99
120
Handlebar Foam
277001921
$91.99
180
Housing Cover LH
277001860
$22.49
190
Red, Knob Switch
277001887
$9.69
200
Throttle Handle
277001944
$38.99
210
Bushing
293900091
$4.52
220
Hex. Flange Screw K40 X 25
241142560
$2.64
230
Flat Washer 4 mm, Stainless
234042600
$1.15
240
Reverse Handle
277001945
$43.99
250
Bushing
293900091
$4.52
260
Hex. Flange Screw K40 X 25
241142560
$2.64
270
Flat Washer 4 mm, Stainless
234042600
$1.15
330
Housing Cover RH
277001625
$19.99
340
Grey Knob Switch
277001888
$11.49
350
Insert Grip Handle
277001863
$8.83
360
Can-Am Red, RH Handle Grip
277002014
$20.99
365
Can-Am Red, LH Handle Grip
277002015
$20.99
370
Flat Washer M6, Stainless
234062600
$0.77
380
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
390
Black, Cap
277000203
$9.39
400
Steering Cover | IBR
277001969
$68.99
460
Support Ass'y | Includes 460 to 460b
277002179
$22.49
460a
Elastic Stop Nut M6, Brass
232561200
$4.23
465
Elastic Stop Nut M6, Brass
232561200
$4.23
470
Spacer
277001654
$15.99
480
Hex. Screw M6 X 35
207163560
$1.49
490
Flat Washer M6, Stainless
234062600
$0.77
500
Hex. Screw M6 X 40
207064060
$1.69
510
Stainless Flat Washer M6
234061600
$0.33
530
Ball Joint
277001180
$35.99
540
Steering Cable Ass'y | Includes 540 TO 540d
277001578
$211.99
540a
Ajustment Knob
277000782
$22.99
540b
Hex. Nut 1/4"-28
211100056
$0.69
540c
Wiper Rod
277001582
$11.11
540d
End Piece
277001583
$14.49
560
Rubber Washer
293830063
$1.90
570
Half Ring
277001527
$10.37
580
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
610
Wiper Rod
277001582
$11.11
620
Hex. Nut 1/4"-28
211100056
$0.69
630
Ball Joint
277000775
$51.99
640
Hex. Screw M6 X 35
207663560
$2.00
650
Elastic Stop Nut M6, Brass
232561200
$4.23
660
End Piece
277001583
$14.49
670
Stainless Flat Washer M6
234061600
$0.33
680
Thrust Support Ass'y
277001655
$28.99
680a
Elastic Stop Nut M6, Brass
232561200
$4.23
690
Hex. Screw M6 X 50
207165060
$0.92
700
Flat Washer M6, Stainless
234062600
$0.77
710
Support Ass'y | Includes 710 TO 710e
277001971
$114.99
710a
Cap
517302716
$4.69
710b
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
715
Deflector
293000116
$28.99
720
Wear Ring
277002318
$15.99
840
Hex. Screw M6 X 40
207164060
$3.38
845
Elastic Stop Nut M6, Brass
232561200
$4.23
850
Flat Washer M6.6 X 22
250200022
$2.72
860
Cable Grommet
293720090
$8.49
880
Tie-Rap 180 mm
414115200
$0.11
890
Tie Wrap 368 mm
293750008
$1.04
895
Shield Corrugated 22MM - 1100MM
276000470
$26.49
2000
Cable Adaptor Ass'y
277001881
$19.99
2010
Hex. Screw M6 X 30
207063060
$1.89
2020
Sealing Washer
250200114
$4.44
2030
Flat Washer M6, Stainless
234062600
$0.77
2040
Elastic Stop Nut M6, Brass
232561200
$4.23
