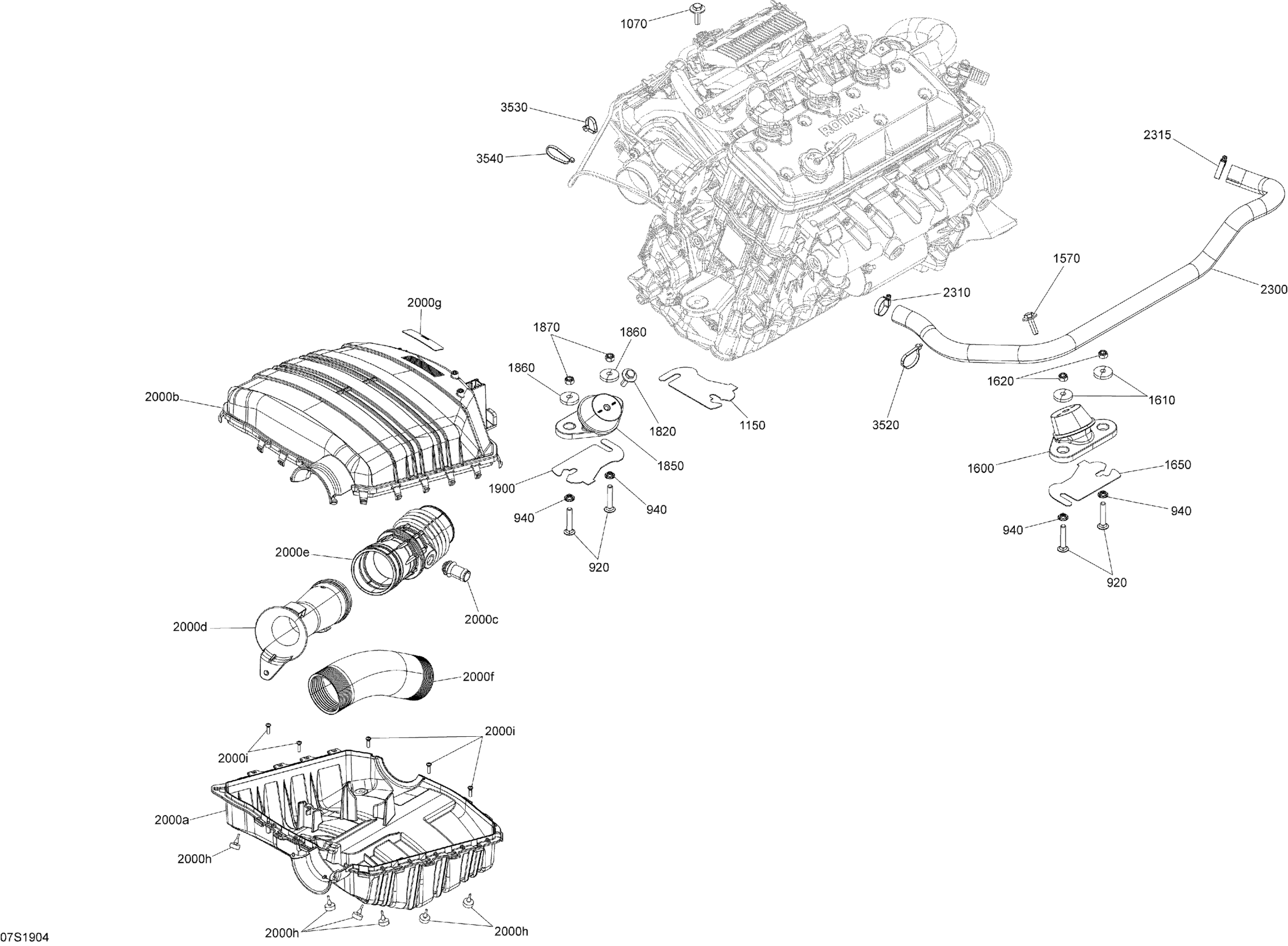

Sea-doo 001 - WAKE 155, 2019 01- Engine Diagram
#
Description
Price
920
Carriage Bolt M8 X 45 | Package STD
207784560
$3.91
940
Push Nut
270001008
$0.95
1070
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1150
Shim 1.3 mm
270000762
$12.99
1570
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1600
Engine Support Ass'y
270001081
$109.99
1610
Cone Washer
250200018
$5.61
1620
Hex. Elastic Nut M8 Brass
232581200
$2.22
1650
Shim 1.3 mm
270000762
$12.99
1820
Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a
250000933
$2.85
1850
Engine Support Ass'y
270001081
$109.99
1860
Cone Washer
250200018
$5.61
1870
Hex. Elastic Nut M8 Brass
232581200
$2.22
1900
Shim 1.3 mm
270000762
$12.99
2000a
Airbox Base
273000354
$57.99
2000b
Airbox Cover
273000371
$73.99
2000c
Breather Valve
273000234
$14.49
2000d
Intake Hose
273000358
$22.49
2000e
Hose Connector
273000292
$52.99
2000f
Air Silencer Hose
273000290
$22.49
2000g
Air Silencer Notice Decal
219903177
Unavailable
2000h
Rubber Stopper
708000759
$4.19
2000i
Flange Torx Screw K40 X 16
250000287
$2.11
2300
Formed Hose
270000949
$47.99
2310
Gear Clamp
293650284
$4.44
2315
Gear Clamp
293650284
$4.44
3520
Tie Wrap 368 mm
293750008
$1.04
3530
Tie-Rap 180 mm
414115200
$0.11
3540
Tie-Rap 180 mm
414115200
$0.11
