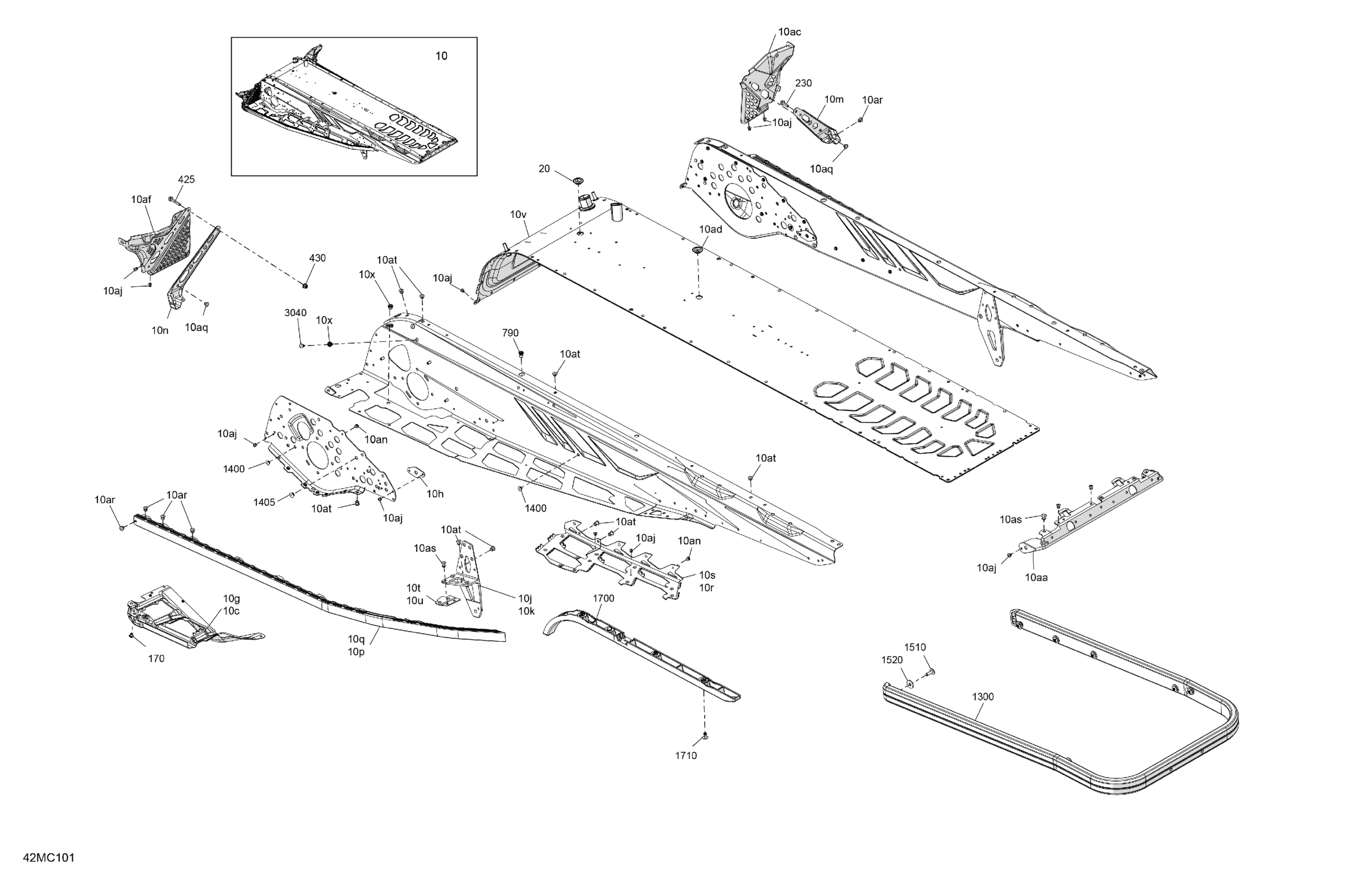

Ski-Doo 001 - TUNDRA SPORT 600 EFI - North America, 2023 06- Frame - System - Rear Section Diagram

Description

Price

Chassis Tunnel Module 146 | Includes 10 to 10a39

415130869

$3.00

10c

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10g

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10h

Reinforcement Plate

518326647

$4.69

10j

LH Rear Suspension Support

518334390

$45.99

10k

RH Rear Suspension Support

518334391

$94.99

10m

Stirrup Reinforcement

518334507

$21.99

10n

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10p

RH Roller

518328451

$194.99

10q

LH Roller

518328452

$194.99

10r

RH Central Tunnel Reinforcement

518331564

$35.99

10s

LH Central Tunnel Reinforcement

518331565

$35.99

10t

LH Reinforcement Plate

518329088

$3.39

10u

RH Reinforcement Plate

518329089

$4.59

10v

Radiator Tunnel 146

518334489

$739.99

10x

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10aa

Rear Cap

518328990

$22.49

10ac

RH Footrest

518334509

$22.49

10ad

Black, Plug

293730052

$9.19

10af

LH Foot Protector

518331559

$23.99

10aj

Rivet Avibulb 3/16

293150203

$2.09

10an

Henrob Rivet

293150245

$1.69

10aq

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10ar

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10as

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10at

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Black, Hitch Bumper Black 146

518329797

$127.49

1400

Full Moon Dart 8 mm

293730041

$2.21

1405

Full Moon Dart 10 mm

293730059

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
