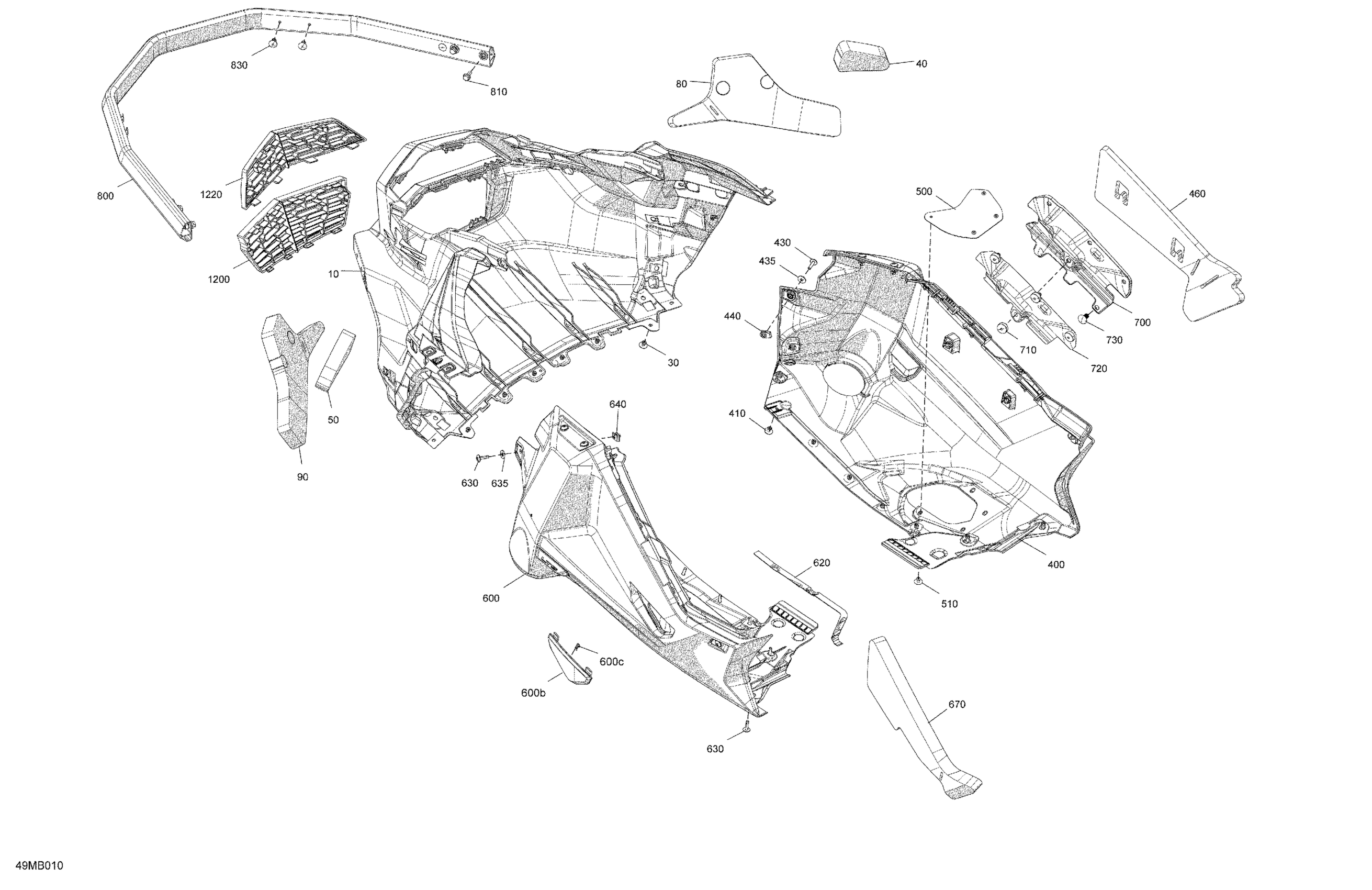

Ski-Doo TUNDRA 600 EFI - SPORT - 2022 Body - Bottom Pan Diagram

#

Description
Price

10

Deep Black, Front Bottom Pan

502007725

$109.99

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH Upper Front Bottom Pan Foam

502007937

$2.29

50

LH Upper Front Bottom Pan Foam

502007938

$2.29

80

RH Front Lower Bottom Pan Foam

502007941

$4.69

90

LH Front Lower Bottom Pan Foam

502007942

$4.69

400

RH Bottom Pan

502007882

$93.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

435

Washer

517307442

$1.48

440

Panel Nut M5 X 0.8

250000958

$4.23

460

RH Rear Bottom Pan Foam

502007944

$14.49

500

Plate

502007868

$2.19

510

Pop Rivet 3/16"

293150103

$0.55

600

Deep Black, LH Bottom Pan | Includes 600 to 600c

502007884

$93.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Torx Truss M5 X 20

250000586

$4.44

635

Washer

517307442

$1.48

640

Panel Nut M5 X 0.8

250000958

$4.23

670

LH Rear Bottom Pan Foam

502007946

$14.49

700

Heat Shield

502008087

$7.09

710

Stopper

502008149

$1.99

720

Reflective Sheet

502008156

$4.79

730

Black Dart

293730010

$0.99

800

Front Bumper

502008079

$105.99

810

Hex. Flange Screw M6 X 16

207661644

$0.74

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99
