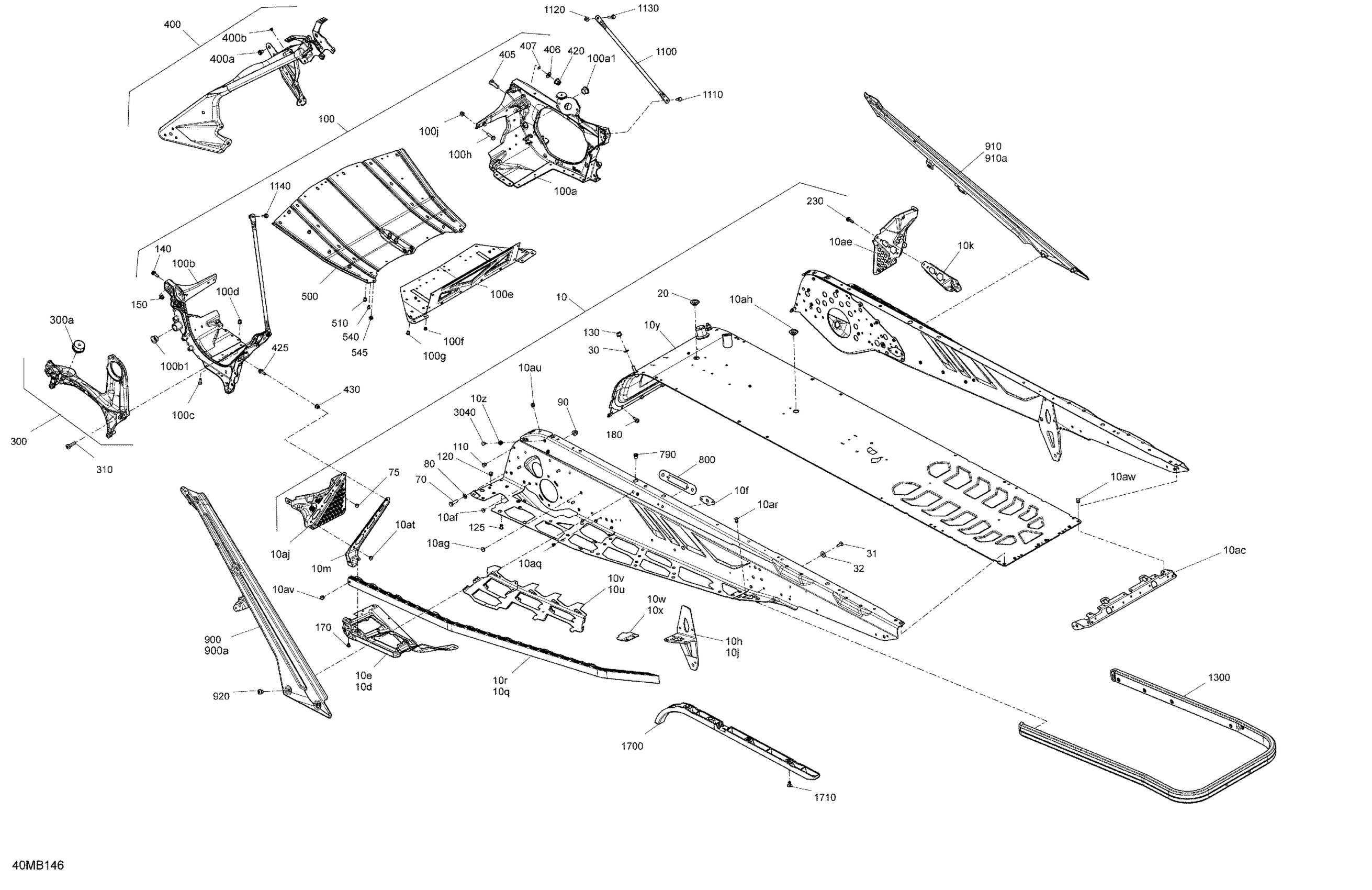

Ski-Doo TUNDRA 600 EFI - SPORT - 2022 Frame - System Diagram

Chassis Tunnel Module 146" | Includes 10 to 10aw

415130489

$3,946.12

Deep Black, RH Footrest Reinforcement

518332803

$79.97

Deep Black, LH Footrest Reinforcement

518332802

$16.89

Reinforcement Plate

518326647

$4.34

LH Suspension Bracket

518328467

$43.05

RH Rear Suspension Support

518334391

$96.12

Stirrup Reinforcement

518331253

$18.43

Deep Black, LH Chassis Reinforcement

518332924

$18.43

RH Roller

518328451

$180.74

LH Roller

518328452

$180.74

RH Central Tunnel Reinforcement

518331564

$33.05

LH Central Tunnel Reinforcement

518331565

$33.05

LH Reinforcement Plate

518329088

$3.08

RH Reinforcement Plate

518329089

$4.22

Radiator Tunnel 146

518334489

$692.28

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Rear Cap

518328990

$20.74

RH Footrest

518330691

$20.74

Full Moon Dart 8 mm

293730041

$2.12

Full Moon Dart 10 mm

293730059

$4.42

Black, Plug

293730052

$6.37

LH Foot Protector

518331559

$23.82

Rivet Avibulb 3/16

293150203

$0.29

Rivet

293150183

$2.06

Hemlock Rivet, 6.5 mm

293150096

$3.17

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

Flat Washer 8 mm

234081410

$0.69

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11

Hex Screw M8 X 30

250000942

$0.92

Hemlock Rivet, 6.5 mm

293150096

$3.17

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Engine Chassis Module Ass'y | Includes 100 to 100j

518332690

$609.99

RH Member Ass'y | Includes 100a to 100a3

518332687

$208.43

Leg Bushing

505072690

$5.92

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

Leg Bushing

505072690

$5.92

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Bottom Plate

518332716

$34.58

Rivet Avibulb 3/16

293150203

$0.29

Insert M5 X 0.8

293450268

$1.95

Hex. Flange Screw M6 X 25

250000945

$3.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Hemlock Rivet, 6.4 mm

293150174

$6.43

Hemlock Rivet 6.5 mm

293150120

$7.23

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662046

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Insert M5 - 0.8

293450267

$4.22

Hex. Flange Screw M6 X 16

207661646

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

Vibration Damper

512061516

$57.66

Screw-Pan HD.Torx M8X30

250001060

$0.65

Chassis Suspension Module | Includes 400 to 400n

518335307

$363.82

Insert M5 X 0.8

293450268

$1.95

Rivet Avibulb 3/16

293150203

$0.29

Screw Hex M10 X 30

250001148

$1.66

Flat Washer 10 mm

234001410

$0.98

O-Ring

505072448

$2.25

Hex. Flange Elastic Nut M10

250100165

$0.70

Hex. Flange Screw M6 X 20

207562056

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Front Bottom Plate

518331615

$29.97

Insert M5 X 0.8

293450268

$1.95

Avex Rivet

390909100

$0.29

Rivet 6,4 mm

293150173

$3.38

Insert

293450278

$4.09

Member Fixation Plate

518329480

$10.03

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$108.43

LH Rear Diagonal Cross Member

518333356

$108.43

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$108.43

RH Rear Diagonal Cross Member

518332559

$108.43

Pan Head Torx Screw M8 X 12

250000887

$1.56

Upper Colomn Support

518329974

$20.74

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662556

$3.61

Hex. Flange Screw M6 X 20

207662046

$1.74

Black, Hitch Bumper Black 146

518329797

$129.99

Front Protector

518329982

$17.66

Pop Rivet 3/16”

293150108

$1.23

Dart

293730079

$1.92
