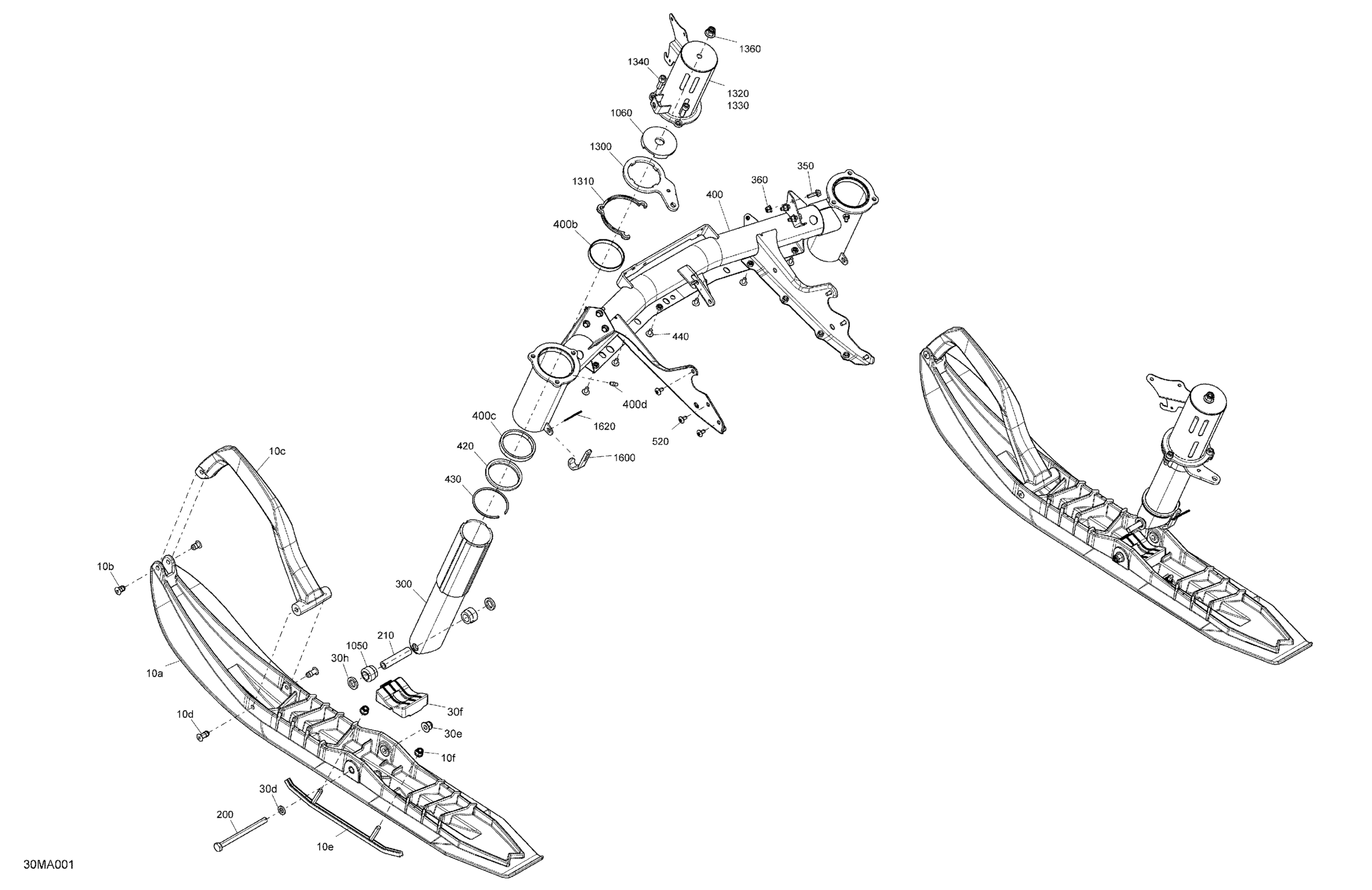

Ski-Doo TUNDRA 600 EFI - SPORT - 2021 Suspension - Front Diagram

#

Description
Price

10a

Black, Ski

505073227

$170.12

10b

Retainer 17mm long

505071812

$4.30

10c

Black, Handle

505072976

$34.30

10d

Retainer 23mm Long

505072133

$4.88

10e

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

10f

Hex. Flange Elastic Nut M8

233281414

$1.31

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

210

Ski Axle

505073209

$12.31

300

Ski Leg

505073200

$281.31

350

Hex. Flange Screw M6 X 20

207662046

$2.00

360

Elastic Flange Nut M6 X 1.0

233261416

$2.00

400

S2 Module Ass'y | Includes 400 to 400d

505075090

$461.91

400b

Upper Cushion

414803100

$8.16

400c

Lower Cushion

414803200

$11.36

400d

Grease Fitting

408200700

$3.21

420

Seal Oil

505072696

$44.75

430

Circlip

505072698

$12.51

440

Torx Truss Screw M6 X 12

250000767

$1.91

520

Torx Truss Screw M6 X 12

250000767

$1.91

1050

Cushion

572034500

$9.69

1060

Stopper

570025800

$12.27

1300

Steering Arm

505074801

$124.60

1310

Spacer

505073983

$23.85

1320

LH Suspension Cover

505074802

$59.67

1330

RH Suspension Cover

505074808

$59.67

1340

Socket Head Screw M8 X 20

205082044

$1.06

1360

Hex. Flange Elastic Nut M10

233201414

$1.45

1600

Clamp

505074882

$3.88

1620

Spring Cotter 2 Din 11024 Zn

505073113

$2.01

30d

Washer

503192496

$0.73

30e

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

30f

Ski Stopper

505072594

$17.13

30h

Spacer

505072579

$7.36
